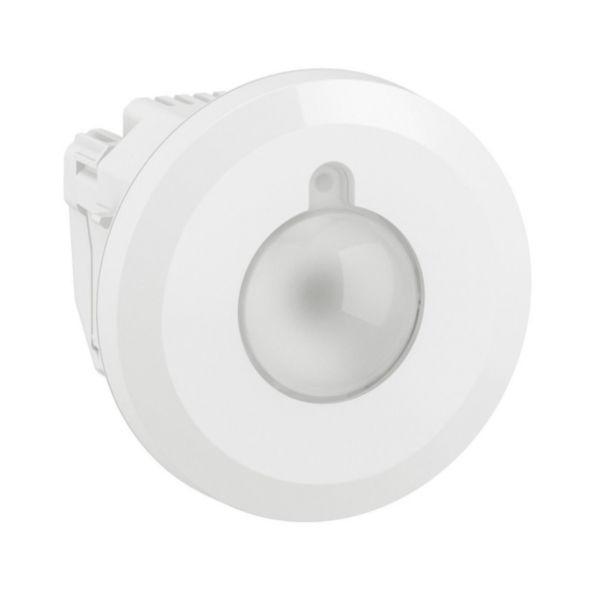

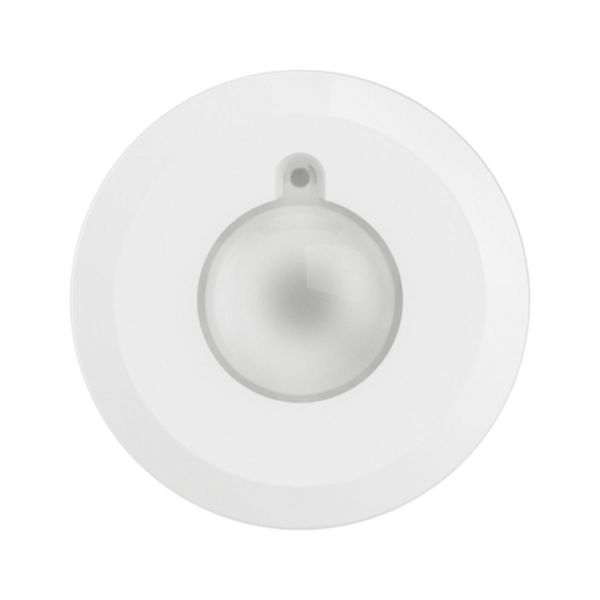

Name: Light Up- Corridor 3 areas DALI detector
SKU: 048555

Light Up presence detector. DALI control of 3 groups (corridor/window side + ON/OFF). Presence and brightness detection for switching on and off.

Compare You can only compare 4 products, you must remove 1 to add this one

Light Up presence detector. DALI control of 3 groups (corridor/window side + ON/OFF). Presence and brightness detection for switching on and off.

Configuration via smartphone (without gateway)
High-performance detection with masking lens for optimum adjustment of the detection field
Manual override via wired or wireless / batteryless pushbutton
Matte finish for optimum ceiling integration
Manual override via wired or wireless / batteryless pushbutton

Wireless connectivity: makes it easy to configure the detector and install peripherals (push-button, connected socket)

High-performance detection with masking lens for optimum adjustment of the detection field

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Other bus systems	Zigbee
Radio frequency bidirectional	Yes
Model	Presence detector
Mounting method	Flush-mounted
Suitable for ceiling mounting	Yes
Material	Plastic
Material quality	Thermoplastic
Surface finishing	Matt
Colour	White
RAL-number (similar)	9003
Transparent	No
With bus connection	No
Substation input	Yes
Creep-under protection	No
Operation mode switch	No
Animal zone	No
Staircase light controller	Yes
Response value luminosity adjustable	Yes
Teach-function for response value luminosity	Yes
DALI-2 certified	Yes
Optimum mounting height	2.5 m
Diameter reach on floor	12 m
Detection angle horizontal (Min-Max)	0-360 °
Number of channels	64
Min. switch-on time	15 s

Max. duty cycle	59 min
Width	83 mm
Height	83.2 mm
Depth	83 mm
Diameter	83 mm
Built-in depth	59.3 mm
Built-in diameter	68 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	-10-30 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	AC
Mandatory neutral	Yes
Halogen free	Yes
Connection type	Screwed terminal
Addressable	Yes
Contains Batteries and/or Accumulator	No
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Connected object	Yes
Operating method	Zigbee , Phase cut-on
Application store for download	App Store , Google Play Store
With voice command	No
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	No
Application name	Legrand Close-Up
Product use function	Energy and lighting management
Programming way	Web software
