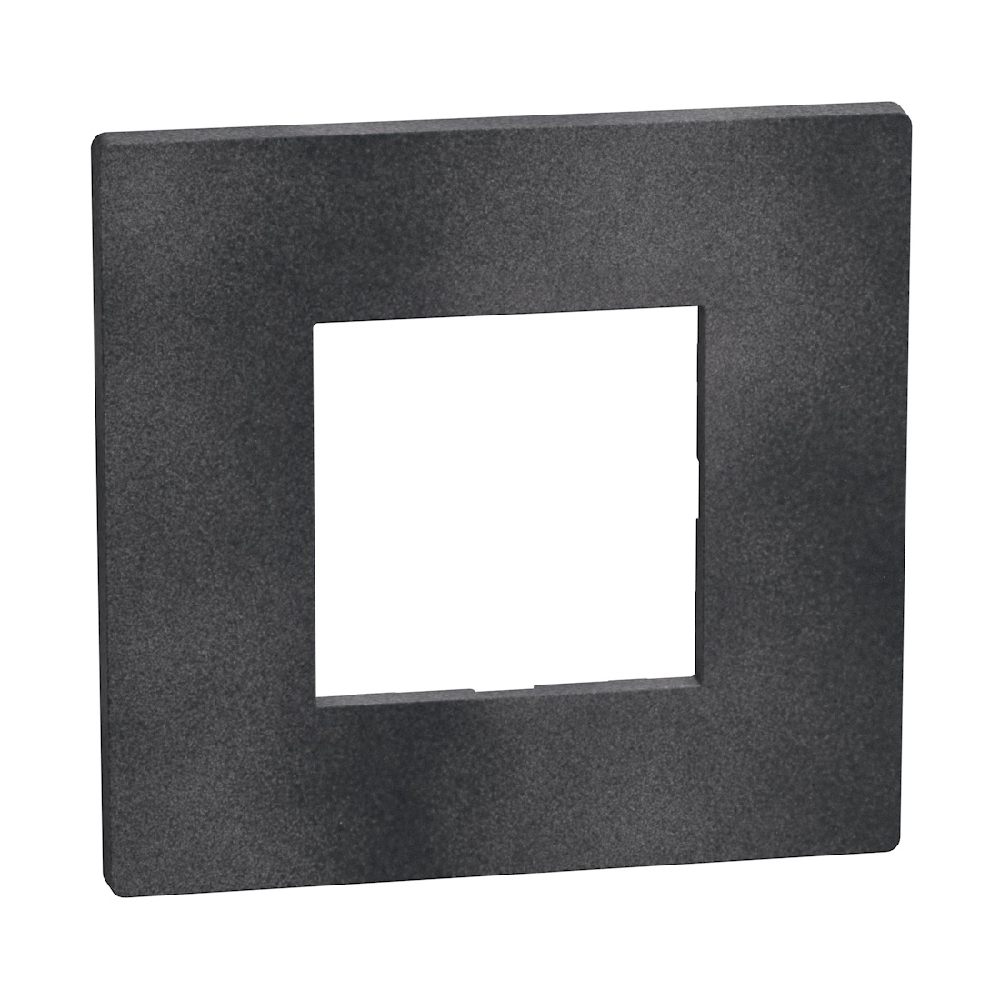

Light Now - Coverplate 2 modulos dark grey - Flush-Mounted Installation - Thermoplastic Halogen Free - Matt Lacquered Finish

Light Now Bticino

Light Now - Coverplate 2 modulos dark grey - Flush-Mounted Installation - Thermoplastic Halogen Free - Matt Lacquered Finish

REF. BT-YA4802DS EAN. 8005543752333
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Monolithic minimal design with precise detailing, crafted from halogen-free thermoplastic and finished in matt lacquer for enhanced durability.
  • Flexible floating frame ensures perfect alignment and fitting, concealing wall defects and external collars in flush-mounted and plasterboard installations.
  • Accommodates 2 horizontal modules, supporting standard domestic switching devices with a compact footprint of 95x90x8.5mm.
  • Distinctive dark grey colour (RAL 9004), achieved with water-based paint on recycled plastic, offering a long-lasting and unique aesthetic inspired by the beauty of imperfection.
  • 100% plastic-free packaging utilising water-based paints and ecological glues, with paper flowpack and digital printing for improved product identification and sustainability.
Recommendation / Restriction
  • Indoor use only

The product's benefits

Installation
  • The Light Now cover plate is equipped with a flexible frame, placed on the back of the plate, free to move on the four corners, ensuring an optimal installation.
Avantages
  • This Light Now coverplate, takes part in a filed collection of 9 finishes and has a sustainable CMF apporach. With its modern shape and floating frame, it provides perfect alignment to the wall, ensuring a perfect wall-flush
  • Effects: Celebrating the beauty of imperfection a suggestive layer that animates a perfectly flat surface. The result is distinctive, a plaque with an identity that, depending on the context, may appear to be made of metal, resin, or antiqued.
  • Dark Grey: A water-based, lightly pigmented paint applied in minimal quantities on a recycled plastic base. The result is long-lasting and distinctive

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
RAL-number (similar) 9004
Transparent Yes
With hinged lid No
Degree of protection (IP) Other
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 95 mm
Height 90 mm
Depth 8.5 mm
Built-in width 95 mm
Built-in height 90 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
IDP001875_01-EN.pdf pdf (1.78 Mo)
3 documents
PEP
Agreement
AENOR-030/002655 (0.54 Mo)
Agreement
