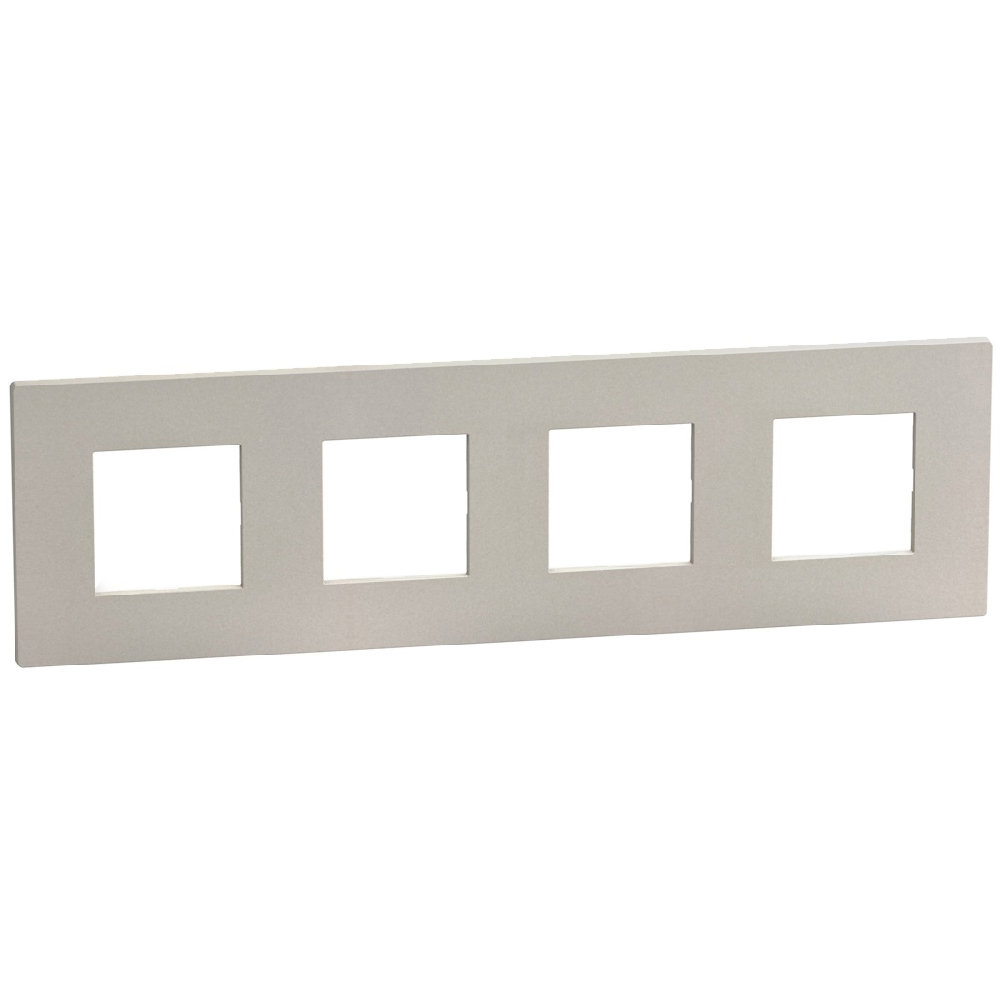

Light Now - Coverp. 2x4modules 71mm sand stone - Flush-mounted thermoplastic - IK04 impact resistance - Snap fastening

Light Now Bticino

Light Now - Coverp. 2x4modules 71mm sand stone - Flush-mounted thermoplastic - IK04 impact resistance - Snap fastening

REF. YA4802M4GS EAN. 8005543754894
The Light Now coverplate features a flat, monolithic 2x4m 71mm module in Sand Stone finish. Durable thermoplastic construction ensures reliable flush-mounted installation and perfect wall alignment for demanding architectural environments.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Light Now coverplate features a flat, monolithic 2x4m 71mm module in Sand Stone finish. Durable thermoplastic construction ensures reliable flush-mounted installation and perfect wall alignment for demanding architectural environments.

Product characteristics
  • Monolithic minimal design with precise detailing, constructed from halogen-free thermoplastic for enhanced durability and safety.
  • Floating frame ensures perfect alignment and compensates for wall irregularities, supporting flush-mounted installation and concealing external collars.
  • Accommodates 2x4 modules (71mm pitch), supporting up to 8 horizontal modules for flexible device configuration.
  • Sand Stone finish with matt lacquered surface, RAL 1000 gray, offers discreet integration and tactile appeal for modern interiors.
  • 100% plastic-free packaging with water-based paint and ecological glues, featuring digital printing for easy product identification.
Recommendation / Restriction
  • Indoor use only

The product's benefits

Installation
  • The Light Now cover plate is equipped with a flexible frame, placed on the back of the plate, free to move on the four corners, ensuring an optimal installation.
Usage
  • Pure design: A minimalistic and pure design where every detail becomes the protagonist. Perfect alignment between cover plates and axial controls. Slightly rounded edges.
Avantages
  • This Light Now coverplate, takes part in a filed collection of 9 finishes and has a sustainable CMF apporach. With its modern shape and floating frame, it provides perfect alignment to the wall, ensuring a perfect wall-flush
  • Effects: A muted tone that respond to a long-term interior trends. It's transversal on all types of spaces and has a texture that is suggestive both to the eye and to the touch
  • Sand Stone: it's inspired by the elements present in nature, such as sand, stones or certain materials used for construction. A water-based paint with witch little spheres for the texture, with a bio transparent based on the fermentation of bio masses, to achieve an interesting aesthetic effect and a circular story

Technical characteristics

Number of units 4
Mounting direction Horizontal and vertical
Number of units horizontal 4
Number of units vertical 1
Number of modules horizontal (module system) 8
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
RAL-number (similar) 1000
Transparent Yes
With hinged lid No
Degree of protection (IP) Other
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 308 mm
Height 90 mm
Depth 8.5 mm
Built-in width 308 mm
Built-in height 90 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
IDP001875_01-EN.pdf pdf (1.78 Mo)
