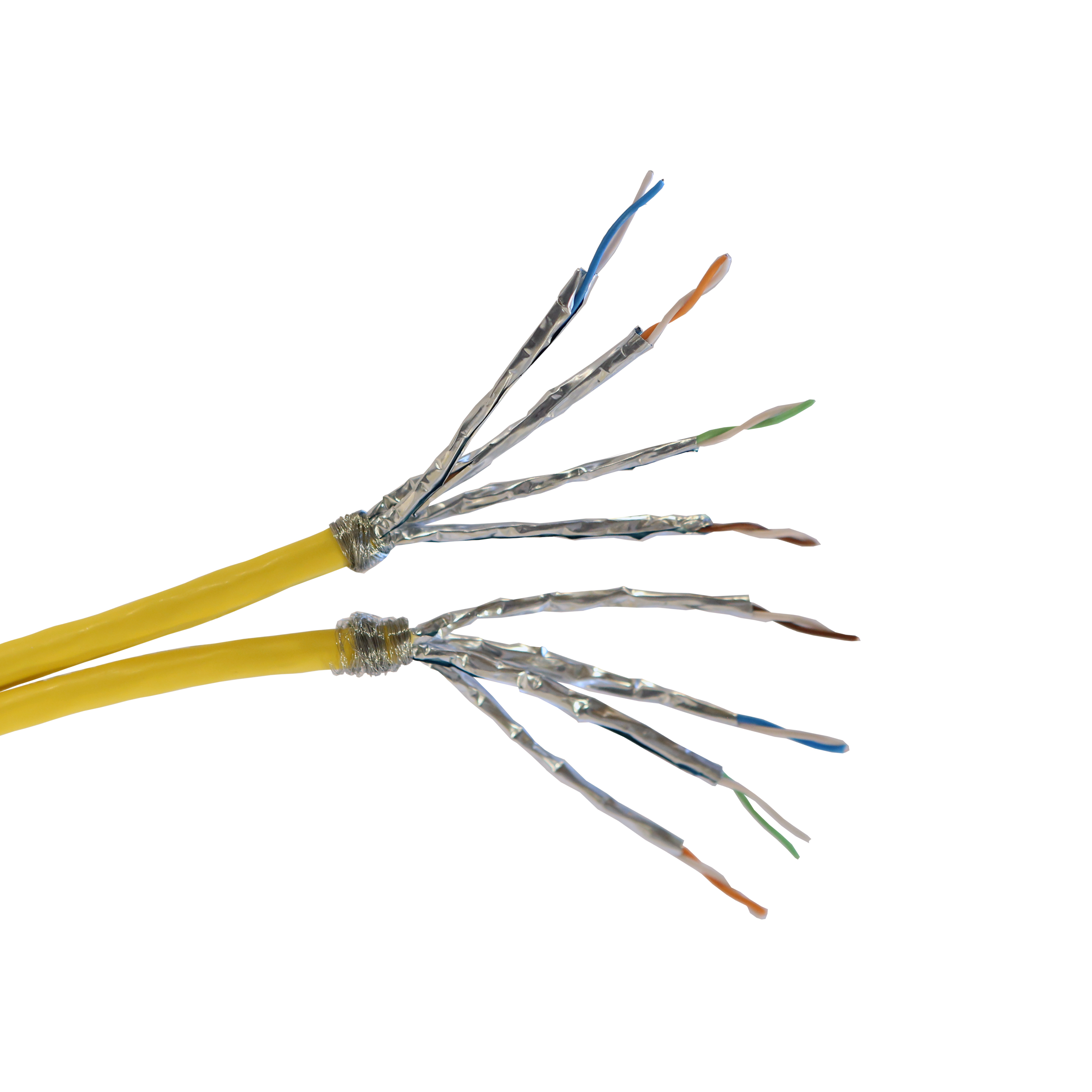

LCS³ - Cable category 7 S/FTP - 2x4 pairs solid copper - Lszh - Euroclass Dca fire rated - 500m

LCS³ Legrand

LCS³ - Cable category 7 S/FTP - 2x4 pairs solid copper - Lszh - Euroclass Dca fire rated - 500m

REF. 032779A EAN. 3414973206692
This Category 7 S/FTP cable features solid copper conductors and lszh sheathing for fire safety. Double shielding ensures superior EMI protection, while Dca classification and halogen-free materials provide safety for high-performance data.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This Category 7 S/FTP cable features solid copper conductors and lszh sheathing for fire safety. Double shielding ensures superior EMI protection, while Dca classification and halogen-free materials provide safety for high-performance data.

Product characteristics
  • Category 6A F/FTP cable supports up to 10Gbps data rates with enhanced shielding for superior EMI protection.
  • Features 4 twisted pairs of solid bare copper conductors (AWG 23) for optimal signal integrity.
  • Constructed with low smoke zero halogen (lszh) materials per EN IEC 61034-2 and EN IEC 60754-1/2, minimizing smoke and halogen emission under fire conditions.
  • Certified Euroclass Dca (EN 13501-6) with S2, D2, a1 ratings, ensuring reliable fire reaction and compliance with independent laboratory standards.
  • Compatible with 802.3bt PoE++ applications and compliant with ISO/IEC 14763-2 and EN 50174-2:2018 installation standards.
Recommendation / Restriction
  • Compliant with ISO/IEC 11801 and ansi/tia 568 standards

Technical characteristics

Cable type S/FTP
Duplex No
Conductor material Copper
Conductor surface Bare
Diameter conductor 0.56 mm
Nominal cross section conductor 0.25 mm²
AWG size 23
Conductor category Class 1 = solid
Number of cores 16
Number of stranding elements 8
Stranding element Pairs
Material core insulation Other
Specification core insulation Polyethylene (PE)
Core identification according to HD 308 S2 No
Core identification Colour
Screen over stranding element Foil
Stranding Bundle
Screen over stranding Braiding
Longitudinal water blocking cable No
Radial water blocking cable Yes
Suitable for underground installation No
Approved type of underground installation Other
Protective sheath None
Material outer sheath Other
Specification material outer sheath Polyethylene (PE)
Colour outer sheath Yellow
Armouring/reinforcement None
Cable geometry Round
Flame retardant according to IEC 60332-1-2 Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R) No
Flame retardant according to IEC 60332-3-22 (Cat A) No
Flame retardant according to IEC 60332-3-23 (Cat B) No
Flame retardant according to IEC 60332-3-24 (Cat C) No
Flame retardant according to IEC 60332-3-25 (Cat D) No
Low smoke according to EN IEC 61034-2 Yes
Halogen free according to EN IEC 60754-1 Yes
Halogen free according to EN IEC 60754-2 Yes
Halogen free according to EN IEC 60754-3 No
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production S2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles D2
Reaction-to-fire according to EN 13501-6: Acidity a1
Circuit integrity according to IEC 60331-23 No
Oil resistant according to EN IEC 60811-404 No
Outer diameter approximate 7.7 mm
Min. permitted bending radius, moving application with forced guidance 62 mm
Min. permitted bending radius, moving application/free movement 65 mm
Min. permitted bending radius, stationary application/permanent installation 31 mm
Permitted cable outer temperature during assembling/handling (Min-Max) 0-50 °C
Permitted cable outer temperature after assembling without vibration (Min-Max) -20-60 °C
Category 7
NVP value 79 %
Certified for shipboard application No
Suitable as telephone cable Yes
Suitable as computer data cable Yes
Suitable as signalling cable No
Suitable for use as security alarm cable No
Drain wire No
With rip cord No
Cable width approximate 15.4 mm
Cable height approximate 7.7 mm
Weight 122 kg/km
Characteristic impedance 100 Ohm
Compatible with Grade2TV according to XP-C 90-483 No
Compatible with Grade3TV according to XP-C 90-483 No
Storage temperature (Min-Max) -20-60 °C
RAL-number 1018
