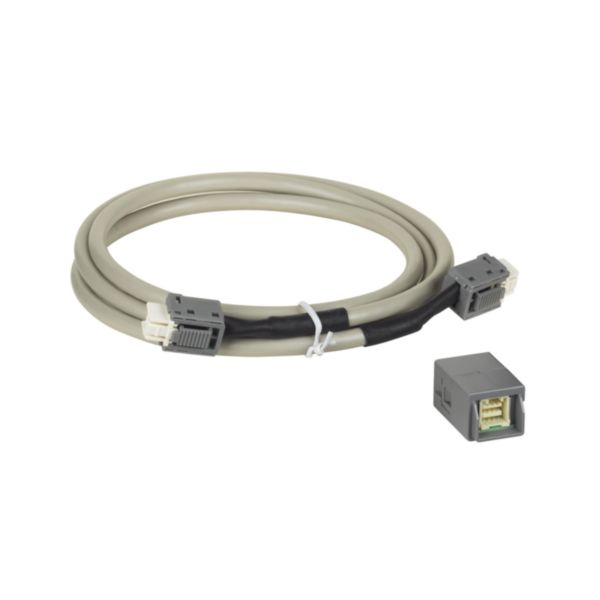

Name: Kit extender for flexible open current transformers (cable+ferrule) 1 metre
SKU: 414915

Kit extender for flexible open current transformers (cable+ferrule) 1 metre

EMS CX³ LEGRAND

Kit extender for flexible open current transformers (cable+ferrule) 1 metre

REF. 414915 EAN. 3414971940536

Compare You can only compare 4 products, you must remove 1 to add this one

CX³ energy management system - Conform to IEC/EN 61131 - 2 (Programmable controllers) - CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely - All the modules of the system are equipped with two specific communication ports : one at the backside (for communication rail) and one underneath (for communication patch cords) - Power supply with specific module Cat.No 4 149 45 - Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E - Catalogue (giving also access to a 30 - day trial version of Energy Management Software Cat.No 4 149 38/39)
Extension kits for Rogowski coils - Supplied with connectors - Lenght : 1 m

Cable type	Other
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Diameter conductor	0.422 mm
Nominal cross section conductor	0.14 mm²
AWG size	Other
Conductor category	Class 5 = flexible
Number of cores	6
Number of stranding elements	7
Stranding element	No
Material core insulation	Rubber
Specification core insulation	Other
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	Braiding
Stranding	Bundle
Screen over stranding	Braiding
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	No
Approved type of underground installation	Other
Protective sheath	Other
Material outer sheath	Rubber
Specification material outer sheath	Other
Colour outer sheath	Grey

Number of sheath layers	1
Armouring/reinforcement	None
Material armouring	Other
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Halogen free according to EN IEC 60754-1	Yes
Halogen free according to EN IEC 60754-2	Yes
Reaction-to-fire according to EN 13501-6: Class	Eca
Outer diameter approximate	5 mm
Min. permitted bending radius, moving application/free movement	75 mm
Min. permitted bending radius, stationary application/permanent installation	30 mm
Permitted cable outer temperature during assembling/handling (Min-Max)	-5-70 °C
Permitted cable outer temperature after assembling without vibration (Min-Max)	-40-80 °C
Suitable as telephone cable	No
Suitable as computer data cable	No
Suitable as signalling cable	Yes
Suitable for use as security alarm cable	No
Drain wire	No
With rip cord	No
Cable width approximate	5 mm
Cable height approximate	5 mm
Weight	42 kg/km
With rodent protection	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No

Kit extender for flexible open current transformers (cable+ferrule) 1 metre
