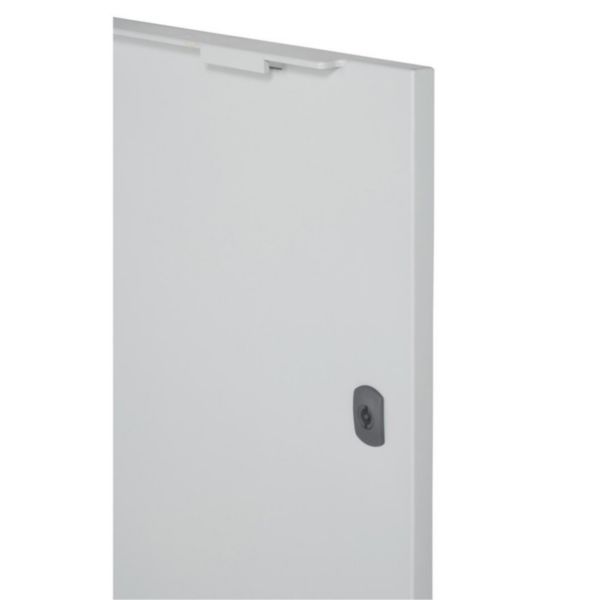

Internal doors - for Marina enclosures 1800x800 mm

Name: Internal doors - for Marina enclosures 1800x800 mm
SKU: 036368

LEGRAND

REF. 036368 EAN. 3245060363680

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for Marina enclosures
Internal doors RAL 7035 - IP xxB steel. Textured polyester coated steel - Double bar lock - Take key barrels and other knockouts - Distance between enclosure door and internal door 78 mm - Right or Left opening, handle included - For cabinets Height x Width : 1800 x 800 mm - Door dim. Height x Width : 1680 x 675 mm - Door usable dim. Height x Width : 1600 x 580 mm

Model	Inner door
Version as glazed door	No
Version as door for disconnecting switch interlocking	No
Width	675 mm
Height	1680 mm
Depth	17.5 mm

1 document

Select all

Instruction Use

LE07487AA-02.pdf pdf (0.32 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0425.pdf pdf (0.11 Mo)
