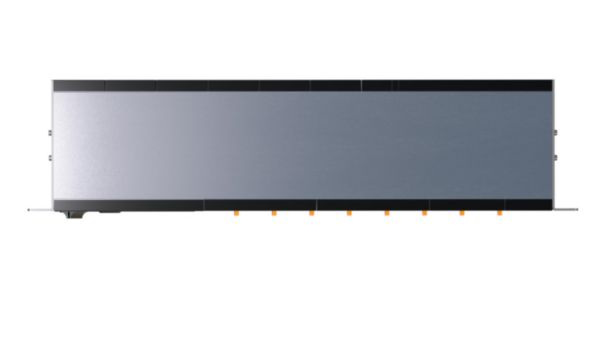

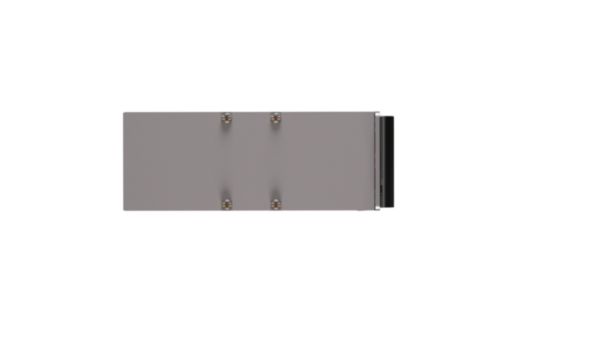

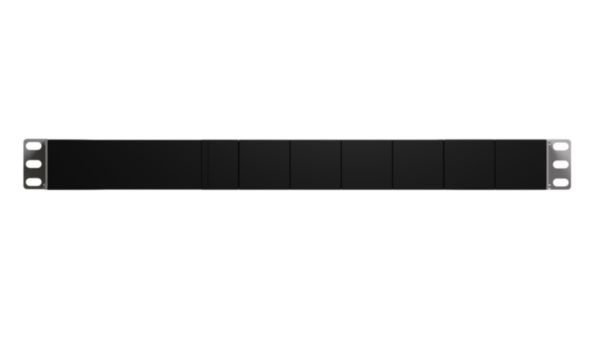

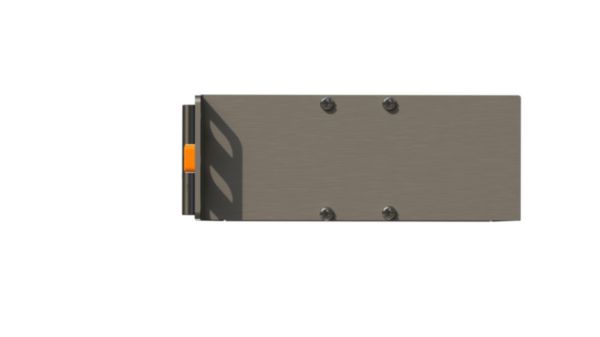

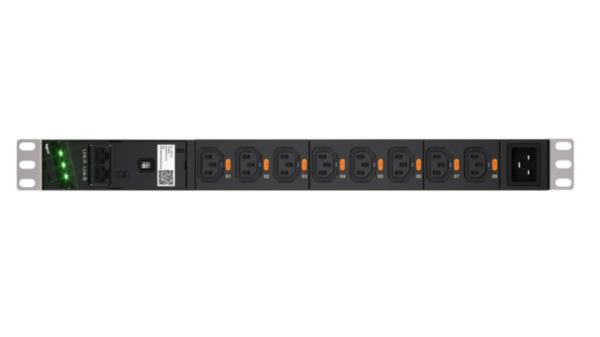

Intelligent PDU, metered (Base version), 19 inch, 1 phase 16A, 8 C13 outlets with cord locking, C20 inlet

Linkeo LEGRAND

Intelligent PDU, metered (Base version), 19 inch, 1 phase 16A, 8 C13 outlets with cord locking, C20 inlet

REF. 646100 EAN. 3414972245852

PDU to power supply active equipment. Connected device enabling remote access to electrical and environmental measurements in a user-friendly and responsive Web User Interface. Alerts setting capabilities for accurate monitoring.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

PDU to power supply active equipment. Connected device enabling remote access to electrical and environmental measurements in a user-friendly and responsive Web User Interface. Alerts setting capabilities for accurate monitoring.

Product characteristics
  • 1 phase - 16A - Max power 3,7kW
  • 8 C13 outlets, with cord locking system
  • Metering at inlet and circuit level with +/ - 1% accuracy (Voltage, Current, Active Power, Apparent Power, Energy, Power Factor)
  • To be linked with a Node PDU version to enable remote access to all measurements and alerts.
  • C20 inlet
Recommendation / Restriction
  • A Base PDU version needs to be linked with a Node PDU version to enable remote access to all measurements and alerts.

The product's benefits

Installation
  • Compact design for integration into 19'' space thanks to its 1U height. Numbered outlets to ease the identification of each server.
Usage
  • Reduce your CAPEX and deploy intelligent PDUs without the need to have a PDU controller in every unit. Reduce your OPEX by daisy-chaining up to 31 base PDUs downstream to a node PDU to save switch ports connections. User-friendly and responsive Web User Interface. Metering, outlet Control and peripherals data at glance. Easy to configure. Data aggregation capabilities in DCIM.
Avantages
  • 2 levels of alerts physically visible on the PDU (LED bar) and remotely (web interface and email/sms alert configuration)
  • Possibility to add up to 8 wireless sensors (temperature, humidity...) for environmental monitoring. Using wireless sensors reduce deployment and maintenance time.
  • Upgradeable to a Node PDU version by adding a Node controller (ref. 646130)

Technical characteristics

Mounting dimension (standardised) 482.6 mm (19 inch)
Mounting size 482.6 mm
Mounting direction Horizontal
Electrical connection Socket outlet
Type of electric connection C20
Number of phases 1
Cable length 0 m
Number of miniature circuit breakers (MCB) 0
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Number of socket outlets with protective contact CEE 7/5 (type E) 0
Number of C13 socket outlets 8
Number of C19 socket outlets 0
Number of C20 socket outlets 1
Number of socket outlets British Standard BS 1363 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of RJ45 connections 2
Number of USB connections 0
Number of other socket outlets 0
Number of height units 1
Length 482.6 mm
Width 44.45 mm
Depth 115 mm
Nominal current 16 A
Supply voltage 230 V
With surge protection module No
Overvoltage category 2
Mains filter No
Switchable No
With meter Yes
Control function No
SNMP Yes
With display No
Evaluation Other
With LED indication Yes
With fuse No
Ampere meter Yes
Temperature measurement Yes
With mounting material Yes
Colour Black
degree of impact strength (IK) Not applicable
Degree of protection (IP) IP40
Operating / setting temperature -5-60 °C
Storage temperature -20-70 °C
Voltage type AC
Supply current 16-16 A
Frequency 50-60 Hz
Terminal marking indication No
RAL-number 9017
Connection type Not applicable
Cable nature for connection Not applicable
Number of MCBs 0
Number of RCCBs 0
Number of CX socket outlets 0
Connected object Yes
Operating method Network , Zigbee
Application store for download Not applicable
With voice command No
Programmable No
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Programming way Web software
Product use function Energy distribution
