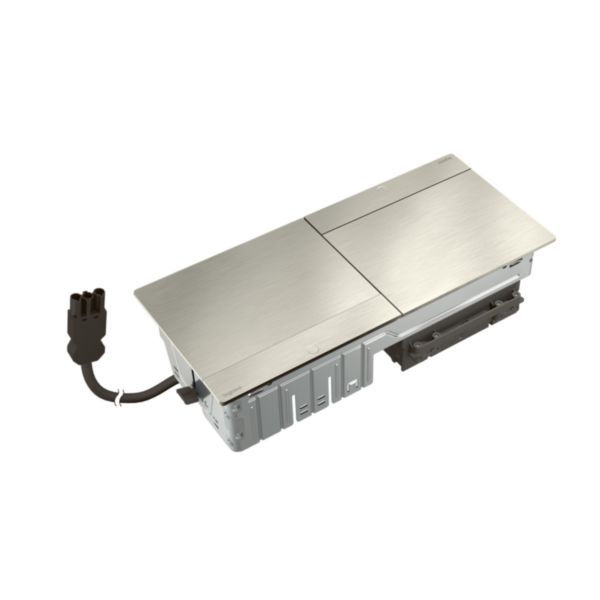

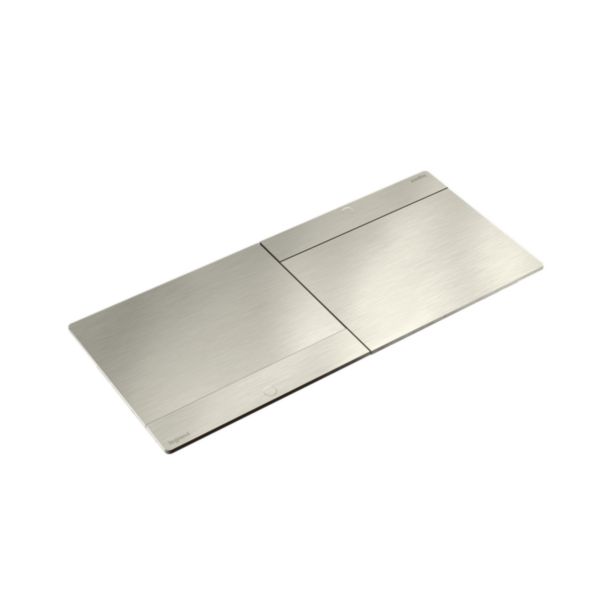

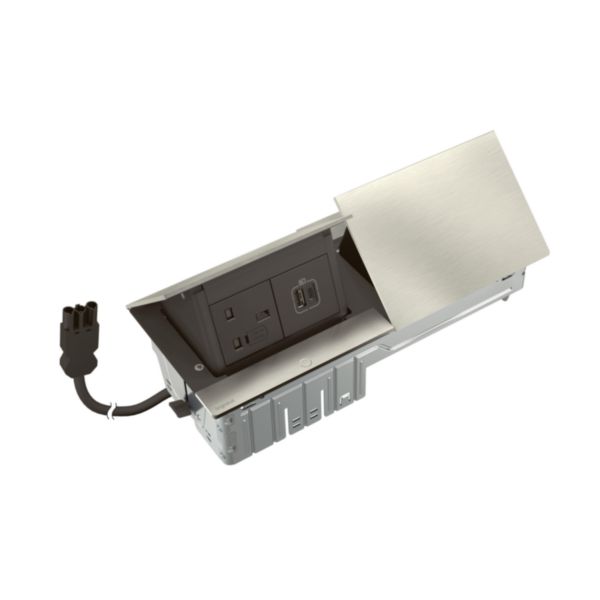

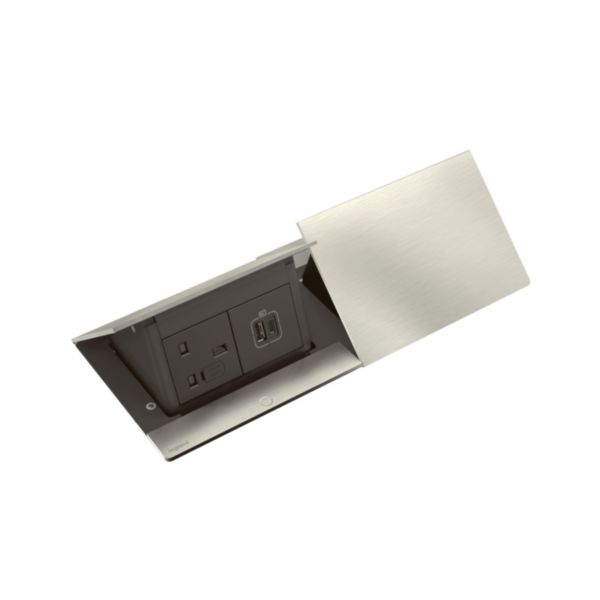

Incara Pop up Brushed aluminium equipped with 2 sockets BS, 2 USB charger A+C 15W and 0,5m cord with GST18 plug

Incara Pop up LEGRAND

Incara Pop up Brushed aluminium equipped with 2 sockets BS, 2 USB charger A+C 15W and 0,5m cord with GST18 plug

REF. 654837 EAN. 3414972002110

Incara Pop up is an elegant retrectable in-desk solution designed to provide power and data close to the user

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Incara Pop up is an elegant retrectable in-desk solution designed to provide power and data close to the user

Product characteristics
  • Retractable unit 2 compartments
  • Brushed stainless steel finish
  • Supplied with mounting frame support
  • Two lids with opposite opening
Recommendation / Restriction
  • To be used in furniture only

The product's benefits

Installation
  • Easy to install with the installation frame supplied. Can be mounted in most surfaces (wood, marble, granit…)
Usage
  • Discreet when closed ; automatic opening by pressing the button
Avantages
  • Metal product to be embedded taking up little space on and under the furniture

Technical characteristics

Model Built-in
Folding Yes
Extendable No
Shape Rectangular
Material Aluminium
Colour Silver
Degree of gloss Other
Length 281.6 mm
Width 123.5 mm
Height 5.2 mm
Built-in depth 74.5 mm
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Number of socket outlets with protective contact CEE 7/5 (type E) 0
Number of socket outlets British Standard BS 1363 2
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of socket outlets Italian standard type P40 L/F 0
With on/off switch No
Number of HDMI connections 0
Number of D-Sub connections 15-pole 0
Number of ports USB-A 1
Number of ports USB-C 1
Number of audio connections 0
Number of CAT 5E connections 0
Number of CAT 6 connections 0
Number of CAT 6A connections 0
Number of empty module positions 0
Number of miniature circuit breakers (MCB) 0
Overvoltage protection No
Mains filter No
With built-in USB power supply Yes
Nominal voltage 250 V
Degree of protection (IP) IP20
degree of impact strength (IK) IK07
Antimicrobial treatment No
Operating / setting temperature (Min-Max) -10-70 °C
Storage temperature (Min-Max) -5-35 °C
Voltage type AC
Supply current (Min-Max) 16-16 A
Standby consumption 0.3 mA
Halogen free Yes
Prewired No
Connection type Not applicable
Label space/information surface No

Documentation

1 document
Instruction Use
LE14351BA-01.pdf pdf (3.26 Mo)
2 documents
Catalogue Technical Page
ex223001_1119.pdf pdf (0.07 Mo)
Catalogue Commercial Page
ex223001_1118.pdf pdf (0.11 Mo)
