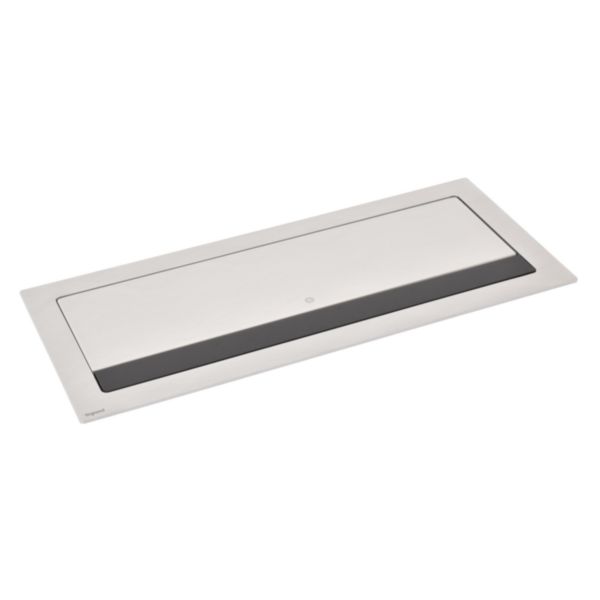

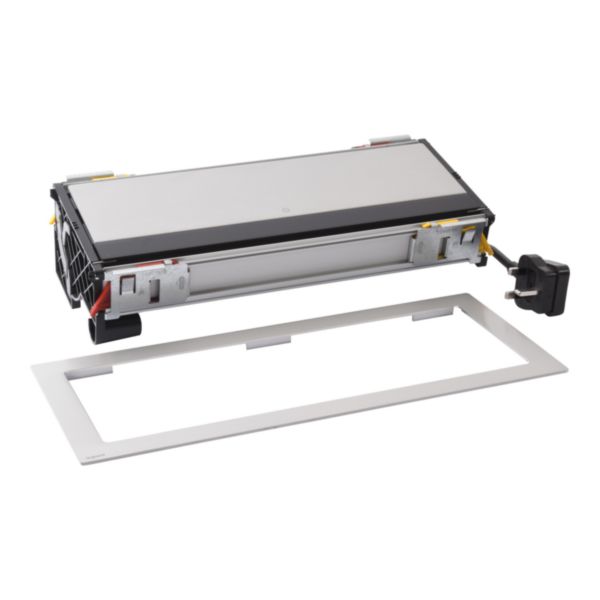

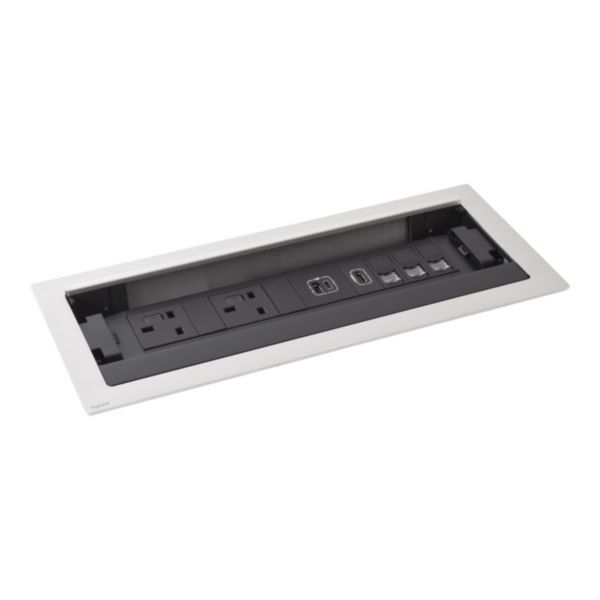

Name: Incara Flip up equipped with 2 sockets BS 1 USB charger AC 15W 3 RJ45 CAT6 UTP and 2m cord with plug metal
SKU: 654965

Model	Built-in
Folding	No
Extendable	No
Shape	Rectangular
Material	Aluminium
Colour	Silver
Degree of gloss	Other
Length	393 mm
Width	170.5 mm
Height	2.5 mm
Built-in depth	95 mm
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Number of socket outlets with protective contact CEE 7/5 (type E)	0
Number of socket outlets British Standard BS 1363	2
Number of socket outlets Swiss standard type 13	0
Number of socket outlets Swiss standard type 15	0
Number of socket outlets Swiss standard type 23	0
Number of socket outlets Swiss standard type 25	0
Number of socket outlets Italian standard type P40 L/F	0
With on/off switch	No
Number of HDMI connections	1
Number of D-Sub connections 15-pole	0
Number of audio connections	0

Number of CAT 5E connections	0
Number of CAT 6 connections	3
Number of CAT 6A connections	0
Number of empty module positions	0
Number of miniature circuit breakers (MCB)	0
Overvoltage protection	No
Mains filter	No
With built-in USB power supply	Yes
Nominal voltage	250 V
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK07
Antimicrobial treatment	No
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
Voltage type	AC
Supply current	16-16 A
Terminal marking indication	Yes
Halogen free	No
Prewired	Yes
Connection type	Screwed terminal
Terminals capacity	0.75-4 mm²
Label space/information surface	No

3 documents

Select all

Technical Sheet

F03371EN-05.pdf pdf (1.56 Mo)

Instruction Use

Cut-out_LE13929BA-01.pdf pdf (0.04 Mo)

Instruction Use

LE12112AA-02.pdf pdf (2.76 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_1120.pdf pdf (0.08 Mo)

Catalogue Technical Page

ex223001_1121.pdf pdf (0.11 Mo)

1 document

Select all

3D Autocad

3D_LG-654965.stp ifc (6.3 Mo)

Incara Flip up equipped with 2 sockets BS 1 USB charger AC 15W 3 RJ45 CAT6 UTP and 2m cord with plug metal
