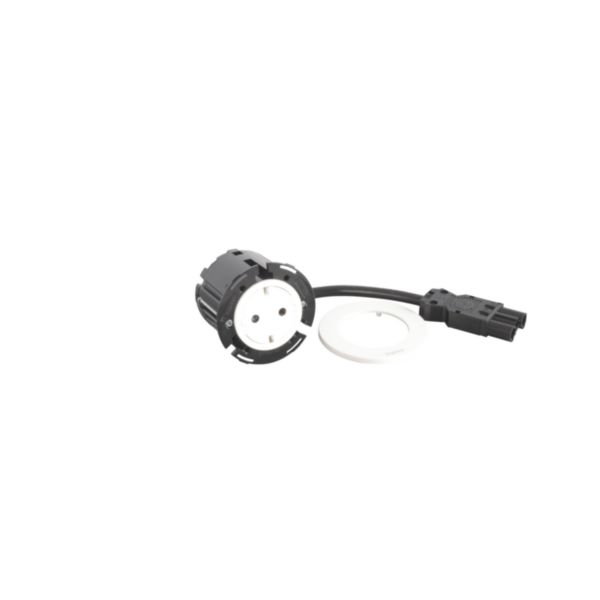

Incara Disq 60 with 1 socket Schuko and 0,5m cord with GST18 plug

Incara Disq 60 LEGRAND

Incara Disq 60 with 1 socket Schuko and 0,5m cord with GST18 plug

REF. 654725F EAN. 3414971973411
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Socket colour : white
  • Supplied with white finishing ring
  • 60mm diameter drill
Recommendation / Restriction
  • For installation in furniture 1-40mm thick

The product's benefits

Installation
  • Can be integrated into a 1mm thick metal partition or in a sofa armchair
Usage
  • Integrated and compact electrification solution
Avantages
  • Can be installed in wood or metal (1mm tickness) furniture

Technical characteristics

Model Built-in
Folding No
Extendable No
Shape Round
Material Plastic
Colour White
Degree of gloss Glossy
Height 54.5 mm
Built-in depth 50 mm
Diameter 74 mm
Number of socket outlets with protective contact CEE 7/3 (type F) 1
Number of socket outlets with protective contact CEE 7/5 (type E) 0
Number of socket outlets British Standard BS 1363 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of socket outlets Italian standard type P40 L/F 0
With on/off switch No
Number of HDMI connections 0
Number of D-Sub connections 15-pole 0
Number of audio connections 0
Number of CAT 5E connections 0
Number of CAT 6 connections 0
Number of CAT 6A connections 0
Number of empty module positions 0
Number of miniature circuit breakers (MCB) 0
Overvoltage protection No
Mains filter No
With built-in USB power supply No
Nominal voltage 250 V
Degree of protection (IP) IP20
degree of impact strength (IK) IK07
Antimicrobial treatment No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Supply current (Min-Max) 16-16 A
Standby consumption 0.06 mA
Terminal marking indication Yes
Halogen free No
Prewired Yes
Connection type Not applicable
Terminals capacity (Min-Max) 2.5-2.5 mm²
Label space/information surface No
