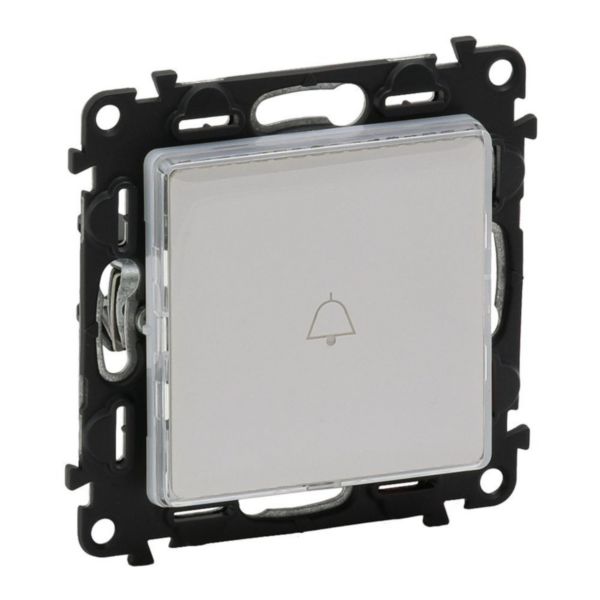

Illuminated label-holder push-button Valena Life - 12 V - 6 A 250 V~ - 3 color

Name: Illuminated label-holder push-button Valena Life - 12 V - 6 A 250 V~ - 3 color
SKU: 752114

Valena Life Legrand

REF. 752114 EAN. 3414970464002

Compare You can only compare 4 products, you must remove 1 to add this one

Valena™ Life - push-buttons with cover plate- Valena In’Matic mechanisms supplied with cover plates and support frames- To be equipped with plates- Supplied with mounted dust protection transparent shield- After clipping in the rocker, all LED lamps light up blue- Flowpack packaging: robust protection to ensure optimum operation
Push-buttons 6 A - 250 V~Illuminated label-holder push-buttons 12 V- Equipped with 0.15 mA low consumption LED (Cat.No 0 676 87) - Equipped with transparent rocker with 3 different coloured inserts (white, ivory, aluminium)

Assembly arrangement	Basic element with central cover plate
Model	Single push button
Method of operation	Push button
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Contactless type	No
Number of rockers	1
Number of modules (module system)	2
Number of poles	1
Nominal voltage	12 V
Rated current	6 A
With lighting	Yes
With complemantary luminous signal	Yes
Monitoring contact	No
Connection type	Push-in clamp
Mounting method	Flush-mounted
Type of fastening	Mounting with claw and screw
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No

Surface protection	Untreated
Surface finishing	Glossy
Transparent	No
Label space/information surface	Yes
Imprint	Other
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	74.7 mm
Device height	74.7 mm
Device depth	37.2 mm
Min. depth of built-in installation box	40 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	28 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-5-35 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Cable section (Min-Max)	2.5-2.5 mm²
