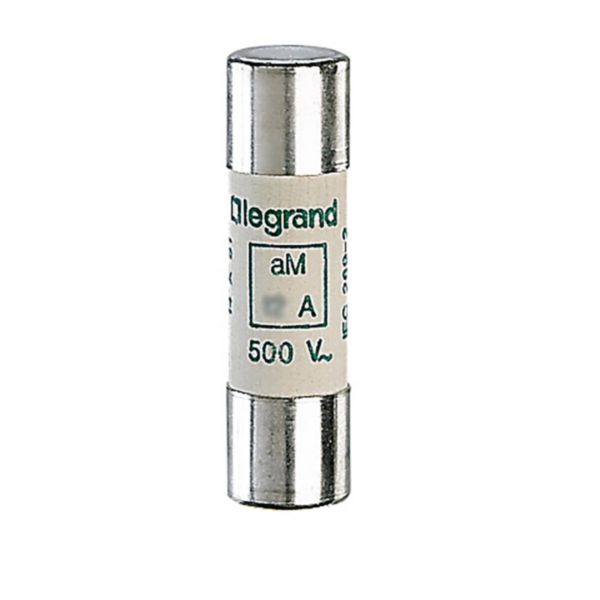

HRC cartridge fuse - cylindrical type aMM 14 X 51 - 25 A - with indicator

LEGRAND

HRC cartridge fuse - cylindrical type aMM 14 X 51 - 25 A - with indicator

REF. 014125 EAN. 3245060141257
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • HRC cartridge fuses
  • Cylindrical type aM (motor rated) - Conform to EN 60269 - 1, IEC 60269 - 1 and 214 x 51 HRC - With striker - Rating : 25 Amps - Voltage ~ : 500 Volts - Rupture capacity : 100000 Amps

Technical characteristics

Model Ceramic fuse
Size 14x51 mm
Rated current 25 A
Depth 51 mm
Width 14 mm
Voltage type AC/DC
Utilization category according to IEC 60269 AM
Rated operating frequency (Min-Max) 42-62 Hz
Type of fuse status indicator Top fuse status indicator
Power loss at rated current 3.1 W
Operating / setting temperature (Min-Max) -25-40 °C
Storage temperature (Min-Max) -40-70 °C

Documentation

2 documents
Technical Sheet
F00188EN-08.pdf pdf (2.04 Mo)
Technical Sheet
F00188FR-08.pdf pdf (2.08 Mo)
3 documents
Catalogue Technical Page
ex223001_0263.pdf pdf (0.05 Mo)
Catalogue Commercial Page
ex223001_0261.pdf pdf (0.1 Mo)
Catalogue Commercial Page
ex223001_0264.pdf pdf (0.05 Mo)
