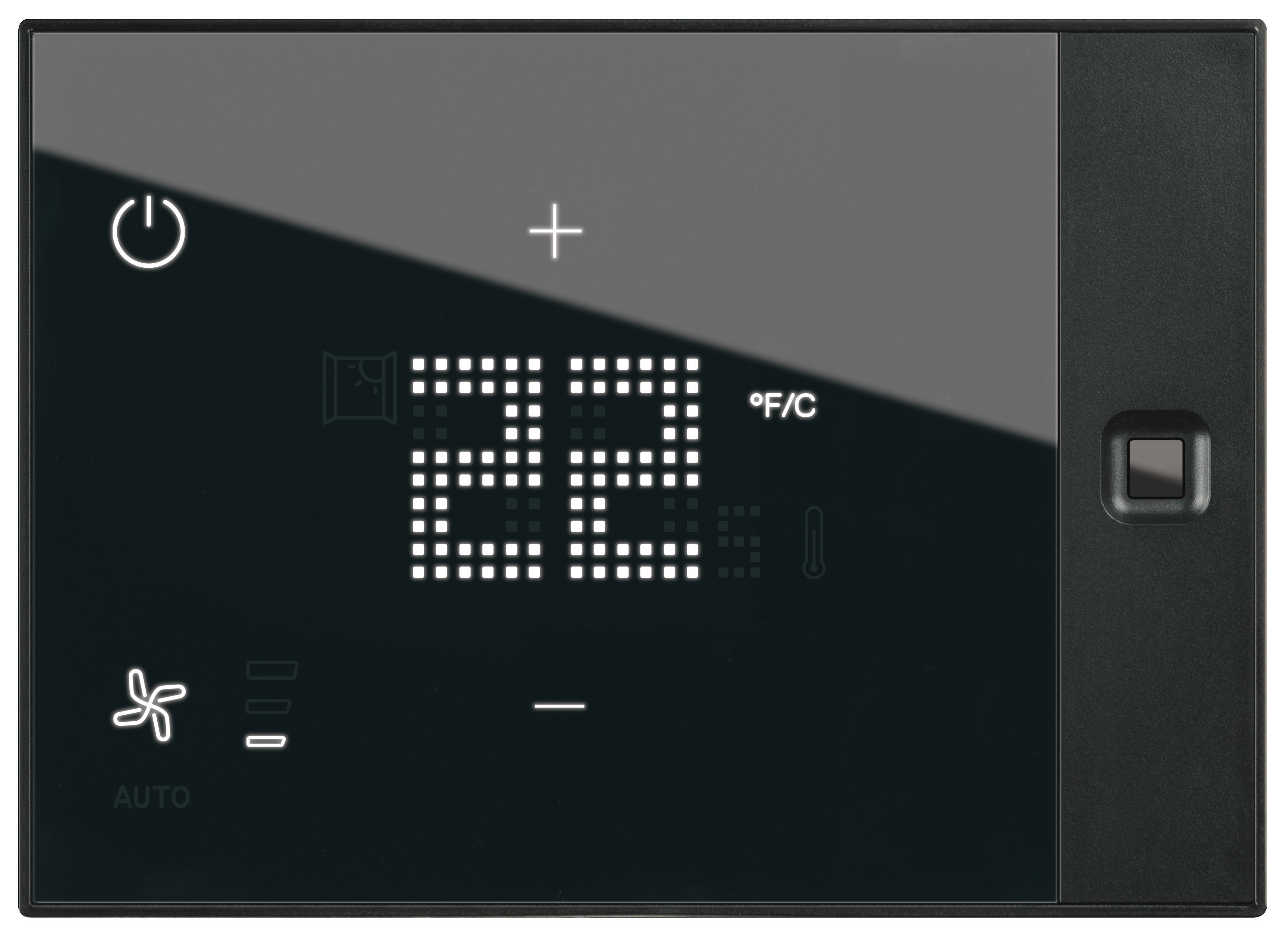

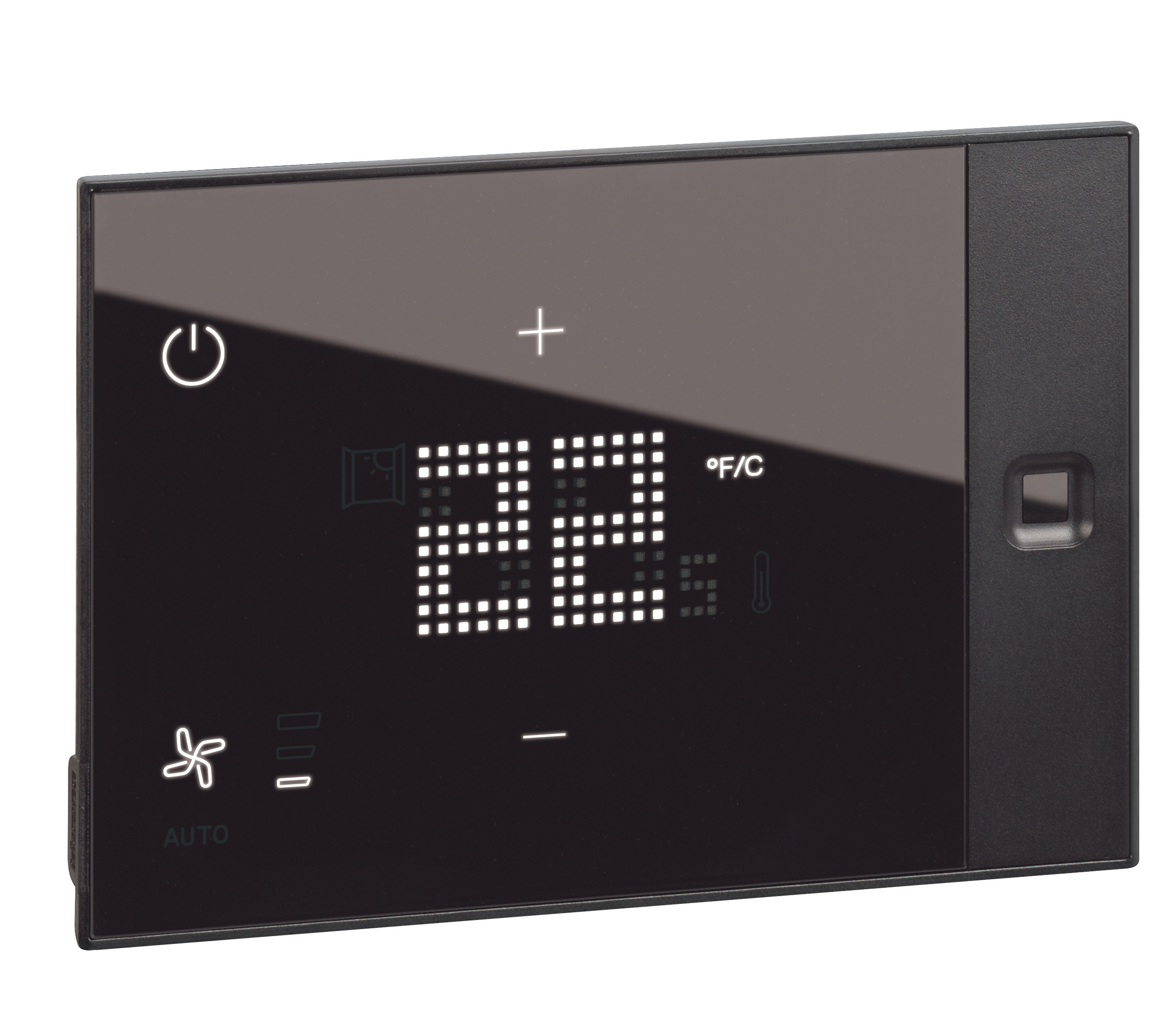

Name: Hotel - UXone flush mounting room control panel 24V - Wireless bidirectional RF - LED display - Black thermoplastic matt finish
SKU: BT-465005

Hotel - UXone flush mounting room control panel 24V - Wireless bidirectional RF - LED display - Black thermoplastic matt finish

REF. BT-465005 EAN. 8005543692967

UXone Thermostat enables efficient room energy management with occupancy detection, flush-mounted design, 24V operation, and integrated display with LED indication for precise control and real-time feedback—ideal for Hotel room automation.

Compare You can only compare 4 products, you must remove 1 to add this one

Description

Product characteristics

Dedicated Hotel thermostat supports both heating and air conditioning installations, optimized for 24V flush-mounted applications.
Enables precise viewing and control of setpoint temperature, ventilation speed, and activation of thermal protection via bidirectional radio frequency interface.
High-contrast display provides real-time indication of ambient or setpoint temperature for enhanced user feedback.
Integrated proximity sensor detects room occupancy and automatically activates the backlight LED for improved visibility.
Flush-mounted design in black thermoplastic (RAL 9017), IP20 rated, with dimensions 129x93x52.5mm, ensures seamless integration and robust performance.

Recommendation / Restriction

Dedicated for hotel rooms

The product's benefits

Installation

Small thickness when it's installed in a backbox or completely flat using the UxOne flat mounting accessory

Usage

Uxone has a built-in motion sensor that can detect if the room is occupied or not.

Avantages

Ideal for retrofit projects thanks to wireless technology embedded to be connected to additional commands, sensors or actuators.
No need of additional DIN room controllers to control temperature and room equipments.
Through Uxone Thermostat it's possible to have access remotly to all room data informations in a standard protocol

Technical characteristics

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Other bus systems	None
Radio frequency bidirectional	Yes
Mounting method	Flush-mounted
With local operation	Yes
With anti-theft/dismantling protection	No
With LED indication	Yes
With display	Yes
Material	Plastic
Material quality	Thermoplastic

Surface protection	Other
Surface finishing	Matt
Colour	Black
RAL-number (similar)	9017
Transparent	No
Manual set point setting	Yes
Presence button	No
Parallel-service possible	Yes
Degree of protection (IP)	IP20
With bus connection	No
Min. depth of built-in installation box	50 mm
Width	129 mm
Height	93 mm
Depth	52.5 mm
