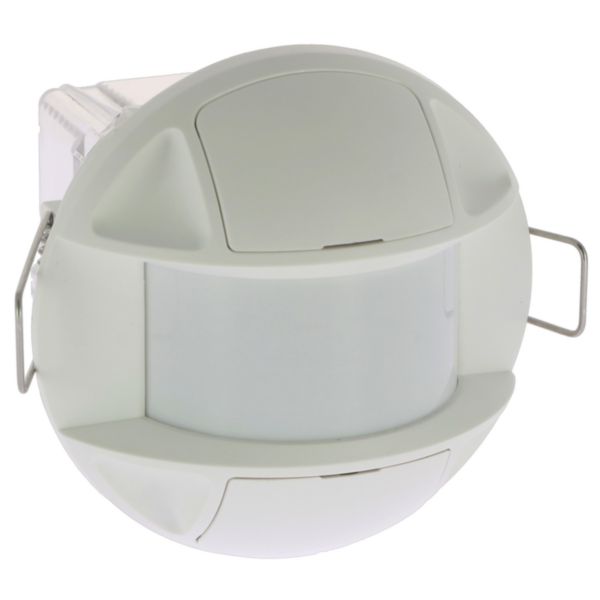

Green-I - GI-CRW - Corridor recessed on-off white sensor - Passive infrared - 360° detection - Flush ceiling mount

GREEN-I Legrand

Green-I - GI-CRW - Corridor recessed on-off white sensor - Passive infrared - 360° detection - Flush ceiling mount

REF. 048466 EAN. 3414972965101

The GI-CRW is a flush-mounted passive infrared corridor detector with 360° coverage over 5mx24m, adjustable sensitivity and luminosity, protective potentiometer shutters, and a quick wiring system for reliable ON/OFF lighting control.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The GI-CRW is a flush-mounted passive infrared corridor detector with 360° coverage over 5mx24m, adjustable sensitivity and luminosity, protective potentiometer shutters, and a quick wiring system for reliable ON/OFF lighting control.

Product characteristics
  • Innovative plug-in screw terminals support rapid and secure wiring for flexible cable types (1.5mm² to 2.5mm²), streamlining installation for professionals.
  • The sensor features a push-button interface for dynamic control, complemented by a signal unit and adjustable response sensitivity for precise operation.
  • Flexible configuration is enabled via graduated potentiometers and the optional Green-I GI-REM remote control, allowing installers to quickly set response luminosity (5 to 2000lx) and sensitivity.
  • Zero-crossing technology ensures reliable switching for LED loads up to 350W, supporting C-load compatibility and minimising electrical stress.
  • Dedicated elliptical lens provides optimal corridor coverage with a 360° detection angle and an optimum mounting height of 2.5m, enhancing area monitoring efficiency.
Recommendation / Restriction
  • Recommended for indoor use. Products are designed to be installed by qualified installers; please refer to the technical documentation for further assistance.

The product's benefits

Installation
  • Product designed to make the installer’s job easier: essential functions, plug-in terminals for quick installation, and easy commissioning thanks to potentiometers or a remote control.
Avantages
  • The product features shutters to discreetly conceal the potentiometers while keeping them easily accessible. The design enhances the product's functionality by creating a perfect fusion of form and function, thereby redefining the customer experience.
  • The product incorporates plug-in screw terminals, a design innovation that offers flexibility and makes wiring work easier.

Technical characteristics

Model Presence detector
Movement sensor/presence detector technology Passive infrared
Constant light control Yes
HVAC-control No
Animal zone No
Creep-under protection No
Background monitoring No
Networkable No
Scan angle 360 °
Optimum mounting height 2.5 m
Staircase light controller Yes
Bridging switch No
Max. reach sideways 5 m
Max. presence range 120 m²
Max. reach frontally 24 m
Suitable for wireless transmission No
Remote operation No
Supplied remote control Yes
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
With signal unit Yes
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Mounting method Flush-mounted
Suitable for ceiling mounting Yes
Ceiling built-in mounting without installation box Yes
Suitable for wall mounting No
Connection type Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
Colour White
RAL-number (similar) 9003
Transparent No
Degree of protection (IP) IP41
degree of impact strength (IK) IK04
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Nominal voltage (Min-Max) 100-240 V
Min. switch-on time 10 s
Max. duty cycle 30 min
Detection angle horizontal (Min-Max) 0-360 °
Response value luminosity (Min-Max) 5-2000 lx
Max. switching power 2000 W
Max. switching power LED 350 W
Suitable for C-load Yes
Number of switching zones 1
Substation input Yes
With alarm function No
With acoustic sensor No
Ambient temperature (Min-Max) -5-30 °C
Width 84 mm
Height 88 mm
Diameter 84 mm
Built-in depth 57 mm
Built-in diameter 67 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Compatible with Casambi No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-30 °C
Storage temperature (Min-Max) -20-70 °C
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Entry membrane gland type Not applicable
Auto switch Yes
