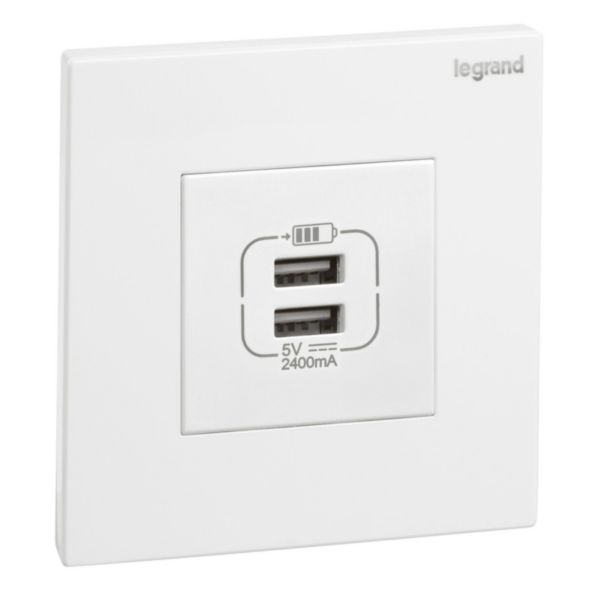

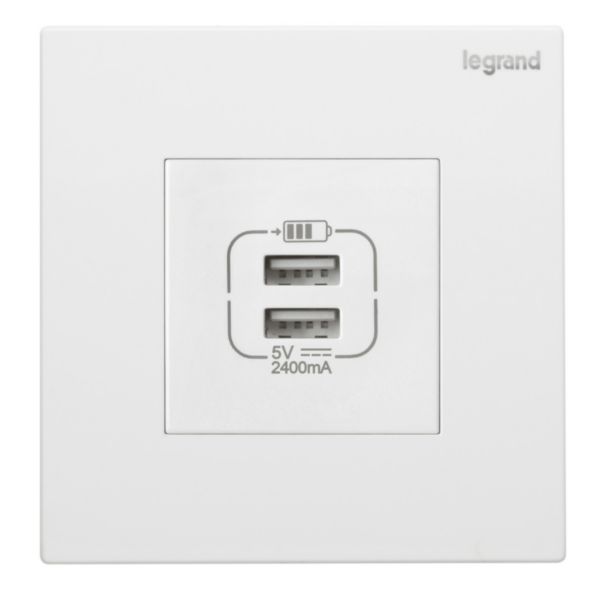

Galion - 1 gang double USB 2,4A type-A USB chargers - White

Galion LEGRAND

Galion - 1 gang double USB 2,4A type-A USB chargers - White

REF. 282447 EAN. 3414971587694
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • USB Type - A charger 2,4A, 5Vdc
  • Sold complete under one catalog number, ready to install.
  • Consumption in passive mode < 0,1 W, overvoltages protected
  • Battery picto to indicate for charging only
  • Honeycomb design supporting frame for stability and rigidity
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • 2P+E tap-off connection via 2.5 mm2 screw terminals
Usage
  • One gang to charge two portable devices such as smartphones, tablets, MP4 players, loudspeakers, watches, games consoles, power banks, …
Avantages
  • USB 12W ideal for optimal charging of smartphones or tablets
  • Product delivered with paint and dust protection
  • Delivered with screws for flush-mounting or surface-mounting boxes, plastic or metal

Technical characteristics

Number of modules (module system) 2
Model Other
Number of ports USB-A 2
Number of ports USB-C 0
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 3000 mA
Connection type Screwed terminal
Mounting method Flush-mounted
Colour White
Device width 86 mm
Device height 88 mm
Device depth 40 mm
Min. depth of built-in installation box 30 mm
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Antimicrobial treatment No
Built-in depth 30.9 mm
Operating / setting temperature (Min-Max) -5-45 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
USB Output Power 12
Standby consumption 0.4 mA
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) Yes
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1-4 mm²
