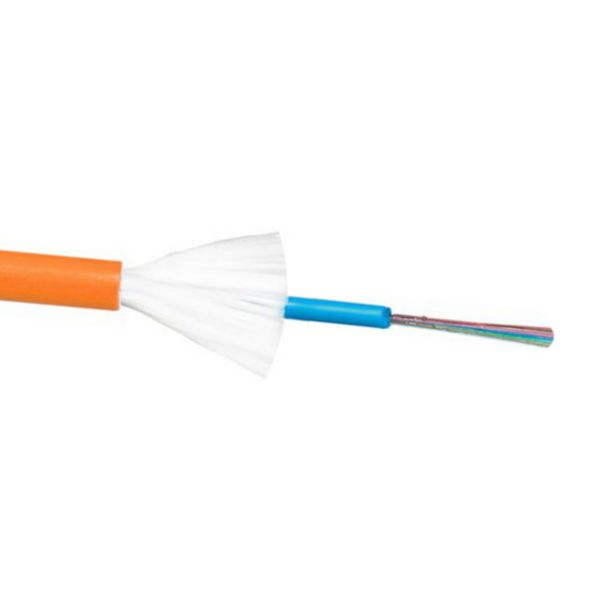

Fibre optic cable OM2 Loose Tube 12 Cores Indoor/Outdoor LSZH Euroclass Dca s2 d2 a1

LCS3 Legrand

Fibre optic cable OM2 Loose Tube 12 Cores Indoor/Outdoor LSZH Euroclass Dca s2 d2 a1

REF. 032506 EAN. 3245060325060

The Legrand Indoor/Outdoor fibre optic cable is easy to handle and resilient to hardships. It can be used for LAN and WAN backbones. It is equally suited for installation in ducts and on trays. It has an Euroclass fire safety rating.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Legrand Indoor/Outdoor fibre optic cable is easy to handle and resilient to hardships. It can be used for LAN and WAN backbones. It is equally suited for installation in ducts and on trays. It has an Euroclass fire safety rating.

Technical characteristics

Number of fibres 12
Type of tube Loose tube
Number of fibres per tube 12
Fibre type Multi mode 50/125
Category OM2
With strain relief No
With rodent protection No
Material outer sheath Other
Specification material outer sheath Other
Colour outer sheath Orange
Longitudinal water blocking cable Yes
Radial water blocking cable Yes
Cable metal free Yes
Low smoke according to EN IEC 61034-2 Yes
Halogen free according to EN IEC 60754-2 Yes
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production S2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles D2
Reaction-to-fire according to EN 13501-6: Acidity a1
Oil resistant according to EN IEC 60811-404 No
Resistant to chemicals No
Outer diameter approximate 7.3 mm
Min. permitted bending radius, stationary application/permanent installation 73 mm
Suitable for underground installation No
Blow in No
Operating / setting temperature (Min-Max) -30-70 °C
Storage temperature (Min-Max) -40-60 °C
RAL-number 2009

Documentation

2 documents
Technical Sheet
F01071FR-04.pdf pdf (0.56 Mo)
Technical Sheet
F01071EN-04.pdf pdf (0.56 Mo)
1 document
Declaration of performance
