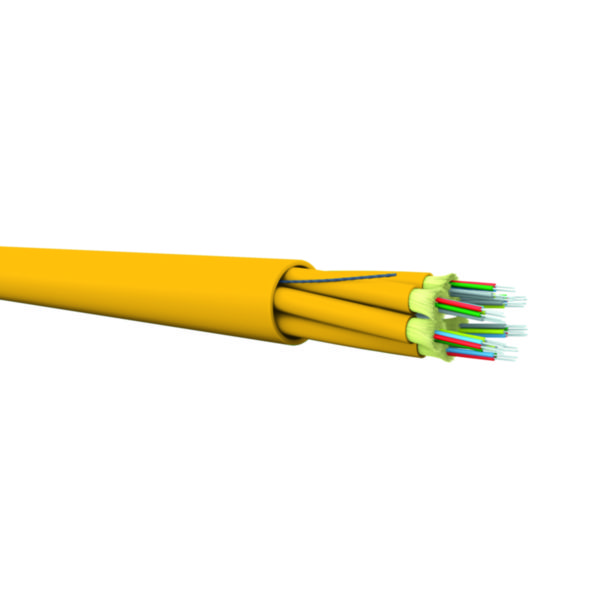

Fiber Optic Cable OS2 Tight Buffer 48 Cores Indoor/Outdoor LSZH Euroclass Dca s2 d2 a1

LCS3 Legrand

Fiber Optic Cable OS2 Tight Buffer 48 Cores Indoor/Outdoor LSZH Euroclass Dca s2 d2 a1

REF. 032296 EAN. 3414971205598

The Legrand Indoor/Outdoor fiber optic cable is easy to handle and resilient to hardships. It can be used for LAN and WAN backbones. It is equally suited for installation in ducts and on trays. It has an Euroclass fire safety rating.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Legrand Indoor/Outdoor fiber optic cable is easy to handle and resilient to hardships. It can be used for LAN and WAN backbones. It is equally suited for installation in ducts and on trays. It has an Euroclass fire safety rating.

Technical characteristics

Number of fibres 48
Type of tube Tight
Number of fibres per tube 6
Fibre type Single mode 9/125
Category OS2
With strain relief No
With rodent protection No
Material outer sheath Other
Specification material outer sheath Other
Colour outer sheath Yellow
Longitudinal water blocking cable Yes
Radial water blocking cable Yes
Cable metal free Yes
Cable geometry Round
Flame retardant according to IEC 60332-1-2 Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R) No
Flame retardant according to IEC 60332-3-22 (Cat A) No
Flame retardant according to IEC 60332-3-23 (Cat B) No
Flame retardant according to IEC 60332-3-24 (Cat C) Yes
Flame retardant according to IEC 60332-3-25 (Cat D) No
Low smoke according to EN IEC 61034-2 Yes
Halogen free according to EN IEC 60754-1 No
Halogen free according to EN IEC 60754-2 Yes
Halogen free according to EN IEC 60754-3 No
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production S2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles D2
Reaction-to-fire according to EN 13501-6: Acidity a1
Circuit integrity according to IEC 60331-23 No
Circuit integrity according to IEC 60331-25 None
Circuit integrity according to EN 50200 None
Oil resistant according to EN IEC 60811-404 No
Resistant to chemicals No
Cable width approximate 14.5 mm
Cable height approximate 14.5 mm
Outer diameter approximate 14.5 mm
Min. permitted bending radius, stationary application/permanent installation 125 mm
Max. tensile strength during installation 4.2 kN
Suitable for underground installation No
Blow in No
Weight 230 kg/km
Fibre optic cable colour coding according to S-12 Skanova standard No
Operating / setting temperature (Min-Max) -40-70 °C
Storage temperature (Min-Max) -40-70 °C
RAL-number 1018
