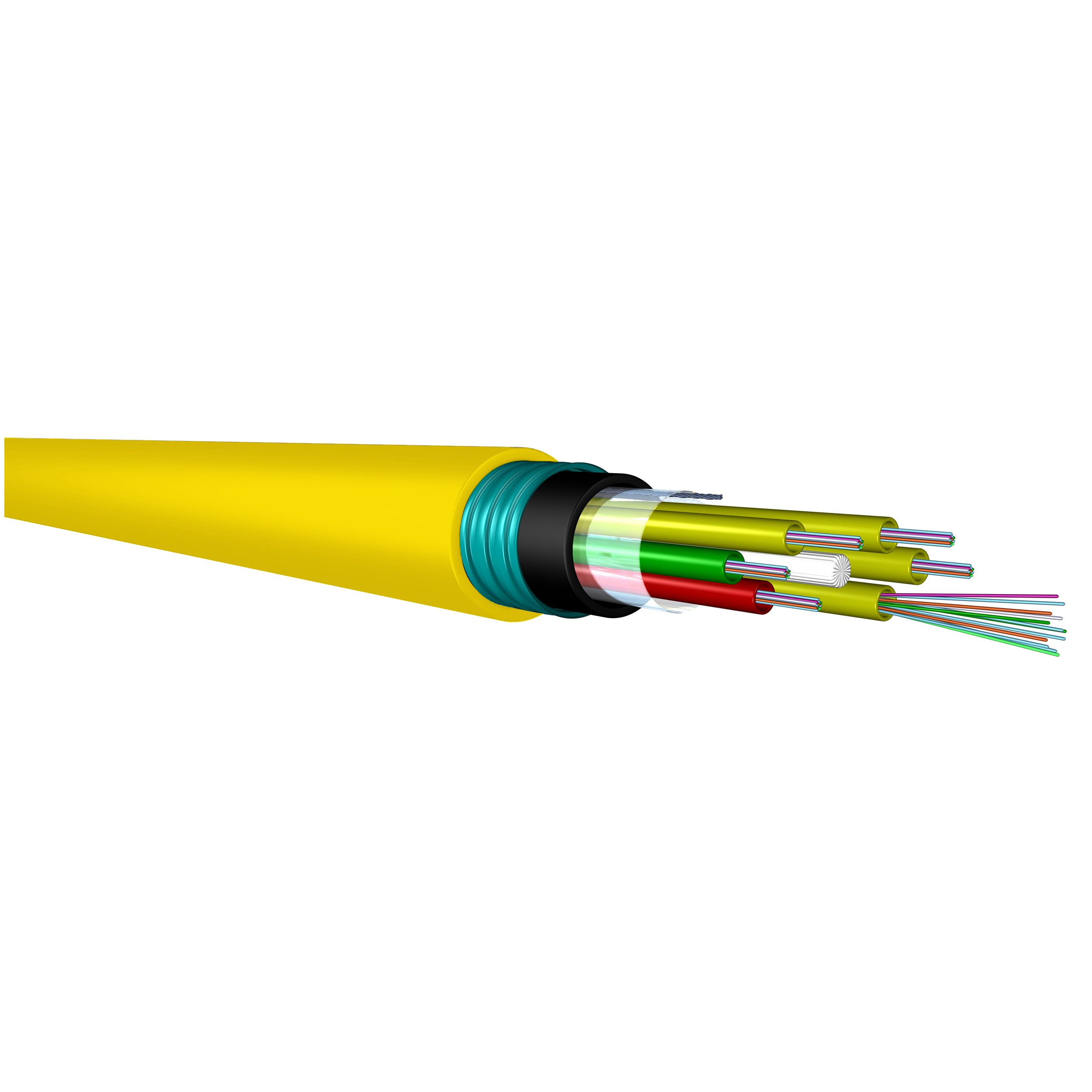

Fiber Optic Cable OS2 Loose Tube 48 Cores Indoor Outdoor Rodent Proof

LCS3 Legrand

Fiber Optic Cable OS2 Loose Tube 48 Cores Indoor Outdoor Rodent Proof

REF. 032466 EAN. 3414971205772

Legrand rodent proof cable is ideal for use in harsh environments where deployment and retrieval for reuse are required.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand rodent proof cable is ideal for use in harsh environments where deployment and retrieval for reuse are required.

Technical characteristics

Number of fibres 48
Type of tube Loose tube
Number of fibres per tube 12
Fibre type Single mode 9/125
Category OS2
With strain relief No
With rodent protection Yes
Material outer sheath Other
Specification material outer sheath Other
Colour outer sheath Yellow
Longitudinal water blocking cable No
Radial water blocking cable Yes
Cable metal free No
Cable geometry Round
Flame retardant according to IEC 60332-1-2 Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R) No
Flame retardant according to IEC 60332-3-22 (Cat A) No
Flame retardant according to IEC 60332-3-23 (Cat B) No
Flame retardant according to IEC 60332-3-24 (Cat C) Yes
Flame retardant according to IEC 60332-3-25 (Cat D) No
Low smoke according to EN IEC 61034-2 Yes
Halogen free according to EN IEC 60754-1 Yes
Halogen free according to EN IEC 60754-2 Yes
Halogen free according to EN IEC 60754-3 No
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production S2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles D2
Reaction-to-fire according to EN 13501-6: Acidity a1
Circuit integrity according to IEC 60331-23 No
Circuit integrity according to IEC 60331-25 None
Circuit integrity according to EN 50200 None
Oil resistant according to EN IEC 60811-404 No
Resistant to chemicals No
Cable width approximate 14.5 mm
Cable height approximate 14.5 mm
Outer diameter approximate 14.5 mm
Min. permitted bending radius, stationary application/permanent installation 145 mm
Max. tensile strength during installation 1.8 kN
Suitable for underground installation No
Blow in No
Weight 245 kg/km
Fibre optic cable colour coding according to S-12 Skanova standard No
Operating / setting temperature (Min-Max) -60-70 °C
Storage temperature (Min-Max) -60-60 °C
RAL-number 1018
