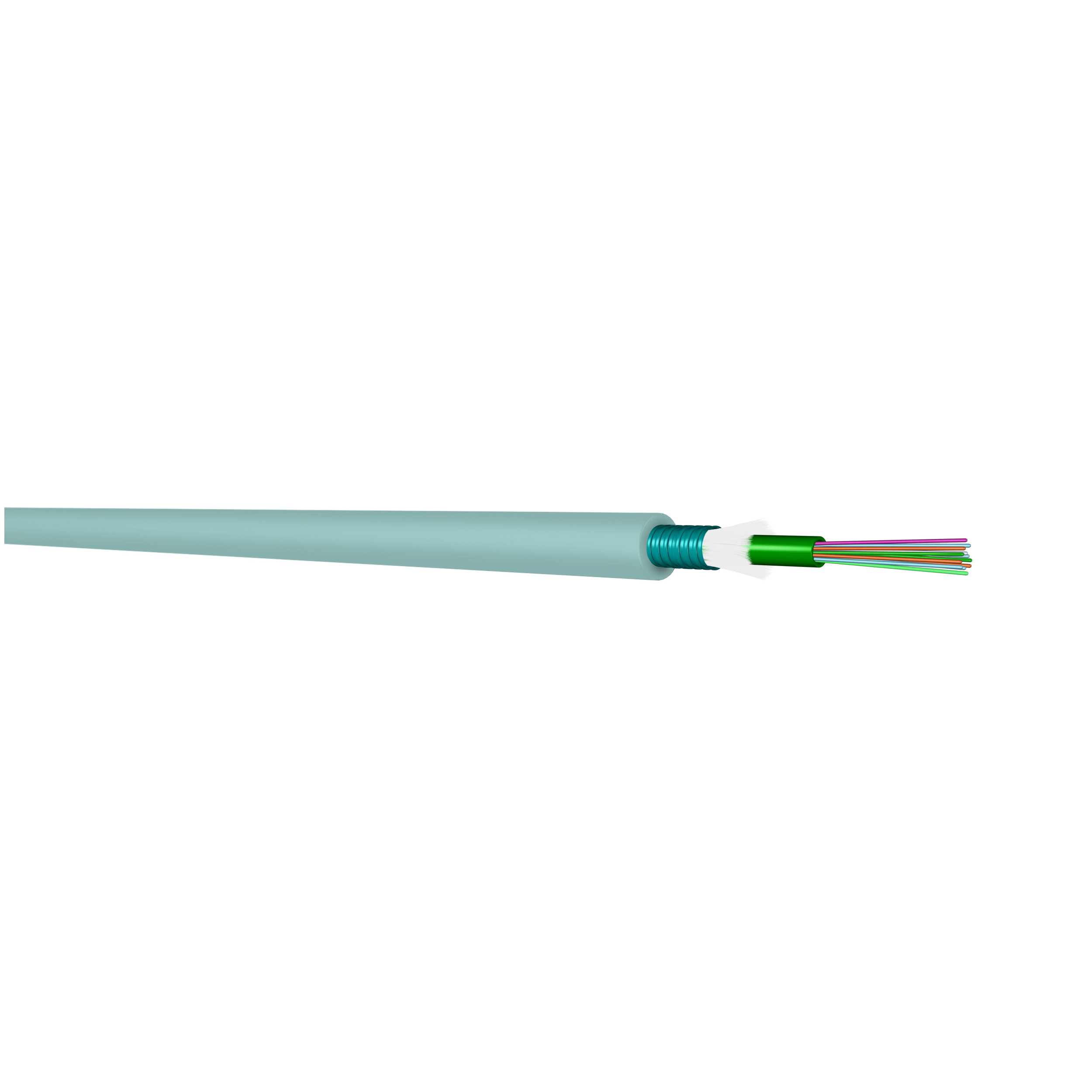

Fiber Optic Cable OM4 Loose Tube 24 Cores Indoor Outdoor Rodent Proof

LCS3 Legrand

Fiber Optic Cable OM4 Loose Tube 24 Cores Indoor Outdoor Rodent Proof

REF. 032937 EAN. 3414971206755

Legrand rodent proof cable is ideal for use in harsh environments where deployment and retrieval for reuse are required.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand rodent proof cable is ideal for use in harsh environments where deployment and retrieval for reuse are required.

Technical characteristics

Number of fibres 24
Type of tube Loose tube
Number of fibres per tube 24
Fibre type Multi mode 50/125
Category OM4
With strain relief No
With rodent protection Yes
Material outer sheath Other
Specification material outer sheath Other
Colour outer sheath Turquoise
Longitudinal water blocking cable Yes
Radial water blocking cable Yes
Cable metal free No
Cable geometry Round
Flame retardant according to IEC 60332-1-2 Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R) No
Flame retardant according to IEC 60332-3-22 (Cat A) No
Flame retardant according to IEC 60332-3-23 (Cat B) No
Flame retardant according to IEC 60332-3-24 (Cat C) Yes
Flame retardant according to IEC 60332-3-25 (Cat D) No
Low smoke according to EN IEC 61034-2 Yes
Halogen free according to EN IEC 60754-1 Yes
Halogen free according to EN IEC 60754-2 Yes
Halogen free according to EN IEC 60754-3 No
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production S2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles D2
Reaction-to-fire according to EN 13501-6: Acidity a1
Circuit integrity according to IEC 60331-23 No
Circuit integrity according to IEC 60331-25 None
Circuit integrity according to EN 50200 None
Oil resistant according to EN IEC 60811-404 No
Resistant to chemicals No
Cable width approximate 8.5 mm
Cable height approximate 8.5 mm
Outer diameter approximate 8.5 mm
Min. permitted bending radius, stationary application/permanent installation 85 mm
Max. tensile strength during installation 3 kN
Suitable for underground installation No
Blow in No
Weight 75 kg/km
Fibre optic cable colour coding according to S-12 Skanova standard No
Operating / setting temperature (Min-Max) -40-70 °C
Storage temperature (Min-Max) -40-70 °C
RAL-number 6027

Documentation

2 documents
Technical Sheet
S000101448FR-01.pdf pdf (0.06 Mo)
Technical Sheet
S000101448EN-01.pdf pdf (0.56 Mo)
1 document
Declaration of performance
