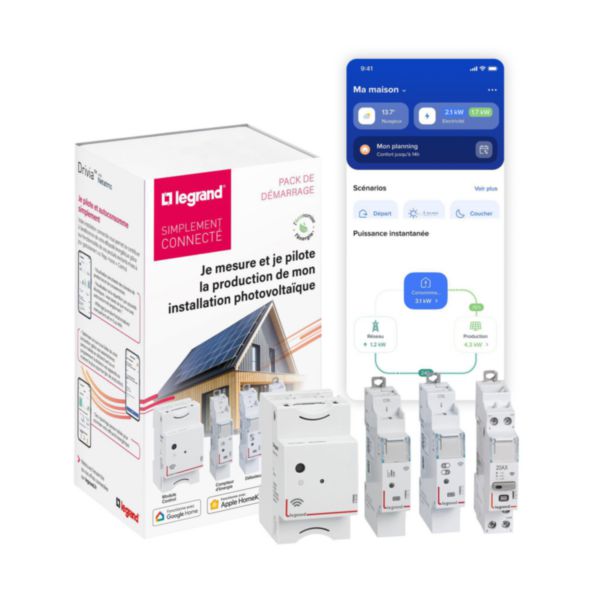

EMDX³ With Netatmo - Drivia starter pack for photovoltaic - Control module - Energy meter - Load shedding - Contactor

Name: EMDX³ With Netatmo - Drivia starter pack for photovoltaic - Control module - Energy meter - Load shedding - Contactor
SKU: 199156

EMDX³ with Netatmo Legrand

REF. 199156 EAN. 3414972781725

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	None
Radio frequency bidirectional	Yes
Model	Energy meter
Connection type	Direct , Cable
Reactive power	No
Approved according to PTB	No
S0 impulse interface	None
Tariff switch	No
Width	17.7 mm
Height	101.9 mm
Depth	67.2 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	-40-70 °C
Voltage type	AC

Nominal voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Terminal marking indication	Yes
Halogen free	Yes
Terminals capacity (Min-Max)	0.75-2.5 mm²
Label space/information surface	Yes
Fitted with USB plug	No
Mounting method	DIN rail
Addressable	No
Contains Batteries and/or Accumulator	No
Connected object	Yes
Operating method	Zigbee
Application store for download	Google Play Store , App Store
With voice command	No
Programmable	Yes
Interoperable connection Protocol	No
Connectable by Internet box	No
Programming way	Smartphone apps
Application name	Home + Control
Product use function	Energy measurement and metering

6 documents

Select all

Instruction Use

LE14936AA.pdf pdf (2.47 Mo)

Technical Sheet

F03108EN-09.pdf pdf (2.01 Mo)

Technical Sheet

F03109EN-09.pdf pdf (2.16 Mo)

Technical Sheet

F03109FR-09.pdf pdf (2.16 Mo)

Technical Sheet

F03108FR-09.pdf pdf (2.02 Mo)

Instruction Use

199156_FR-11.pdf pdf (13.75 Mo)

1 document

Select all

Agreement

LGKGYSSQEZ (0.05 Mo)
