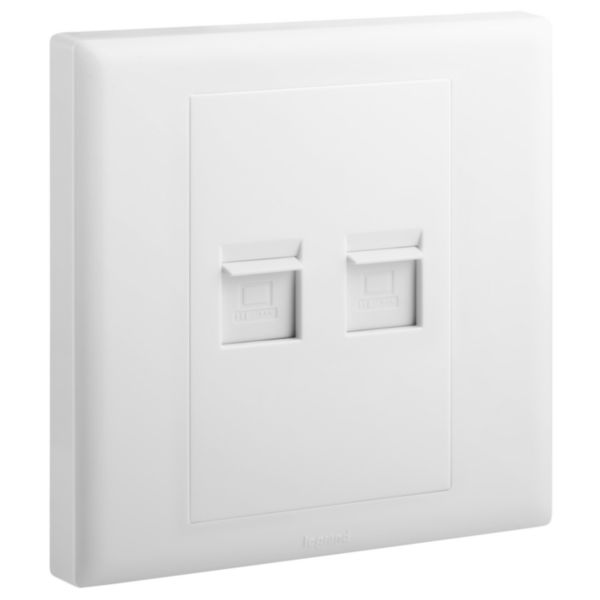

Eloe - Double RJ45 socket category 6 UTP - White

LEGRAND

Eloe - Double RJ45 socket category 6 UTP - White

REF. 618092 EAN. 3414972242288
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Category 6 UTP : data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
  • Sold with white ELOE plate
  • Equipped with a protective dust cover protecting the connector.
  • Tool less connection
Recommendation / Restriction
  • Minimum depth of the box>40 mm. Surface cleaning with a soft, slightly damp cloth. Do not use: acetone, tar remover, trichloroethylene.

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Type of fastening Screwing
Colour White
Device width 86 mm
Device height 86 mm
Device depth 31.9 mm
Built-in depth 20.4 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 10-70 °C
Antimicrobial treatment No

Documentation

2 documents
Instruction Use
LE13449AA.pdf pdf (1.59 Mo)
Technical Sheet
F03745EN-00.pdf pdf (0.47 Mo)
1 document
Catalogue Commercial Page
ex223001_0664.pdf pdf (0.09 Mo)
