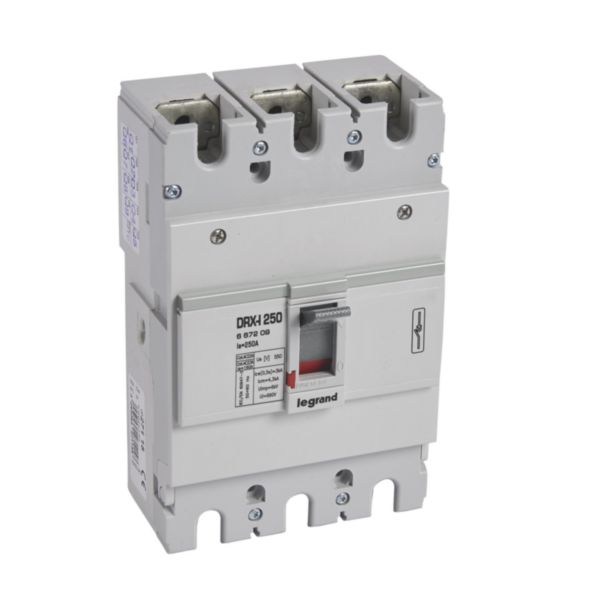

DRX-I 250 trip-free switch for on-load circuit breaking and isolation of low voltage electrical circuits - 3P - 250 A

Name: DRX-I 250 trip-free switch for on-load circuit breaking and isolation of low voltage electrical circuits - 3P - 250 A
SKU: 667209

LEGRAND

REF. 667209 EAN. 3414970318435

Compare You can only compare 4 products, you must remove 1 to add this one

DRX 250 - thermal magnetic MCCBs from 125 to 250 A - For switching, control, isolation and protection of low - voltage electrical lines - Can be fitted with auxiliaries - Supplied with : - M8 terminals - Fixing screws - Insulating shields (2 for 3P and 3 for 4P) - Fixed thermal and magnetic - Conform to IEC 60947 - 2
DRX - I 250 - Trip - free switches for on - load circuit breaking and isolation of low voltage electrical circuits - 250 A

Rated permanent current Iu	250 A
Rated voltage (Min-Max)	220-550 V
Overload release current setting (Min-Max)	250-250 A
Device construction	Built-in device fixed built-in technique
Integrated earth fault protection	No
Type of electrical connection of main circuit	Screw connection
Suitable for DIN rail (top hat rail) mounting	Yes
DIN rail (top hat rail) mounting optional	Yes
Number of auxiliary contacts as change-over contact	2
With switched-off indicator	Yes
With integrated under voltage release	Yes
Number of poles	3
Position of connection for main current circuit	Front side
Type of control element	Wing knob
Complete device with protection unit	Yes
Motor drive integrated	No
Motor drive optional	Yes

Degree of protection (IP)	IP30
Width	105 mm
Height	165 mm
Depth	112 mm
Operating / setting temperature (Min-Max)	-5-70 °C
Storage temperature (Min-Max)	-40-85 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Electric supplying direction	By the top or bottom
Terminal marking indication	No
Colour	Grey
RAL-number	7035
Halogen free	Yes
Terminals capacity (Min-Max)	120-300 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	Yes
Contains Batteries and/or Accumulator	No
