Dooxie with Netatmo - Roller shutter wireless switch - Centralized remote control - Zigbee connectivity

dooxie™ Legrand

Dooxie with Netatmo - Roller shutter wireless switch - Centralized remote control - Zigbee connectivity

REF. 600087 EAN. 3414971044241

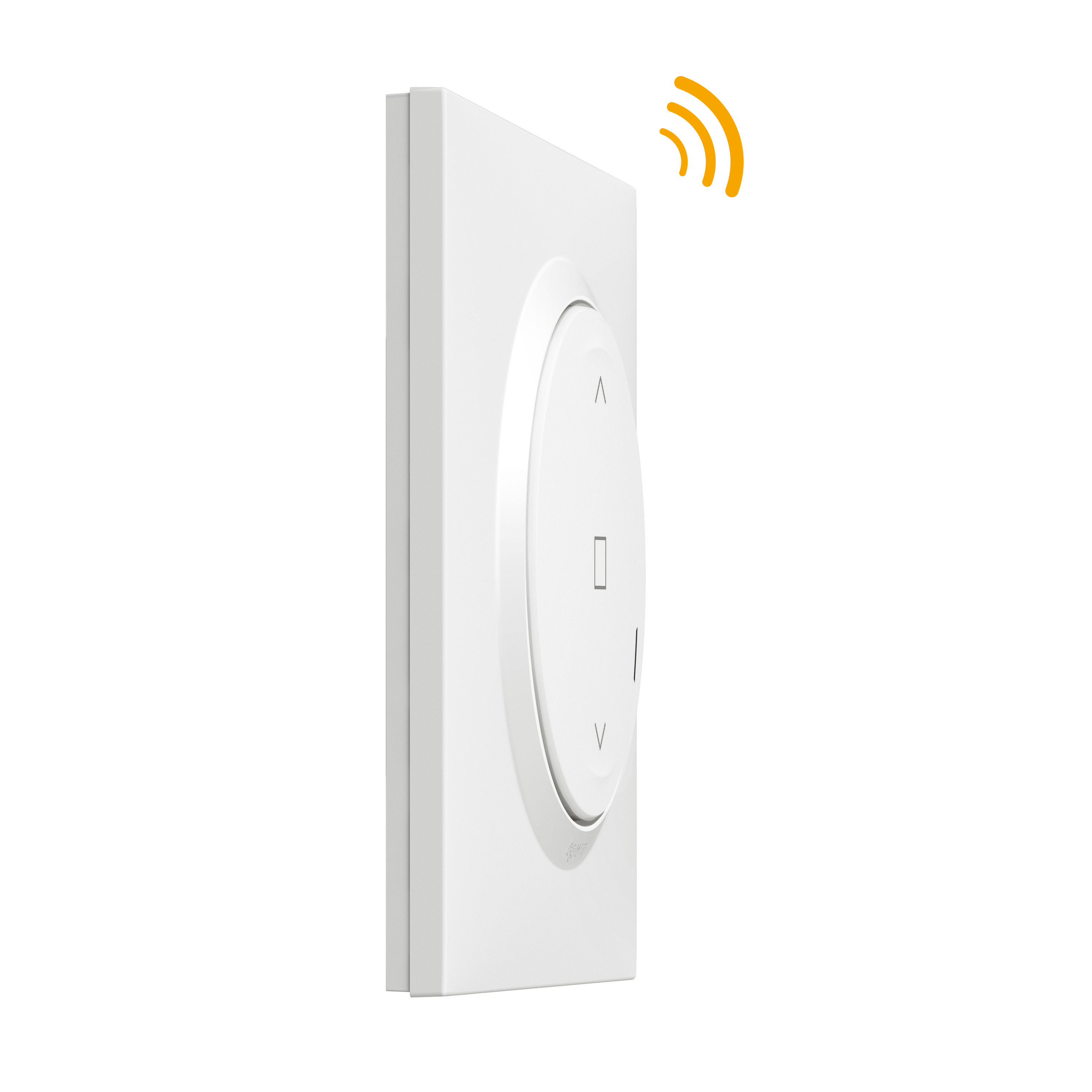

The roller shutter wireless switch enables centralized remote control via the Home + Control app or voice commands. With Zigbee connectivity, 2400MHz frequency, and 185m range, it allows flexible installation without extra wiring.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The roller shutter wireless switch enables centralized remote control via the Home + Control app or voice commands. With Zigbee connectivity, 2400MHz frequency, and 185m range, it allows flexible installation without extra wiring.

Product characteristics
  • Up/down/stop function enables precise centralized control of roller shutters via wireless radio transmitter.
  • LED indicator provides real-time status and low battery warning for reliable operation.
  • Supplied with a replaceable CR2032 lithium battery offering up to 8 years of service life.
  • Surface-mounted design with IP40 protection and compact dimensions (87x87x12mm) for flexible installation.
  • White, halogen-free finish ensures aesthetic integration and compliance with modern building standards.
Recommendation / Restriction
  • To pair your roller shutter wireless switch, you first need to purchase and install a Dooxie with Netatmo connected starter pack, as well as one or more Dooxie with Netatmo connected roller shutter switches

The product's benefits

Installation
  • Extra-slim, the roller shutter wireless switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box
Usage
  • Pair as many connected roller shutter switches as you wish and control them all with a single press on your wireless switch

Technical characteristics

Radio frequency 2400 MHz
Rolling code system Yes
Code length (Bit) 128
Range 185 m
Number of commands 2
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP40
Keyboard protection cover No
Current supply Battery
Width 87 mm
Height 87 mm
Depth 12 mm
Built-in depth 0 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour White
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries Yes
Number of batteries (Type 1) 1
IEC code (Type 1) CR2032
Battery ou Accumulator (Type 1) Battery (not rechargeable)
Battery Composition (Type 1) Lithium (battery or accumulator)
Battery Location (Type 1) Product includes a battery
Regulation Type (Type 1) P : Portable (Standard format)
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Shutter management
Application name Home + Control
Programming way Smartphone apps
Battery weight (g) for Type 1 3 g
Number of Single Element (Pack1) 1
