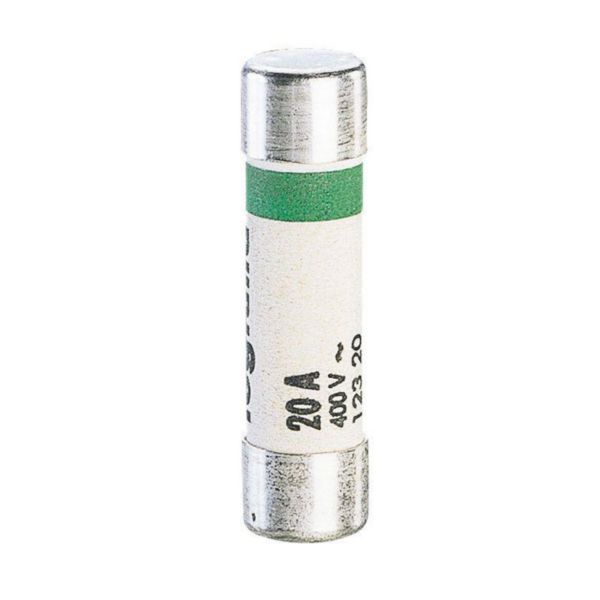

Domestic cartridge fuse - cylindrical type 8.5 x 31.5 - 20 A - with indicator

Name: Domestic cartridge fuse - cylindrical type 8.5 x 31.5 - 20 A - with indicator
SKU: 012420

LEGRAND

REF. 012420 EAN. 3245060124205

Compare You can only compare 4 products, you must remove 1 to add this one

Domestic cartridge fuses
Cylindrical8.5 x 31.5 - Rating : 20 Amps - Voltage ~ : 400 Volts - Rupture capacity Copper : 20000 Amps - Protected section : 2.5 mm² - Color Indication : Green

Model	Ceramic fuse
Size	8x32 mm
Rated current	20 A
Depth	31.5 mm
Width	8.5 mm
Voltage type	AC
Utilization category according to IEC 60269	Other

Rated operating frequency (Min-Max)	50-60 Hz
Type of fuse status indicator	Top fuse status indicator
Release characteristic	Fast (F)
Power loss at rated current	1.7 W
Operating / setting temperature (Min-Max)	-25-40 °C
Storage temperature (Min-Max)	-40-70 °C
