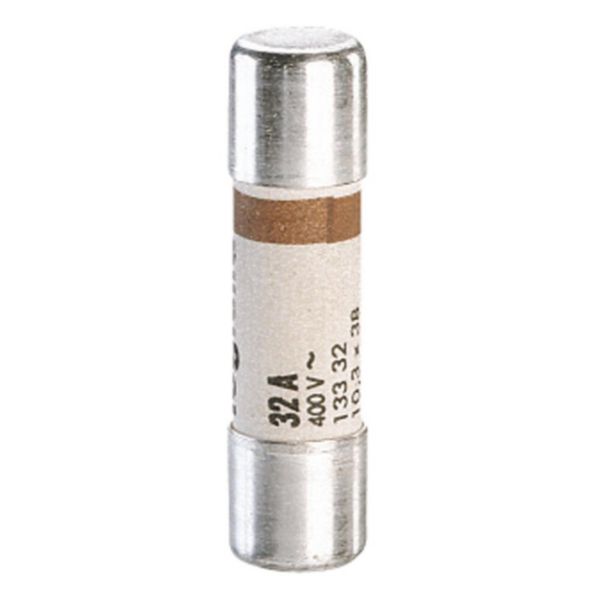

Domestic cartridge fuse - cylindrical type 10.3 x 38 - 32 A - without indicator

Name: Domestic cartridge fuse - cylindrical type 10.3 x 38 - 32 A - without indicator
SKU: 013332

LEGRAND

REF. 013332 EAN. 3245060133320

Compare You can only compare 4 products, you must remove 1 to add this one

Domestic cartridge fuses
Cylindrical10,3 x 38 - Rating : 32 Amps - Voltage ~ : 400 Volts - Rupture capacity Copper : 20000 Amps - Protected section : 6 mm² - Color Indication : Brown

Model	Ceramic fuse
Size	10x38 mm
Rated current	32 A
Depth	38 mm
Width	10.3 mm
Voltage type	AC
Utilization category according to IEC 60269	Other

Rated operating frequency (Min-Max)	50-60 Hz
Type of fuse status indicator	Other
Release characteristic	Fast (F)
Power loss at rated current	3.4 W
Operating / setting temperature (Min-Max)	-25-40 °C
Storage temperature (Min-Max)	-40-70 °C
