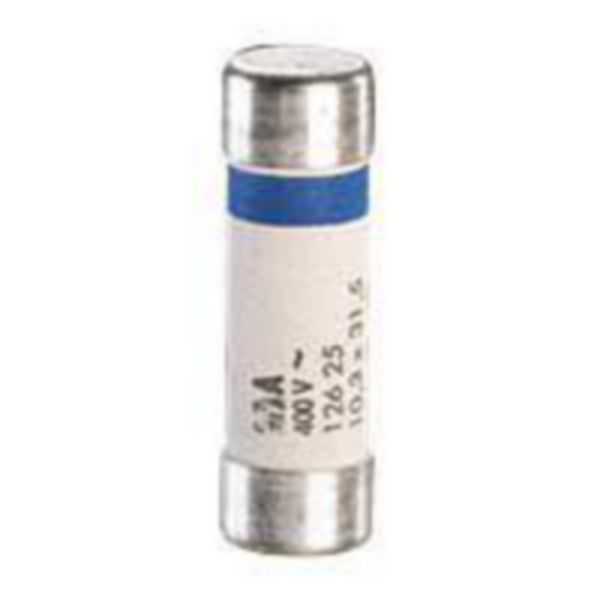

Domestic cartridge fuse - cylindrical type 10.3 x 31.5 - 20 A - without indicator

LEGRAND

Domestic cartridge fuse - cylindrical type 10.3 x 31.5 - 20 A - without indicator

REF. 012620 EAN. 3245060126209
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Domestic cartridge fuses
  • Cylindrical10,3 x 31.5 - Rating : 20 Amps - Voltage ~ : 400 Volts - Rupture capacity Copper : 20000 Amps - Protected section : 4 mm² - Color Indication : Blue

Technical characteristics

Model Ceramic fuse
Size 10x32 mm
Rated current 20 A
Depth 31.5 mm
Width 10.3 mm
Voltage type AC
Utilization category according to IEC 60269 Other
Rated operating frequency (Min-Max) 50-60 Hz
Type of fuse status indicator Other
Release characteristic Fast (F)
Operating / setting temperature (Min-Max) -25-40 °C
Storage temperature (Min-Max) -40-70 °C

Documentation

1 document
Catalogue Commercial Page
ex223001_0091.pdf pdf (0.09 Mo)
