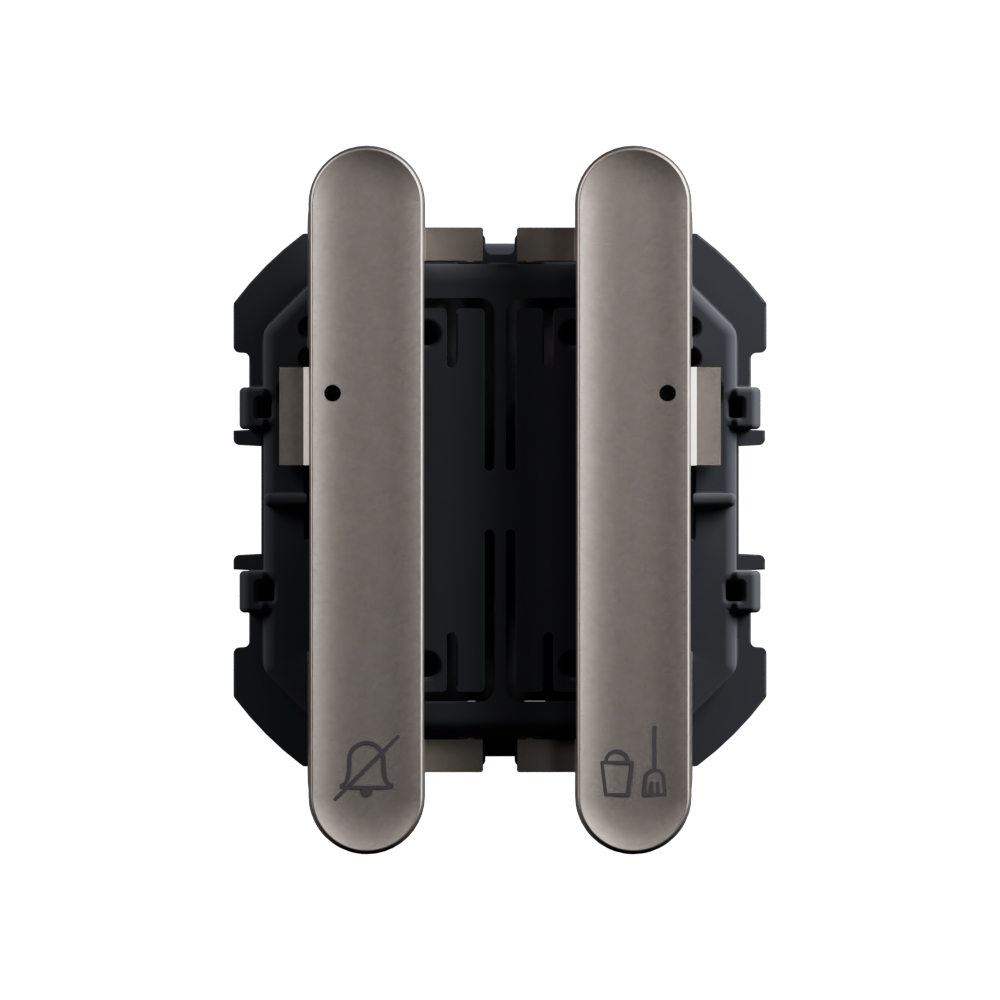

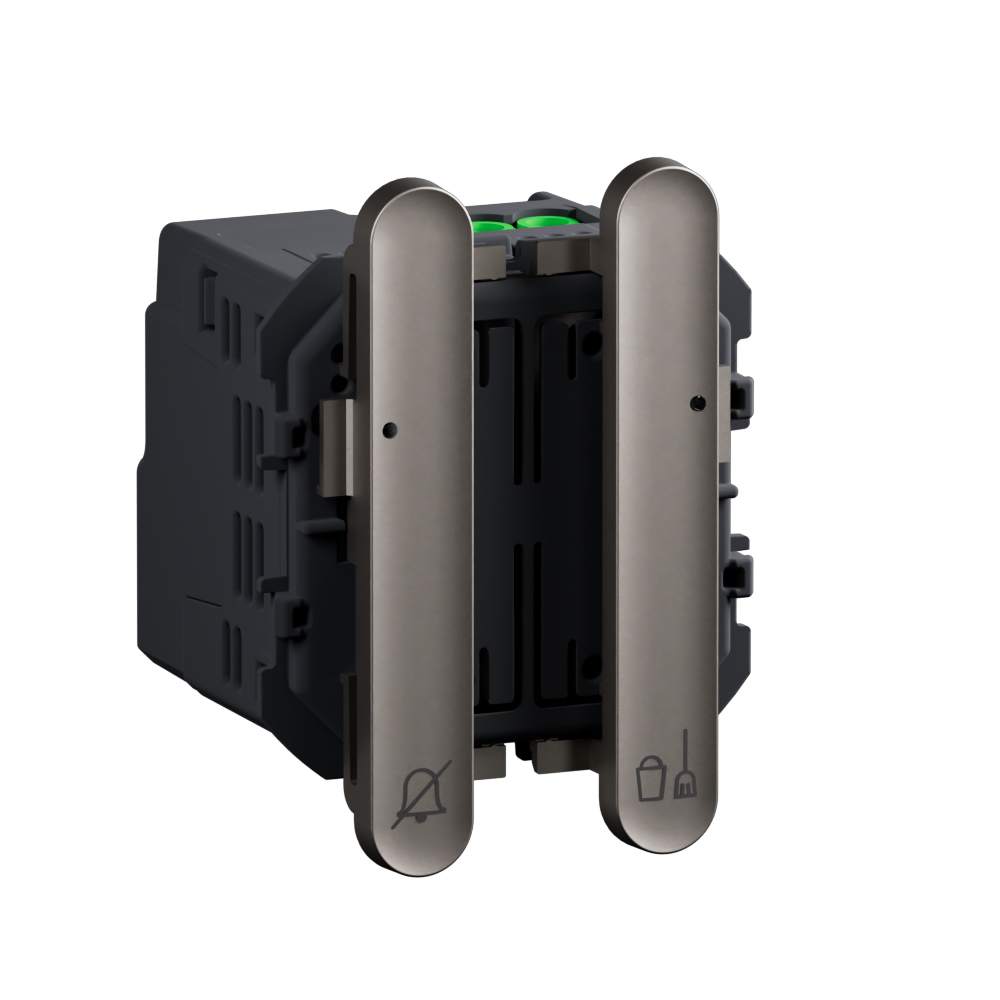

DO NOT disturb/make UP room command Matt titanium Altair - DND/MUR command MT - Push button 240V - Matt thermoplastic titanium finish

Arteor Advance Legrand

DO NOT disturb/make UP room command Matt titanium Altair - DND/MUR command MT - Push button 240V - Matt thermoplastic titanium finish

REF. AA27109MT EAN. 3414972969109
The DO NOT disturb/make UP room command matt titanium altair is a matt, lacquered thermoplastic push button for 240V hotel management systems. Its titanium finish and 0.2mm² to 4mm² capacity ensure reliable, space-efficient installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The DO NOT disturb/make UP room command matt titanium altair is a matt, lacquered thermoplastic push button for 240V hotel management systems. Its titanium finish and 0.2mm² to 4mm² capacity ensure reliable, space-efficient installation.

Product characteristics
  • Do not disturb/make up room command push-button for hotel room management applications
  • Basic element with central cover plate for module frame mounting in Altair hotel systems
  • Rated for 240V operation with mandatory neutral and clear terminal marking for reliable wiring
  • Matt lacquered thermoplastic front in titanium color for durable, low-glare aesthetic integration
  • Compact built-in depth of 34.5mm, suitable for 40mm installation boxes with 0.2mm² to 4mm² conductor capacity

Technical characteristics

Assembly arrangement Basic element with central cover plate
Model Other
Method of operation Push button
Operating principle Electronic
Number of rockers 2
Number of modules (module system) 2
Nominal voltage 240 V
With lighting No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Transparent No
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 34.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.2-4 mm²
Cable section (Min-Max) 0.2-4 mm²

Documentation

1 document
Technical Sheet
F04788EN-00.pdf pdf (0.58 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
