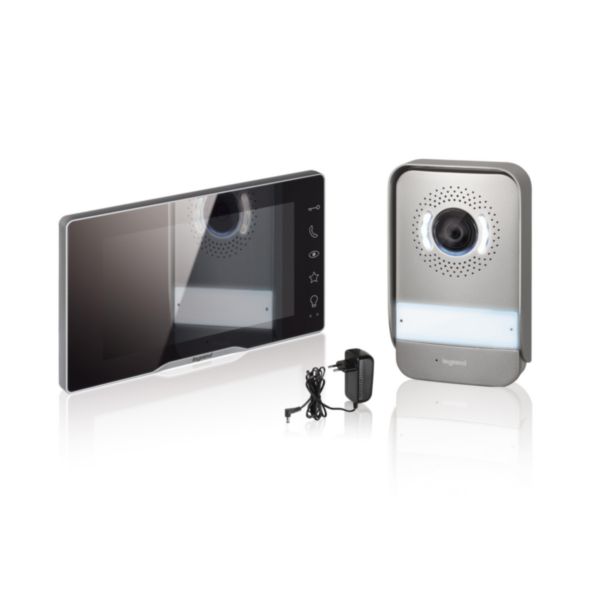

DIY kit mirror 7" screen plug-in

- LEGRAND

DIY kit mirror 7" screen plug-in

REF. 368910 EAN. 3414972469814
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

With video Yes
Number of indoor stations 1
Number of outdoor stations 1
Number of call buttons 2
Installation technique 2-wire
Mounting method indoor station Surface mounted
Colour indoor station Stainless steel
Mounting method outdoor station Surface mounted
Material outdoor station Aluminium
Colour outdoor station Grey
Expandable to max. number of indoor stations 6
Expandable to max. number of outdoor stations 2
Picture system PAL
Property picture system Colour
Overhear protected No
Can be connected to smartphone Yes
Internal communication Yes
Hands free Yes
With day/night function No
Opening angle camera 95 °
Zoom, pan/tilt function No
With memory function No
Screen diagonal 177.8 mm
Screen diagonal (inch) 7 inch
Manual adjustable camera Yes
Label space/information surface Yes
Hearing aid compatible No
Suitable for disabled persons No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Width 208 mm
Height 122 mm
Depth 26.5 mm
Built-in depth 0 mm
Degree of impact strength (IK) IK07
Degree of protection (IP) IP54
Operating / setting temperature -10-40 °C
Storage temperature -25-70 °C
Voltage type AC
Nominal voltage 100-240 V
Frequency 50-60 Hz
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible
Cable section 0.28-0.5 mm²
Fitted with USB plug No
Fitted with rainproof plate protection Yes
With complemantary luminous signal Yes
Mounting method Surface mounted
Vertical fixing center distance 60-103 mm
Horizontal fixing center distance 60-142.5 mm
Control mode Wired
Contains Batteries and/or Accumulator No
Additional unit Yes
Loudness setting Yes
Addressable Yes
Door entry system with mobile application Yes
Remote opening of gate / Electric door opener Yes
Screen brightness setting Yes
Screen contrast setting Yes
Memory video function No
Camera type Fixed
Video recorder angle 95 °
Max distance between internal and external unit 100 m
Communication rank type Other
Connected object No

Documentation

1 document
Instruction Use
LE14050AB.pdf pdf (6.84 Mo)
1 document
Catalogue Commercial Page
ex223001_0846.pdf pdf (0.09 Mo)
