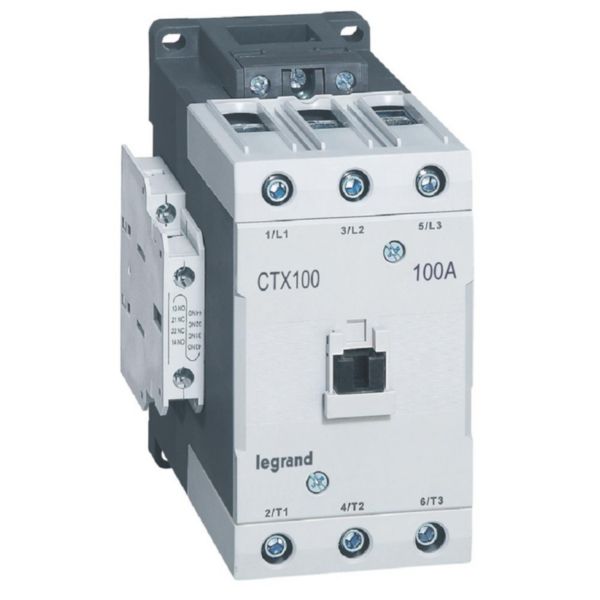

CTX³ - 3-pole contactors - 100A AC-3 rating - Modular version - DC voltage actuation

CTX³ LEGRAND

CTX³ - 3-pole contactors - 100A AC-3 rating - Modular version - DC voltage actuation

REF. 416231 EAN. 3414970402462

Legrand CTX³ contactor : 100A, 3-phase 55 kW (415V), 160A AC-1, 2NO+2NC auxiliary contacts, IEC 60947-4-1, up to 12M mech operations, 35 mm rail mount.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand CTX³ contactor : 100A, 3-phase 55 kW (415V), 160A AC-1, 2NO+2NC auxiliary contacts, IEC 60947-4-1, up to 12M mech operations, 35 mm rail mount.

Product characteristics
  • Rating 100A (AC - 3) for the switching of 3 - ph motors up to 55 kW (415V). Resistive loads up to 160A (AC - 1).
  • Cage terminals capacity : Power 1 x 2,5mm² to 70mm², 2 x 2,5mm² to 50mm² / Coil 0,75mm² to 2,5mm² / Aux. Circuit 0,75mm² to 2,5mm²
  • 2NO + 2NC auxiliary contacts. NC auxiliary contact meets the definition of mirror contact according to IEC 60947 - 4 - 1 standard.Can be equipped with all Legrand CTX3 auxiliaries and Accessories .
  • Endurance: up to 12 million mechanical operations and 2 million electrical operations. Number of operation cycles (AC-3) per hour : 1800.
  • The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Recommendation / Restriction
  • Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads.Read the instructions before installing this product.Use only Legrand branded accessories.

The product's benefits

Installation
  • Possible fixing on 35 mm "top hat" mounting rail (IEC 60715) and on mounting plate. Reduced size to optimize the space available in the cabinet.
Usage
  • Fitted with 2NO + 2NC auxiliary contacts, factory assembled. Engineered to allow an easy replacement of the coil.
Avantages
  • Coil supply possible either on the top or on the botton side.
  • Removable front cover for the visual inspection of arc chambers and contacts

Technical characteristics

Rated control supply voltage DC (Min-Max) 20.4-26.4 V
Voltage type for actuating DC
Number of normally closed contacts as main contact 0
Number of normally open contacts as main contact 3
Type of electrical connection of main circuit Screw connection
Rated operation current Ie at AC-1, 400 V 160 A
Rated operation current Ie at AC-3, 400 V 105 A
Rated operation power at AC-3, 400 V 55 kW
Rated operation current Ie at AC-4, 400 V 75 A
Rated operation power at AC-4, 400 V 37 kW
Number of auxiliary contacts as normally open contact 2
Number of auxiliary contacts as normally closed contact 2
Suitable for distribution board Yes

Documentation

4 documents
Instruction Use
LE07229AB.pdf pdf (2.17 Mo)
Technical Sheet
F01989FR-06.pdf pdf (6.82 Mo)
Technical Sheet
F01989EN-06.pdf pdf (7.72 Mo)
Technical Guide
4 documents
Catalogue Commercial Page
ex223001_0282.pdf pdf (0.09 Mo)
Catalogue Technical Page
ex223001_0292-0293.pdf pdf (0.62 Mo)
Catalogue Technical Page
ex223001_0290-0291.pdf pdf (0.41 Mo)
Catalogue Technical Page
ex223001_0288-0289.pdf pdf (0.1 Mo)
1 document
3D Autocad
416180.dwg dwg (0.18 Mo)
1 document
PEP
LGRP-00209-V01.01-EN.pdf pdf (0.73 Mo)
