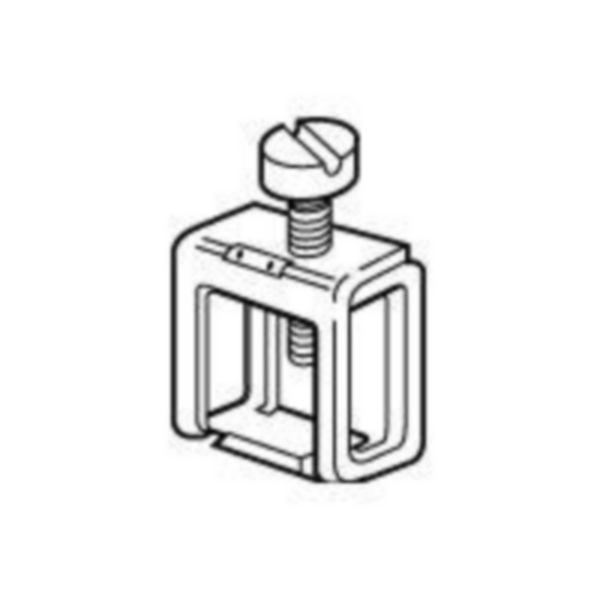

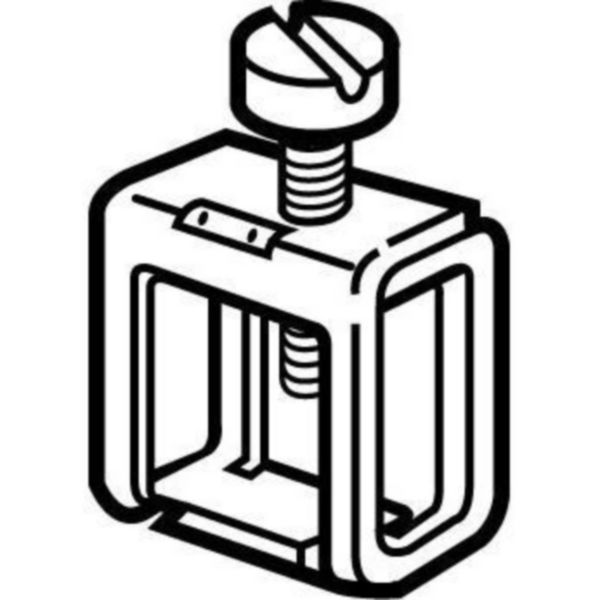

Connector - for non perforated bars - 10 to 35 mm²

LEGRAND

Connector - for non perforated bars - 10 to 35 mm²

REF. 037362 EAN. 3245060373627
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Atlantic stainless steel and Marina cabinets - equipment
  • Copper bars Connectors for bar Cat.No 0 373 49 - 10 to 35 mm² (supplied with M6 CHC 5 mm)

Technical characteristics

Busbar thickness (Min-Max) 4-4 mm
Busbar width (Min-Max) 12-12 mm
Suitable for Flat rail
Max. conductor cross section 35 mm²
Max. rated operation current Ie 160 A
Suitable for round conductor connection Yes
Suitable for sector conductor connection Yes
Suitable for strip conductor connection No

Documentation

1 document
Catalogue Commercial Page
ex223001_0432.pdf pdf (0.08 Mo)
