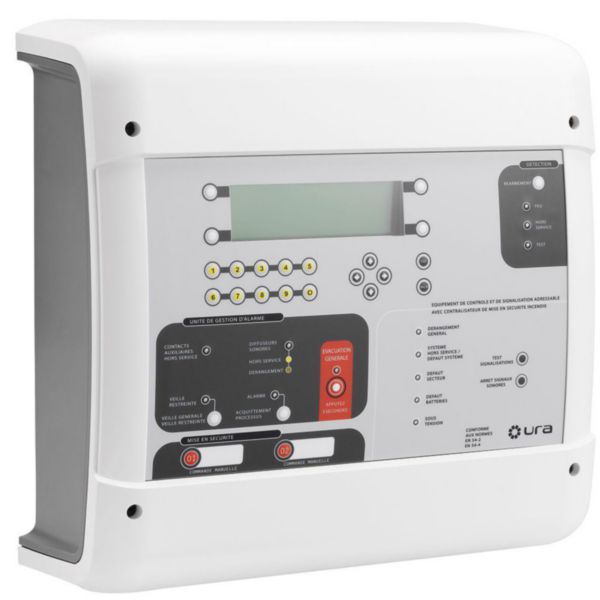

Name: Centrale type 1 ECS CMSI ADR 256
SKU: UR-315010

Centrale type 1 ECS CMSI ADR 256

URA

Centrale type 1 ECS CMSI ADR 256

REF. UR-315010 EAN. 3613400154302

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting method	Surface mounting
Suitable for bus connection	Yes
Radio connection	No
Interface external	Yes
Number of detection groups	99
Number of detector addresses	126
Number of outputs for acoustic signal generators	4
Number of outputs for optical signal generators	4
Emergency power supply integrated	No
With power adaptor	Yes
Integrated dial device	Yes
Operating voltage	230 V
Addressable	Yes
Autonomy	12 h
Height	400 mm
Width	400 mm
Depth	140 mm

degree of impact strength (IK)	IK05
Degree of protection (IP)	IP30
Operating / setting temperature (Min-Max)	-5-+40 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Sound level	60 dB
Halogen free	Yes
With complemantary luminous signal	No
Supplied remote control	No
Vertical fixing center distance (Min-Max)	310-310 mm
Horizontal fixing center distance (Min-Max)	345-345 mm
Control mode	Wired
Contains Batteries and/or Accumulator	No
Loudness setting	No
Screen brightness setting	No
Screen contrast setting	No
Product use function	Alarm systems
