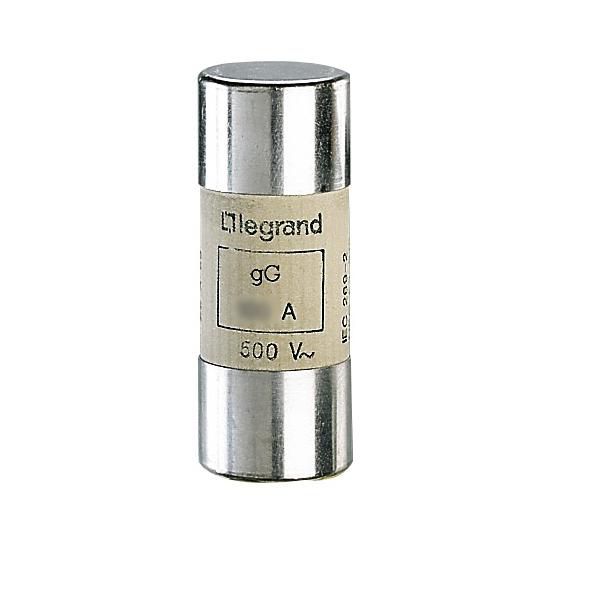

Cartridge fuse 22 x 58 mm - type gG - without stricker - 20 A

LEGRAND

Cartridge fuse 22 x 58 mm - type gG - without stricker - 20 A

REF. 015320 EAN. 3245060153205
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Rupture capacity 100000 A - Rated voltage 500V~
  • Dimension 22 x 58 mm.
  • Ceramic body and silver - plated contacts
  • Conform to IEC/EN 60269-1 and 2, NFC 60-200.

The product's benefits

Installation
  • Compatible with Legrand fuse carriers SP 58.

Technical characteristics

Model Ceramic fuse
Size 22x58 mm
Rated current 20 A
Depth 58 mm
Width 22 mm
Voltage type AC/DC
Utilization category according to IEC 60269 GG
Rated operating frequency 42-62 Hz
Type of fuse status indicator Other
Power loss at rated current 3.4 W
Operating / setting temperature -25-40 °C
Storage temperature -40-70 °C
