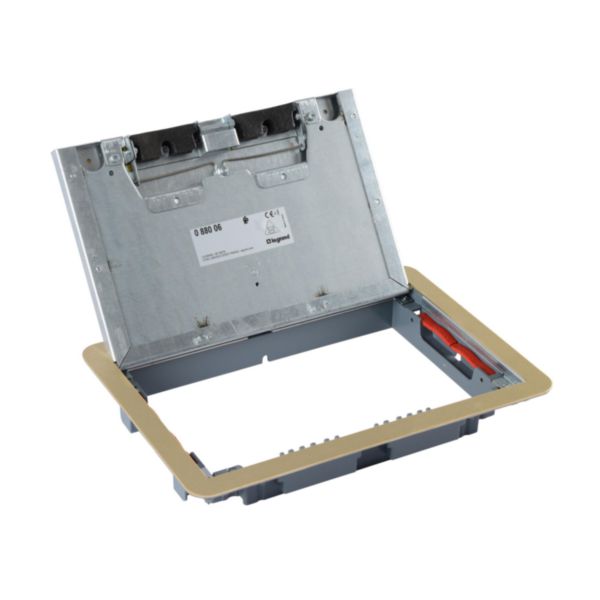

Brass Lid and Trim of Standard box for verticals supports with 8 modules or horizontals with 12 modules

Name: Brass Lid and Trim of Standard box for verticals supports with 8 modules or horizontals with 12 modules
SKU: 088006

LEGRAND

REF. 088006 EAN. 3414970754998

Compare You can only compare 4 products, you must remove 1 to add this one

Accepts all kind of coating with maximum 8mm thickness.
Removable Lid to facilitate connections to the wiring devices
Rigid cable exit in metal, with a retaining stop in opening position and a foam to protect cords.
Discreet and easy opening by one hand thanks to its central button.
Once mounted, the floor box have a global load resistance 5000N (vertical load applied through a large surface diam, 130mm)

Floor box modular to compose : matchs with your needs (type of installation, number of modules, finishes), gives time for reflexion, protects the product during the progression of the work site (the installation follows the steps of the site).

Two possible orientations for the cable exit : Lid and Trim easily reversible to 180 degrees

A universal range available in three sizes, adapted to any kind of floor (raised floors, screed floors) and upgradable because equipped with commons wiring devices supports (a standard floor box can become a flush one without touching the electrical connexions).
Installation without tool : clips-on and unclips easily in the support kit : quick mounting and inexpensive maintenance.
Association of metal lid robustness and brushed Brass elegance.

Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes
Suitable for wet cleaning	Yes
Outer width	203 mm
Outer length	286 mm
Length built-in dimension	264 mm
Width built-in dimension	181 mm
Min. built-in depth	68 mm
