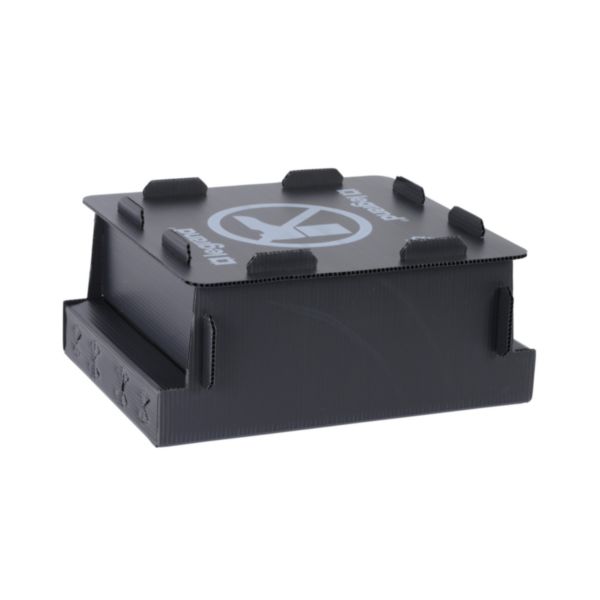

Name: Auto-adjusting backbox for ACCESS floor boxes capacity 12 modules horizontal and vertical.
SKU: 088170

Auto-adjusting backbox for ACCESS floor boxes capacity 12 modules horizontal and vertical.

LEGRAND

Auto-adjusting backbox for ACCESS floor boxes capacity 12 modules horizontal and vertical.

REF. 088170 EAN. 3414971132573

Compare You can only compare 4 products, you must remove 1 to add this one

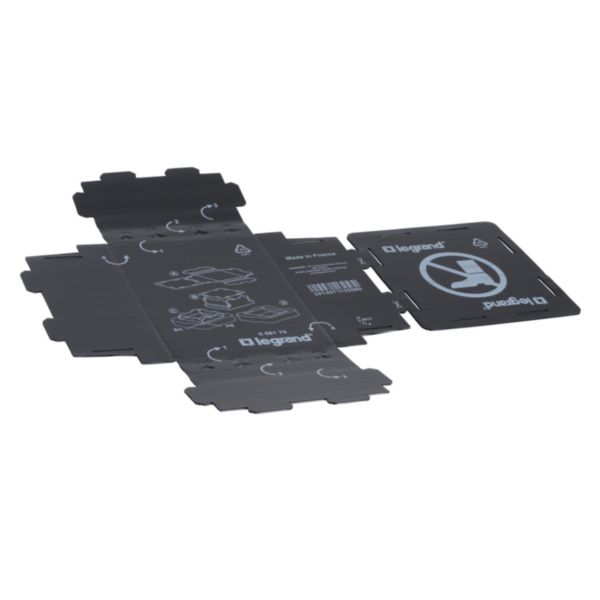

The backbox is delivered flat and is easy to fold during installation.
Floor height : minimum 80mm (screed floor only), maximum 100mm ( screed floor + floor covering).
Two pre - cut faces for diameter pipes 25mm to 30mm.
Material : alveolar polypropylene (PVC)
Comply with IEC 60-670-1 et 60-670-23 standards

Auto-adjustable : saves time because no need to adjust the height of the backbox.

Nominal dimension	303 mm
Min. height finishing layer	75 mm
Levelling range (Min-Max)	75-110 mm
Suitable for subfloor duct countersunk (closed)	Yes
Suitable for subfloor duct overhead closed	Yes
Duct height (Min-Max)	25-30 mm
Duct width (Min-Max)	25-30 mm

Built-in opening for floor column	No
Built-in opening for built-in unit	Rectangular
Number of appliances to build in	1
Material side wall	Plastic
Suitable for placing of sealing	No
Decoupling possibility cover from base unit	No
Bottom plate	No

3 documents

Select all

Technical Sheet

F02634FR_00.pdf pdf (1.36 Mo)

Technical Sheet

F02634EN_00.pdf pdf (1.48 Mo)

Instruction Use

D009448AA_7061B.pdf pdf (1.53 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_1134.pdf pdf (0.09 Mo)

1 document

Select all

3D Autocad

3D_LG-088170.stp ifc (0.85 Mo)
