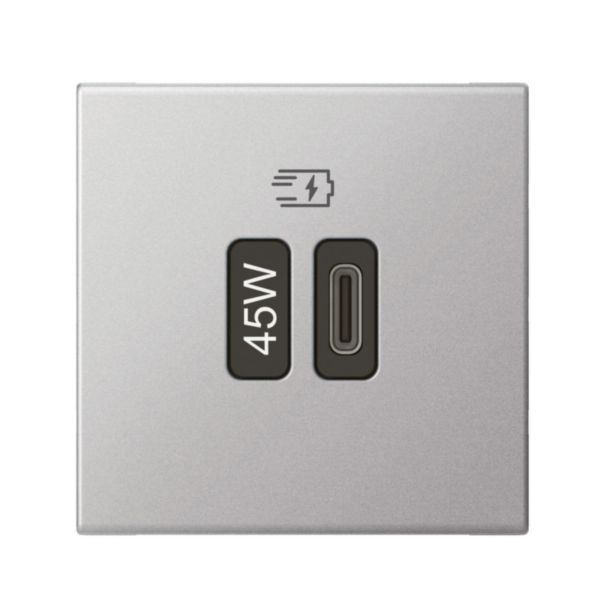

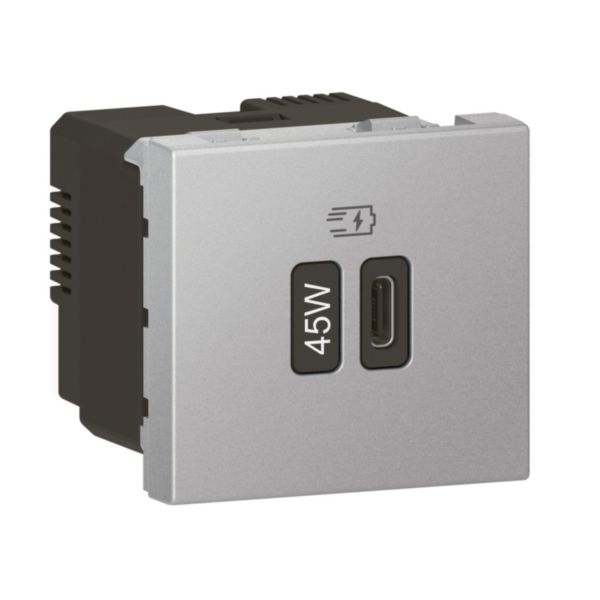

Arteor™ - USB charger 2mod 45W type C power delivery Soft Aluminium

Name: Arteor™ - USB charger 2mod 45W type C power delivery Soft Aluminium
SKU: 575484

Arteor™ LEGRAND

REF. 575484 EAN. 3414972505352

Compare You can only compare 4 products, you must remove 1 to add this one

Number of modules (module system)	2
Model	Other
Number of ports USB-A	0
Number of ports USB-C	1
Operating voltage (Min-Max)	220-240 V
Frequency (Min-Max)	50-60 Hz
Max. output current	3000 mA
Output voltage (Min-Max)	5-20 V
Power consumption	0.074 W
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	Aluminium
Device width	45 mm
Device height	45 mm
Device depth	45 mm
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04

Antimicrobial treatment	No
Wireless	No
Built-in depth	36.5 mm
Operating / setting temperature (Min-Max)	5-40 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	AC
Power Delivery	Yes
USB Output Power	45
Supply current (Min-Max)	0.8-0.8 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²

2 documents

Select all

Technical Sheet

F03822EN-00.pdf pdf (0.13 Mo)

Technical Sheet

F03822FR-00.pdf pdf (0.11 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0568.pdf pdf (0.11 Mo)
