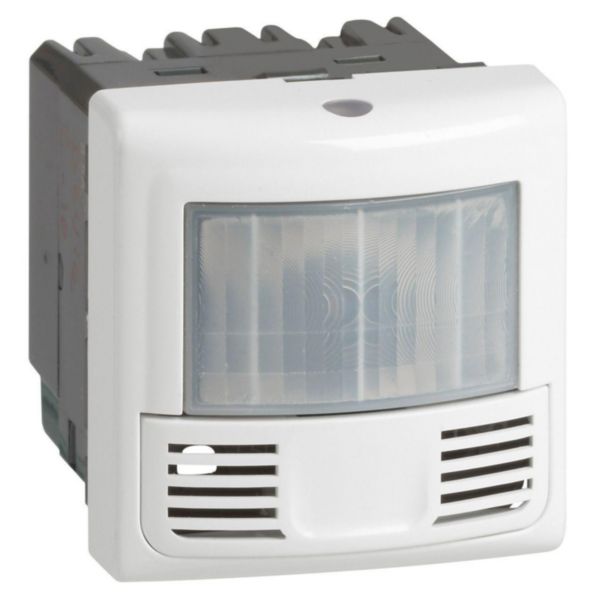

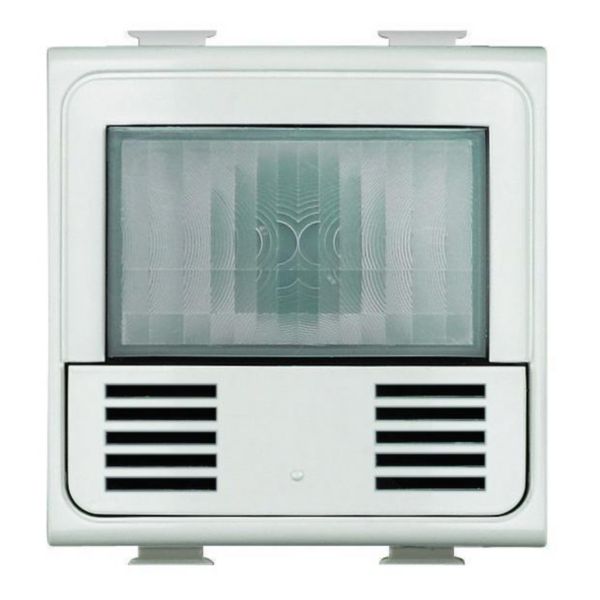

Arteor Green Switch white dual technology presence sensor, passive infrared and ultrasound (PIR + US)

My Home LEGRAND

Arteor Green Switch white dual technology presence sensor, passive infrared and ultrasound (PIR + US)

REF. 574048 EAN. 3245065740486
Arteor Green Switch white dual technology presence sensor combines PIR and ultrasound for reliable detection in work areas. Flush mounted on Bus SCS, it offers adjustable delay and brightness threshold with auto-manual operation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Arteor Green Switch white dual technology presence sensor combines PIR and ultrasound for reliable detection in work areas. Flush mounted on Bus SCS, it offers adjustable delay and brightness threshold with auto-manual operation.

Product characteristics
  • Flush mounted
  • Dual tech infrared and ultrasound
  • Arteor white
  • Bus SCS
  • delay time 5s-59min and brightness threshold 20-1275lux

The product's benefits

Installation
  • In standard boxes like wiring devices range
Usage
  • Dual tech suitable for work spaces

Technical characteristics

With movement sensor Yes
Mounting method Flush-mounted
Constant light control Yes
HVAC-control No
Networkable Yes
Suitable for wireless transmission No
Creep-under protection Yes
Mounting height 1.2 m
Max. reach sideways 3 m
Max. reach frontally 8 m
Diameter reach on floor 6 m
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Animal zone No
Staircase light controller Yes
Combination movement sensor/push button switch Yes
With orientation lighting No
Material Plastic
Material quality Thermoplastic
Halogen free No
Suitable for degree of protection (IP) IP20
Operation mode switch No
Min. switch-on time 30 s
Max. duty cycle 256 min
Detection angle horizontal (Min-Max) 0-180 °
Colour White
RAL-number (similar) 9003
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Addressable No
Contains Batteries No
Connected object No

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
1.570
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

4 documents
Technical Sheet
Technical Sheet pdf (0.39 Mo)
Technical Sheet
Technical Sheet pdf (0.39 Mo)
Technical Sheet
S000077070EN-1.pdf pdf (0.77 Mo)
Technical Sheet
S000077070FR-1.pdf pdf (0.88 Mo)
3 documents
Product Environmental Profile (PEP)
LGRP-00888-V01.01-EN.pdf pdf (0.57 Mo)
RoHS DIRECTIVE
REACH DECLARATION
2 documents
Brochure
Catalogue Commercial Page
ex223001_0647.pdf pdf (0.08 Mo)
