Arteor Advanced - Connected indoor temperature and humidity sensor matt titanium - Zigbee smart comfort management

Arteor Advance Legrand

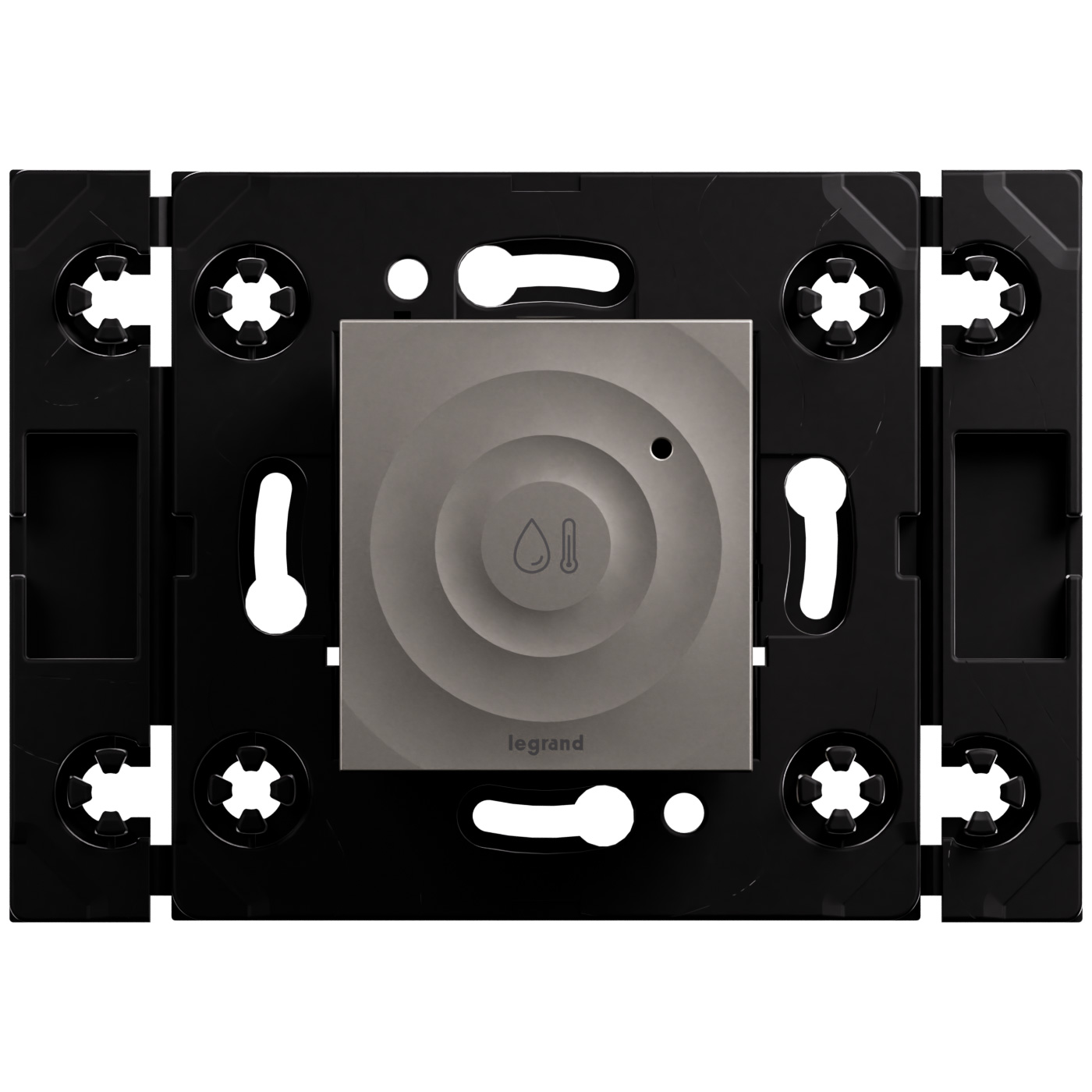

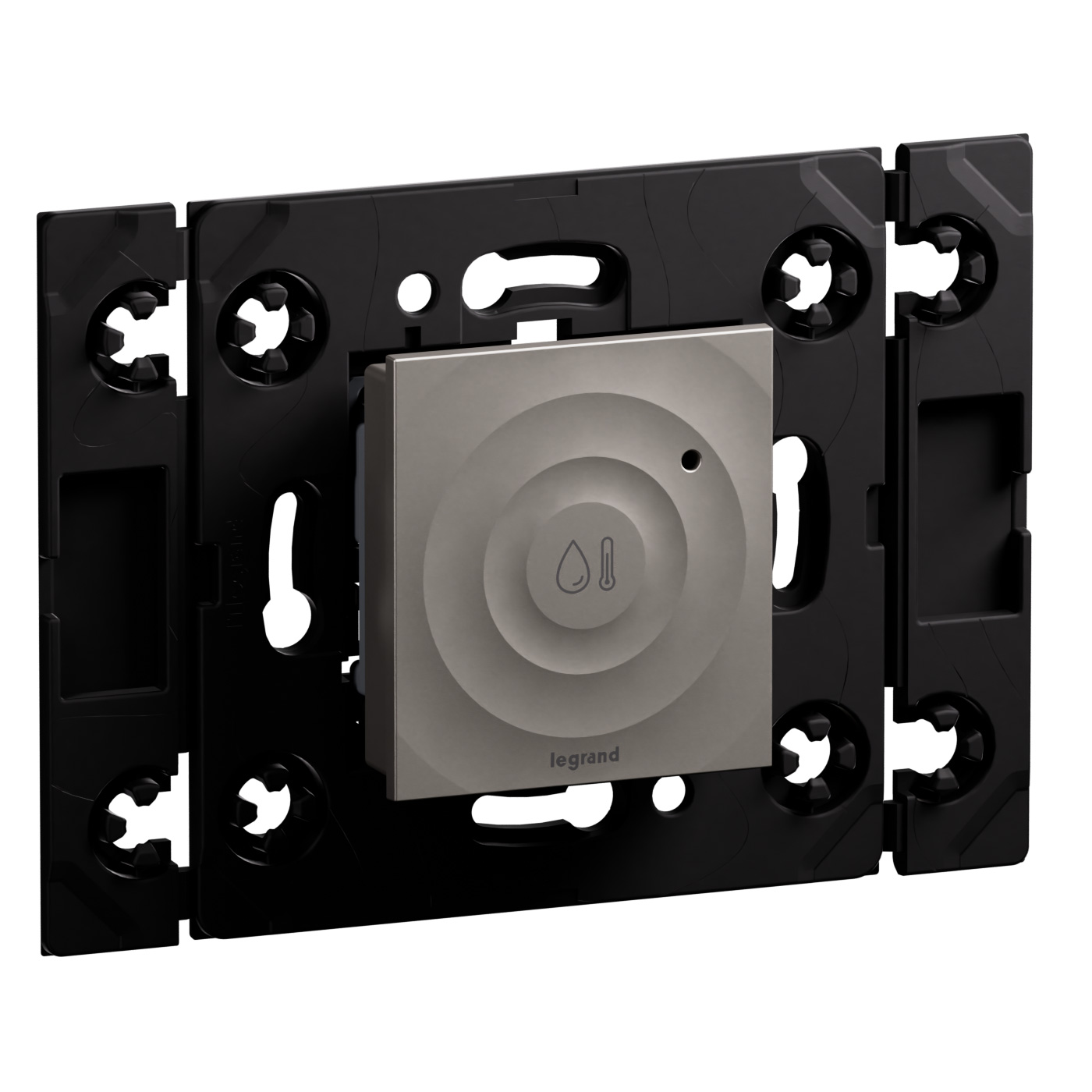

Arteor Advanced - Connected indoor temperature and humidity sensor matt titanium - Zigbee smart comfort management

REF. AC5601MT EAN. 3414973102857
The indoor sensor measures ambient temperature and humidity in real time and displays them in your Home + Control app. It sends instant alerts when thresholds are exceeded and enables smart automations for electric heating and ventilation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The indoor sensor measures ambient temperature and humidity in real time and displays them in your Home + Control app. It sends instant alerts when thresholds are exceeded and enables smart automations for electric heating and ventilation.

Product characteristics
  • Sends instant alerts to the Home + Control app as soon as user-defined temperature or humidity thresholds (within -5 to 35° C range) are exceeded, enabling proactive thermal comfort management.
  • Enables creation of custom automations for electric heating and ventilation based on measured ambient temperature and relative humidity, optimizing comfort and energy usage.
  • Can be paired with an outdoor temperature and light sensor to adjust indoor comfort scenarios according to external weather conditions for more accurate climate control.
  • Measures ambient temperature and relative humidity in real time and displays data directly in the Home + Control app for immediate monitoring, analysis, and control.
  • Battery-powered, surface-mounted connected indoor sensor (IP20, IK04, 116.6x81.8x15mm) using Zigbee and Home + Control app (iOS/Android) for easy installation and smartphone-based programming.
Recommendation / Restriction
  • Requires prior installation of a Control Pack or a Control Module. Must be fitted with a compatible Altair faceplate.

The product's benefits

Installation
  • Ultra-easy installation: no wiring, battery-powered, can be mounted in just a few minutes using screws or double-sided adhesive. Can also be screw-mounted onto a flush-mounting box and integrated into Altair faceplates (2-gang and above).
Usage
  • Enables automations (such as controlling electric heating or ventilation based on ambient conditions) and sends alerts according to defined thresholds.
Avantages
  • Optimizes indoor comfort while reducing energy consumption thanks to smart automations in the Home + Control app.
  • Can work in synergy with other sensors to create advanced, fully customized scenarios.

Technical characteristics

Indication None
Multiple display No
Measuring range (Min-Max) -5-35 °C
Thermal element type B No
Thermal element type E No
Thermal element type J No
Thermal element type K No
Thermal element type N No
Thermal element type R No
Thermal element type S No
Thermal element type T No
Thermal element RTD No
Measurement of differential temperature Yes
Measurement of relative air humidity Yes
Measurement of material humidity No
Measured value memory Yes
Interface No
Separate sensor No
Infrared measurement No
Width 116.6 mm
Height 81.8 mm
Depth 15 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type DC
Nominal voltage (Min-Max) 2.8-3.3 V
Supply current (Min-Max) 0.5-1 A
Standby consumption 5 mA
Colour Black
RAL-number 9011
Halogen free Yes
Mounting method Surface mounted
Contains Batteries Yes
Addressable No
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol No
Connectable by Internet box No
Compatible voice assistants Amazon Alexa , Apple Siri , Google Assistant
Product use function Thermal comfort management
Application name Home + Control
Programming way Smartphone apps

Documentation

1 document
Technical Sheet
F04818EN-00.pdf pdf (0.25 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
BIM Data
