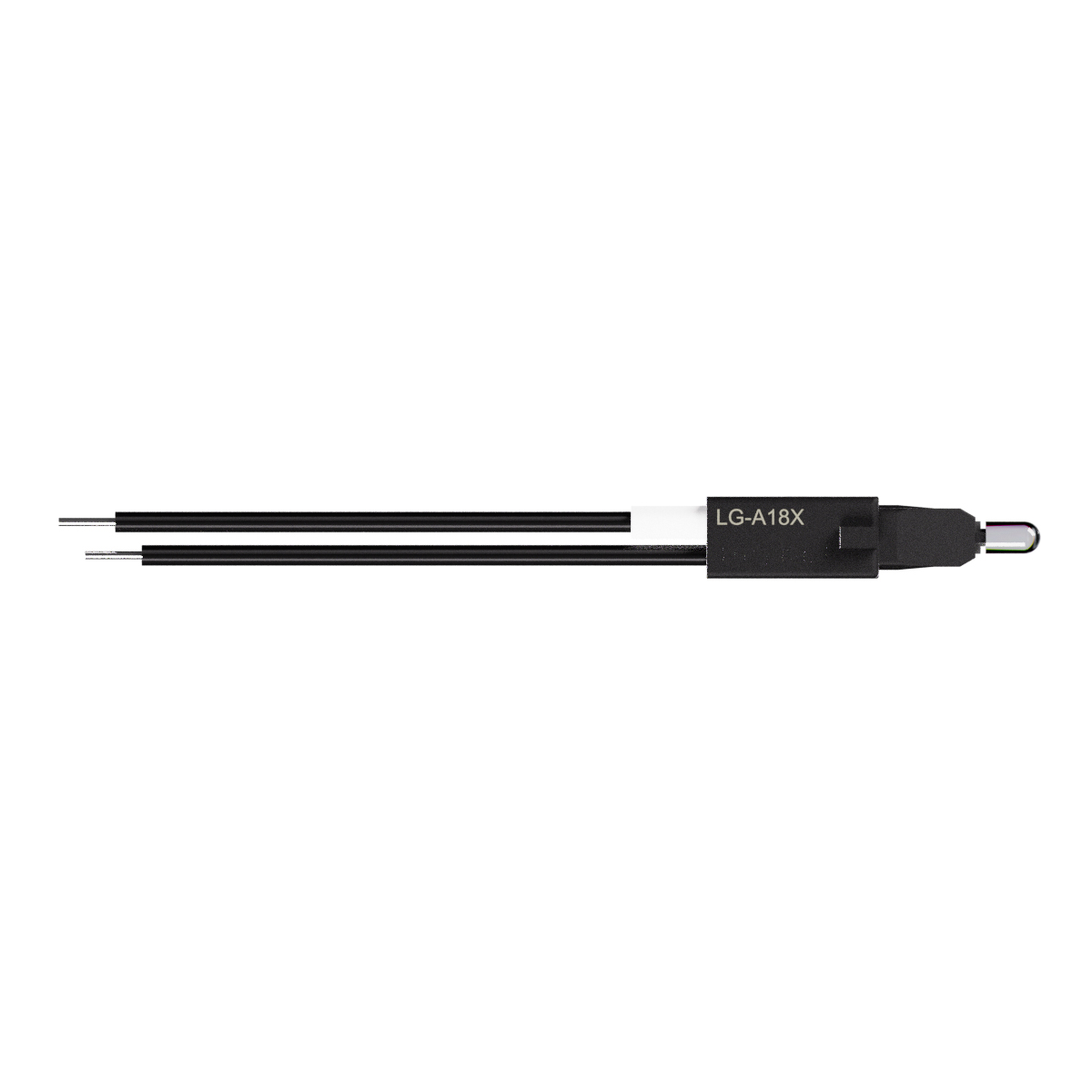

Arteor Advance - Warm White LED for switches with locator 230V 0.85mA to 1.2mA - 0.2W to 0.3W LED indication lamp - 2800K subtle halo

Arteor Advance Legrand

Arteor Advance - Warm White LED for switches with locator 230V 0.85mA to 1.2mA - 0.2W to 0.3W LED indication lamp - 2800K subtle halo

REF. A187 EAN. 3414972957670
LED for switches that allows the control to be easily located in the dark, with warm white 2800K light and 230V/0.85mA to 1.2mA consumption. This 0.2W to 0.3W locator LED creates a subtle halo enhancing night visibility without glare.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

LED for switches that allows the control to be easily located in the dark, with warm white 2800K light and 230V/0.85mA to 1.2mA consumption. This 0.2W to 0.3W locator LED creates a subtle halo enhancing night visibility without glare.

Product characteristics
  • Operating range 230V/(0.85mA to 1.2mA) for low-consumption locator function in compatible switches
  • LED indication and signaling lamp for Arteor Advance switches with integrated locator function
  • Designed specifically for locator applications to easily identify the switch position in the dark
  • Warm white LED (approx. 2800K) providing a discreet, comfortable guidance light without glare
  • Compact LED module (0.2W to 0.3W, width 7.6mm, total length 137.3mm) optimized for integration in Legrand switch mechanisms
Recommendation / Restriction
  • Recommended for use with dark-finish plates (matte black, matte titanium, midnight blue, etc.)

The product's benefits

Avantages
  • Creates a subtle halo blending effortlessy with the product finish, adding elegance to the room

Technical characteristics

Antimicrobial treatment No
Lamp power (Min-Max) 0.2-0.3 W
Lamp voltage (Min-Max) 235-245 V
Width 7.6 mm
Technology LED
Halogen No
Krypton No
Xenon No
Colour Colourless
Colour temperature 2800 K
Total length 137.3 mm
Suitable for torches No
Suitable for pointer No
Suitable for round flashing luminaire No

Documentation

2 documents
RoHS DIRECTIVE
REACH DECLARATION
