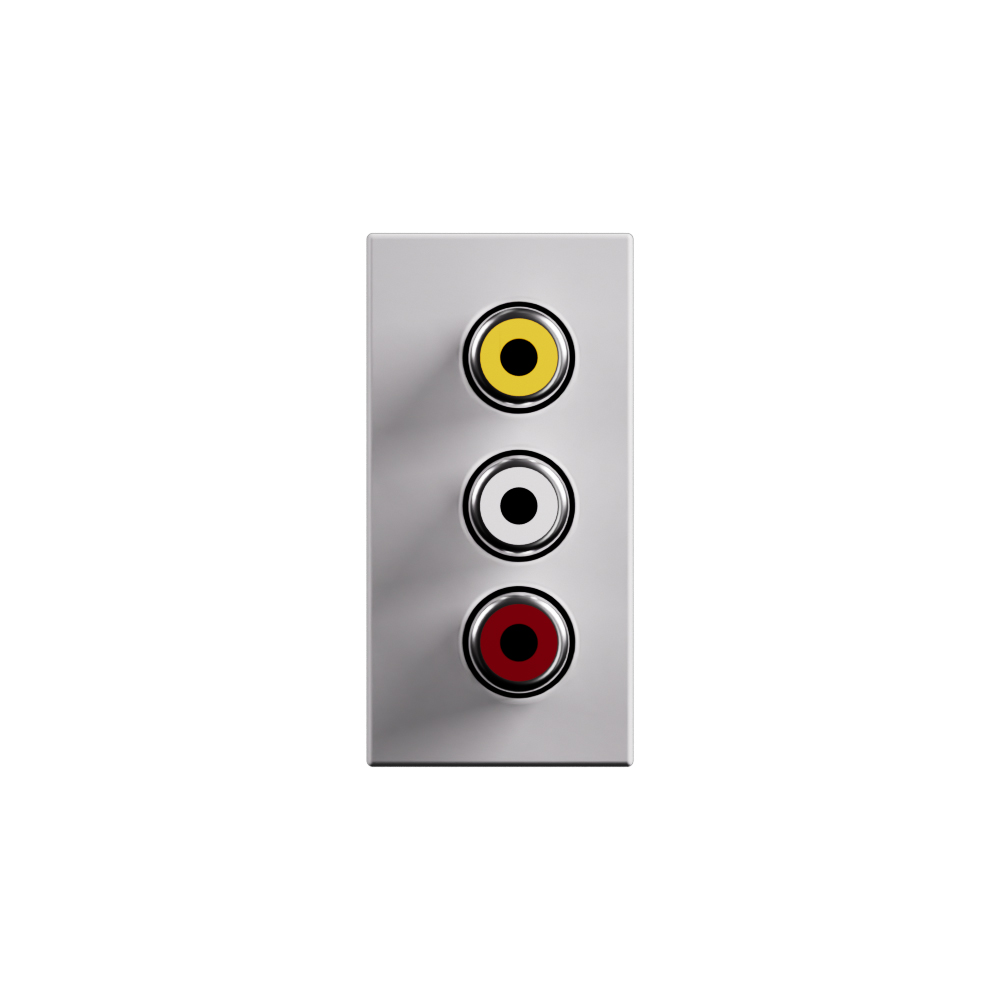

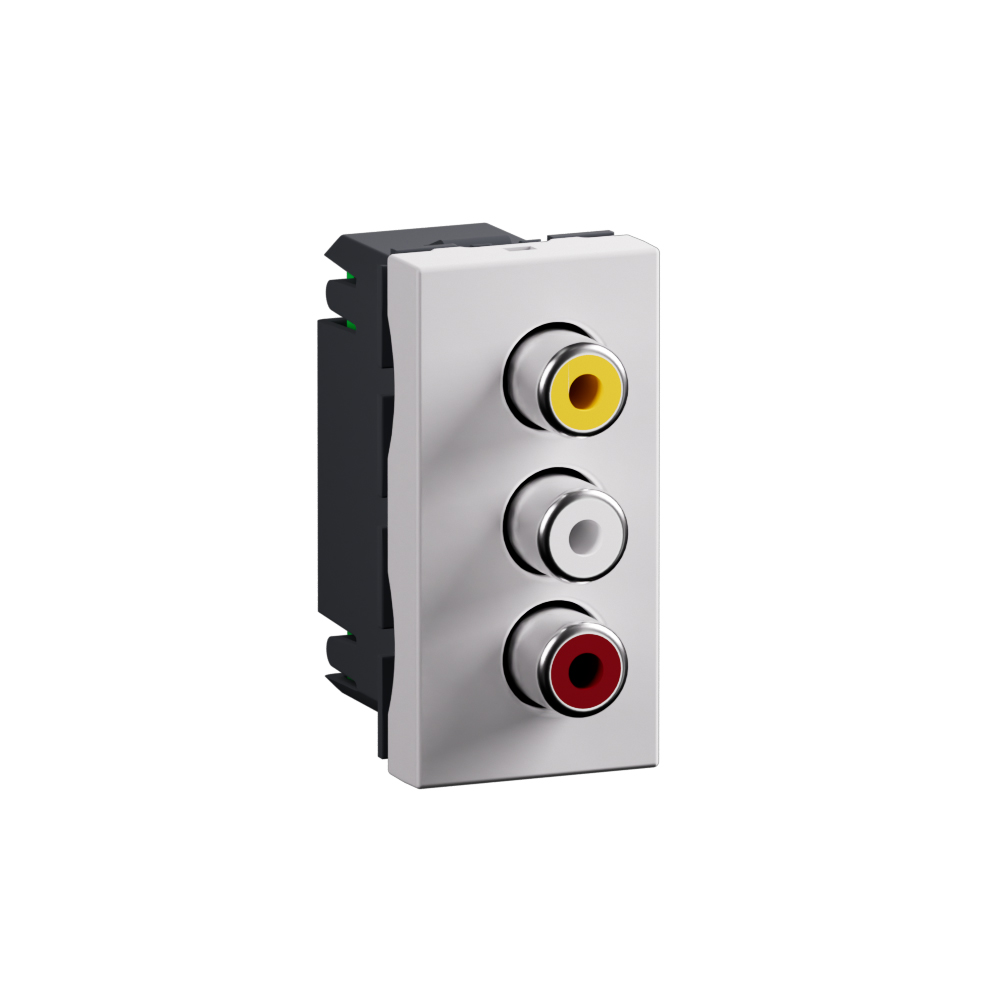

Arteor Advance - Triple rca 1 module matt white - 3 female rca audio/video connectors - 1-module snap-in insert IP41 IK04

Arteor Advance Legrand

Arteor Advance - Triple rca 1 module matt white - 3 female rca audio/video connectors - 1-module snap-in insert IP41 IK04

REF. AC4442MW EAN. 3414972957601
This triple RCA 1 module matt white insert provides three female RCA connectors for audio/video distribution. Its halogen-free thermoplastic construction and snap-in mounting ensure safe, reliable integration.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This triple RCA 1 module matt white insert provides three female RCA connectors for audio/video distribution. Its halogen-free thermoplastic construction and snap-in mounting ensure safe, reliable integration.

Product characteristics
  • Triple RCA female connector insert for RCA/S-Video communication applications, 1-module configuration for structured AV installations.
  • Designed for module frame mounting with engage (snap) fastening, suitable for three RCA connectors with straight outlet direction for clean panel integration.
  • Matt white thermoplastic front (similar to RAL 9003) with lacquered surface, halogen free for compliance with modern building and low-emission requirements.
  • Compact form factor with 22.5mm width, 45mm height, and 23.8mm built-in depth, compatible with installation boxes with minimum 40mm depth.
  • Rated IP41 and IK04, operating temperature range -5 to 35° C and storage temperature range -10 to 70° C, ensuring reliable performance in typical indoor environments.

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization RCA/S-Video
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Female
Imprintable label Without indication field
With imprint No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 1
Suitable for number of connectors 3
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
Suitable for degree of protection (IP) IP41
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Min. depth of built-in installation box 40 mm
Built-in depth 23.8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

2 documents
RoHS DIRECTIVE
REACH DECLARATION
