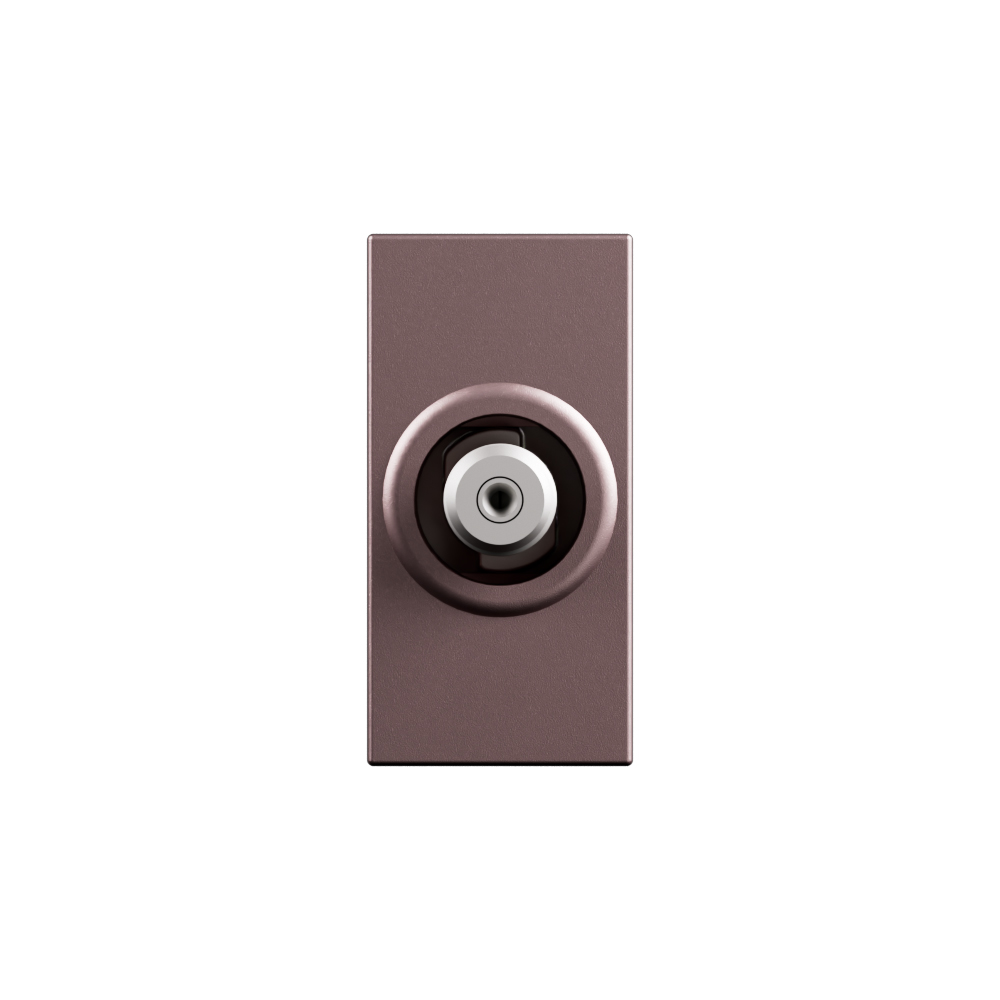

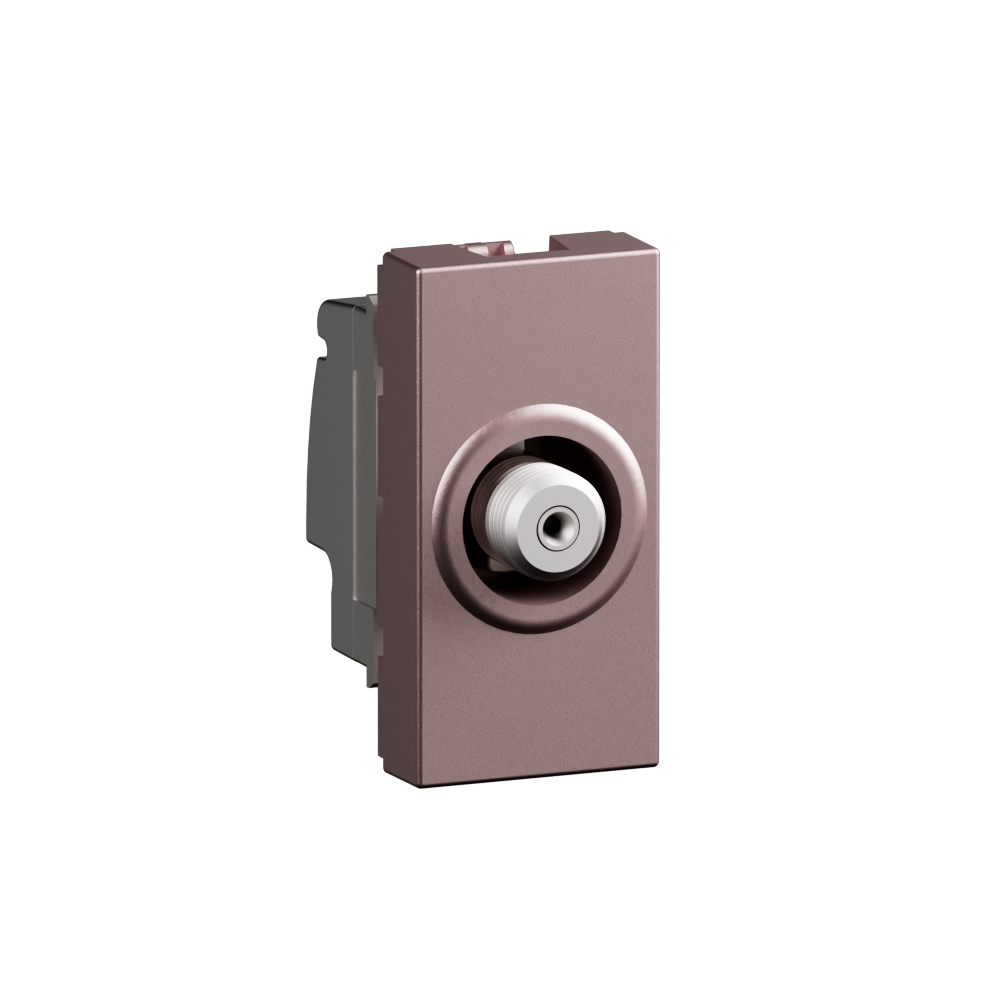

Arteor Advance - Television f type socket rose - One-module TV F-type end socket - 0-2400MHz low-attenuation 1dB/1.5dB - UHD TV

Arteor Advance Legrand

Arteor Advance - Television f type socket rose - One-module TV F-type end socket - 0-2400MHz low-attenuation 1dB/1.5dB - UHD TV

REF. AC4100RS EAN. 3414972926997
For Dvbt, Cablecast and satellite installation, this rose TV F type end socket ensures UHD TV quality with Class A shielding and LTE-ready 4G protection. Its low attenuation and 0-2400MHz band support stable, high-fidelity RF distribution.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For Dvbt, Cablecast and satellite installation, this rose TV F type end socket ensures UHD TV quality with Class A shielding and LTE-ready 4G protection. Its low attenuation and 0-2400MHz band support stable, high-fidelity RF distribution.

Product characteristics
  • One-module TV F-type end socket for antenna distribution systems
  • Rose finish front plate matching Arteor Advance aesthetic for visible installations
  • Low tap loss of 1dB at 860MHz for minimal signal attenuation in TV distribution
  • Single-outlet, module-frame mounting with basic element and central cover plate, 22.5x45x35.5mm
  • Wideband TV/SAT frequency range 0-2400MHz, LTE-ready and UHD TV compatible
Recommendation / Restriction
  • Recommended coaxial cable 17/19 vatc

The product's benefits

Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Model End socket
Type of socket outlet TV
DAB+ No
Mounting method Module frame
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 1 dB
Tap loss at 2150 MHz 1.5 dB
Number of outlets 1
Suitable for cable modem No
TV frequency band (Min-Max) 0-2400 MHz
Suitable for remote power supply Yes
Colour Other
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP21
degree of impact strength (IK) IK03
Device width 22.5 mm
Device height 45 mm
Device depth 35.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 23.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
