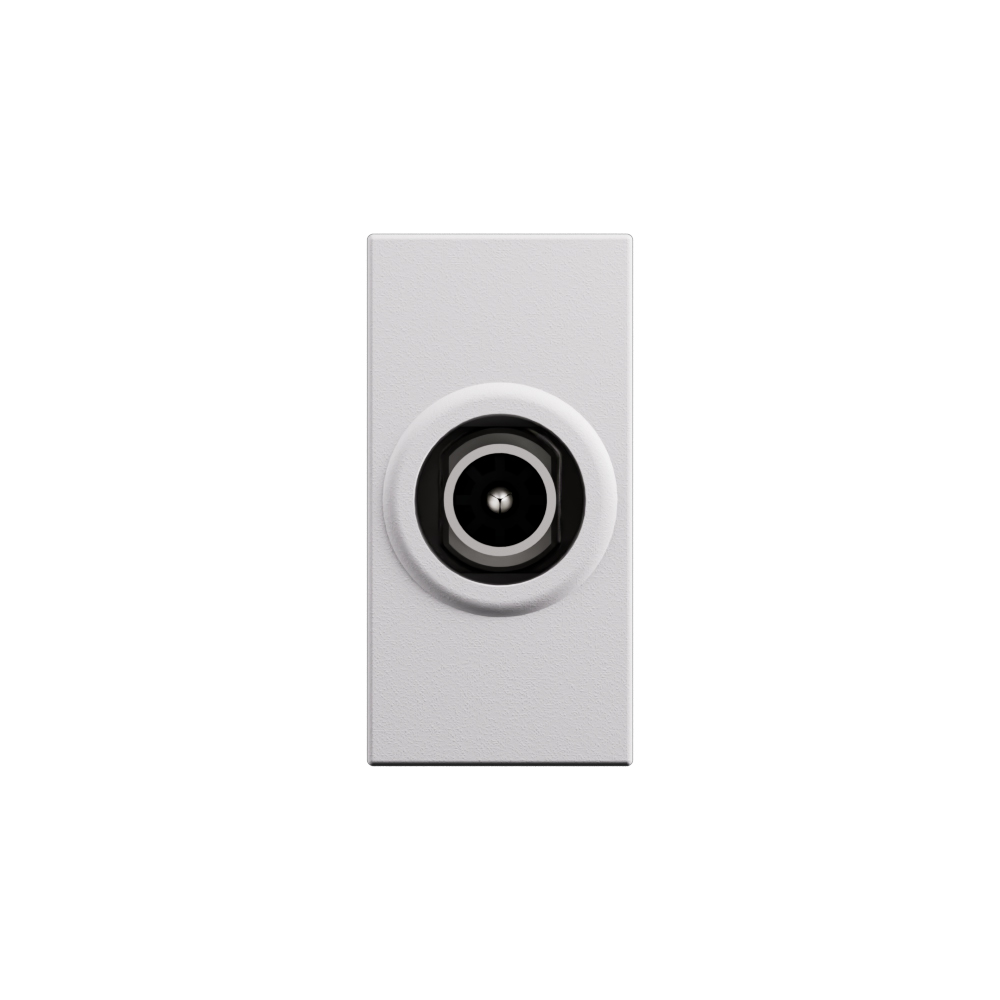

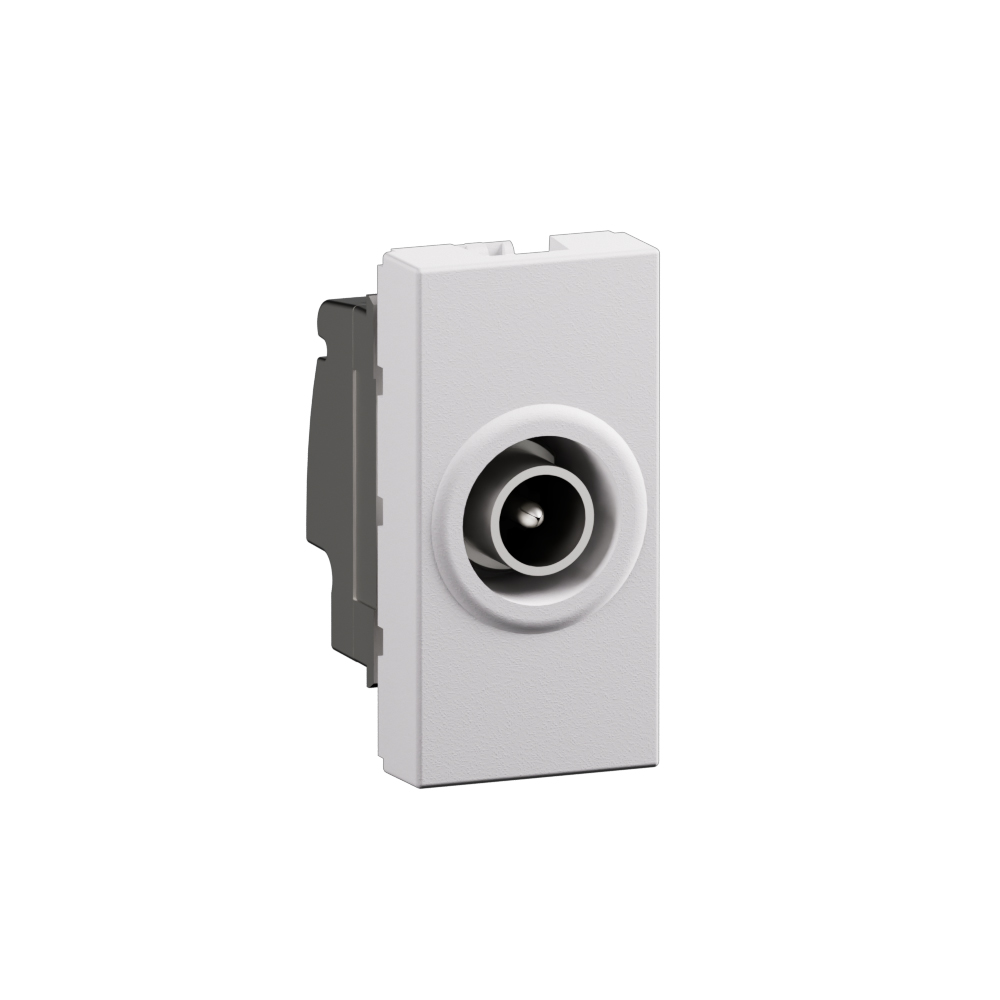

Arteor Advance - Television 9.5mm male socket matt white - Matt white thermoplastic finish - TV/SAT 0-2400MHz low attenuation 1dB IP21

Arteor Advance Legrand

Arteor Advance - Television 9.5mm male socket matt white - Matt white thermoplastic finish - TV/SAT 0-2400MHz low attenuation 1dB IP21

REF. AC4103MW EAN. 3414972761925
For Dvbt, Cablecast and satellite installation, this matt white 9.5mm male TV end socket ensures UHD TV quality with Class A shielding. Its low attenuation and 0-2400MHz band make it LTE ready (4G protected).
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For Dvbt, Cablecast and satellite installation, this matt white 9.5mm male TV end socket ensures UHD TV quality with Class A shielding. Its low attenuation and 0-2400MHz band make it LTE ready (4G protected).

Product characteristics
  • TV 9.5mm male end socket for antenna installations
  • Matt white finish (similar to RAL 9003) for seamless integration with Arteor Advance range
  • Low tap loss of 1dB at 860MHz for minimal signal attenuation
  • Single TV male outlet, basic element with central cover plate, module frame mounting
  • Wide TV/SAT frequency band 0-2400MHz, suitable for remote power supply
Recommendation / Restriction
  • Recommended coaxial cable 17/19 vatc

The product's benefits

Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Model End socket
Type of socket outlet TV
DAB+ No
Mounting method Module frame
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 1 dB
Tap loss at 2150 MHz 1.5 dB
Number of outlets 1
Suitable for cable modem No
TV frequency band (Min-Max) 0-2400 MHz
Suitable for remote power supply Yes
Colour White
RAL-number (similar) 9003
Surface protection Untreated
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP21
degree of impact strength (IK) IK03
Device width 22.5 mm
Device height 45 mm
Device depth 32.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 23.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
