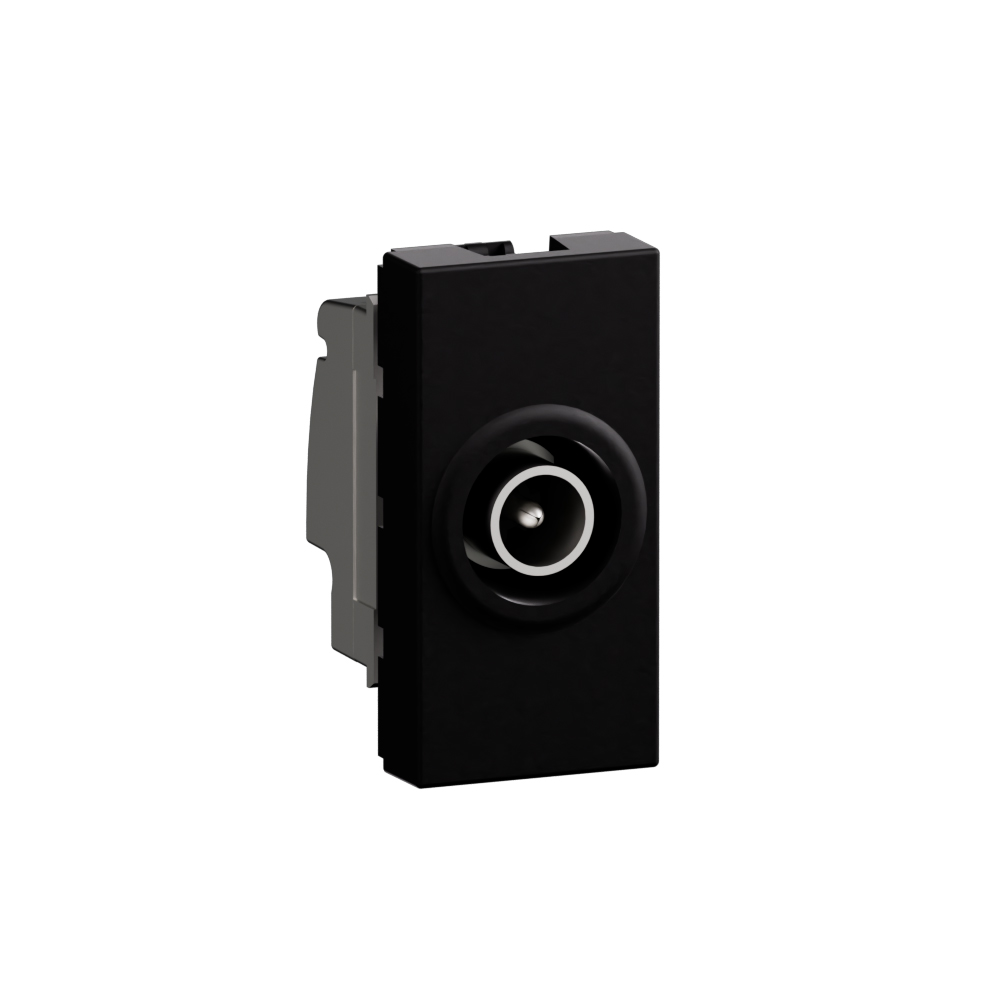

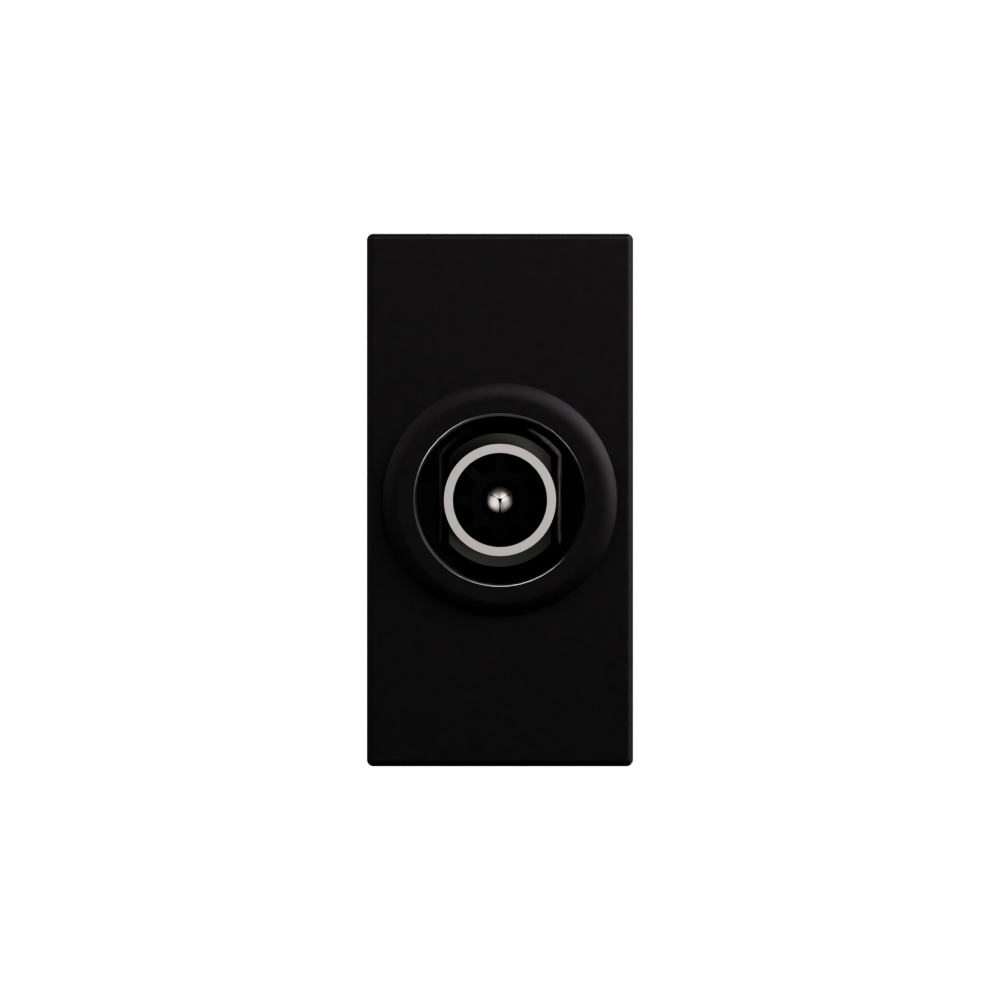

Arteor Advance - Television 9.5mm male socket matt black - TV/SAT 0-2400MHz UHD compatible - Low attenuation 1dB IP21

Arteor Advance Legrand

Arteor Advance - Television 9.5mm male socket matt black - TV/SAT 0-2400MHz UHD compatible - Low attenuation 1dB IP21

REF. AC4103MB EAN. 3414972761802
For Dvbt, Cablecast and satellite installation. UHD TV quality compatible with TV/SAT 0-2400MHz band and low attenuation (1dB at 860MHz, 1.5dB at 2150MHz). Class A shielded star socket, LTE ready (4G protected), deep matt black.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For Dvbt, Cablecast and satellite installation. UHD TV quality compatible with TV/SAT 0-2400MHz band and low attenuation (1dB at 860MHz, 1.5dB at 2150MHz). Class A shielded star socket, LTE ready (4G protected), deep matt black.

Product characteristics
  • TV 9.5mm male end socket for antenna installations, basic element with central cover plate, 1 outlet
  • Matt black thermoplastic front with lacquered surface, matching the Arteor Advance aesthetic
  • Low attenuation with tap loss of 1dB at 860MHz for high-quality TV signal transmission
  • Male TV connector, module frame mounting, 1-module width (22.5x45x32.5mm) for compact integration
  • Wideband TV/SAT frequency range 0-2400MHz, suitable for remote power supply and LTE-ready UHD TV applications
Recommendation / Restriction
  • Recommended coaxial cable 17/19 vatc

The product's benefits

Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Deep black with a smooth matte finish

Technical characteristics

Model End socket
Type of socket outlet TV
DAB+ No
Mounting method Module frame
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 1 dB
Tap loss at 2150 MHz 1.5 dB
Number of outlets 1
Suitable for cable modem No
TV frequency band (Min-Max) 0-2400 MHz
Suitable for remote power supply Yes
Colour Black
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP21
degree of impact strength (IK) IK03
Device width 22.5 mm
Device height 45 mm
Device depth 32.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 23.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
