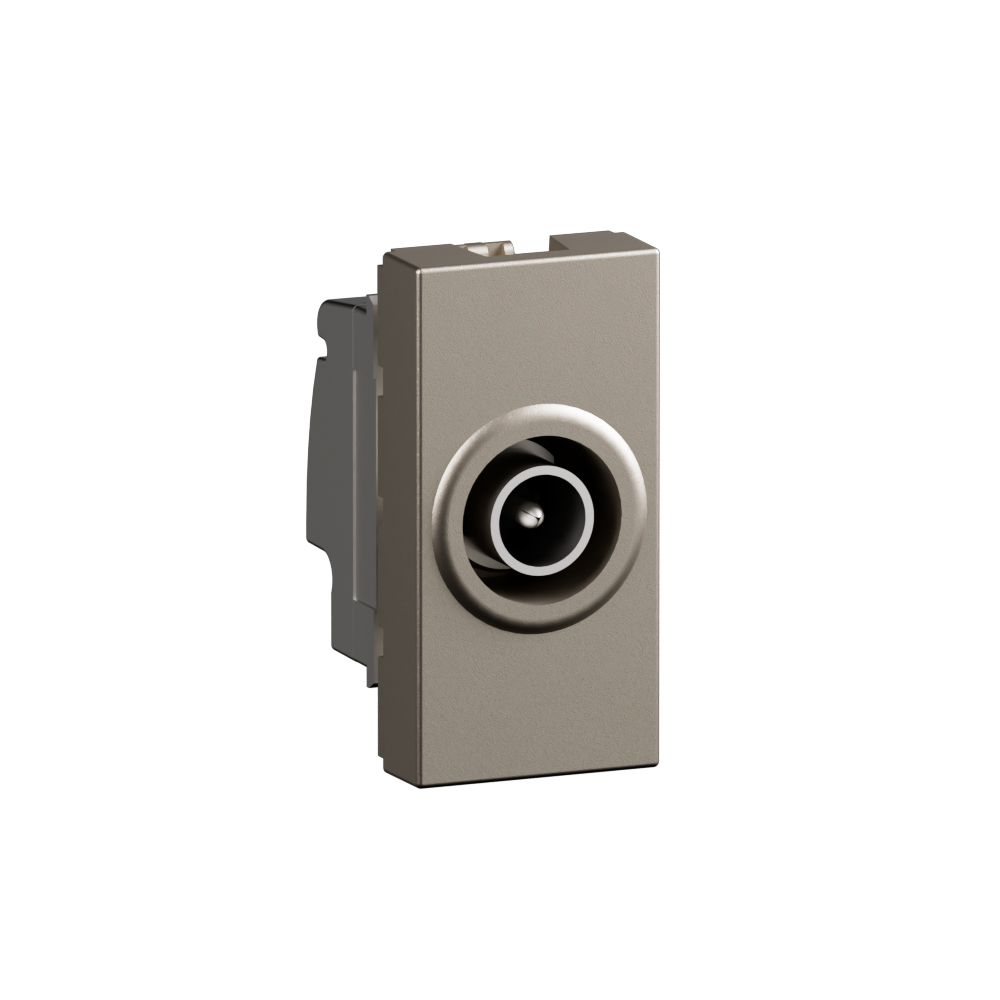

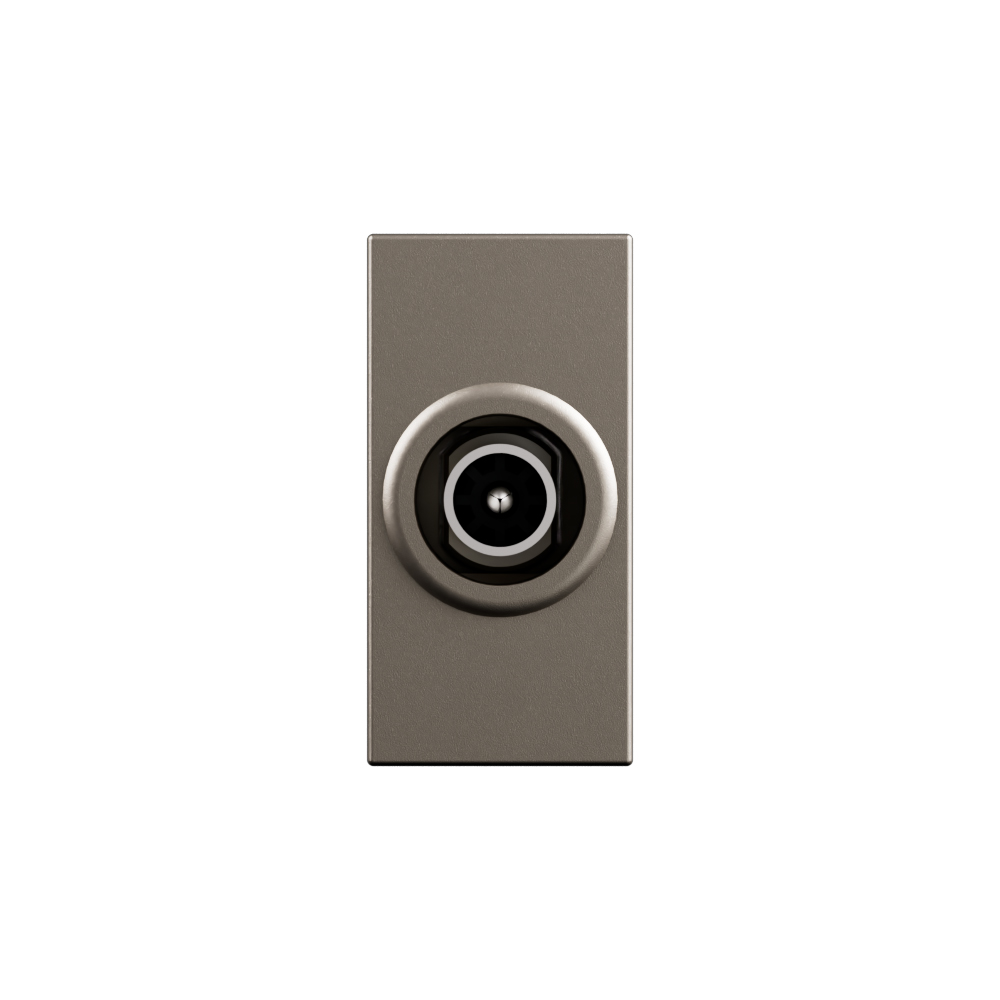

Arteor Advance - Television 9.5mm male socket champagne - TV/SAT 0-2400MHz UHD compatible - Low attenuation 1dB end socket IP21

Arteor Advance Legrand

Arteor Advance - Television 9.5mm male socket champagne - TV/SAT 0-2400MHz UHD compatible - Low attenuation 1dB end socket IP21

REF. AC4103CH EAN. 3414972927024
For Dvbt, Cablecast and satellite installation, this Class A shielded TV 9.5mm male end socket ensures UHD TV quality with low attenuation (1dB at 860MHz), LTE ready (4G protected), 0MHz to 2400MHz compatible.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For Dvbt, Cablecast and satellite installation, this Class A shielded TV 9.5mm male end socket ensures UHD TV quality with low attenuation (1dB at 860MHz), LTE ready (4G protected), 0MHz to 2400MHz compatible.

Product characteristics
  • TV 9.5mm male end socket for antenna installations, basic element with central cover plate, 1 output
  • Champagne (gold) matt lacquered finish aligned with the Arteor Advance range for premium aesthetic integration
  • Low attenuation with tap loss of 1dB at 860MHz and 1.5dB at 2150MHz for high-quality signal transmission
  • Male TV connector, module frame mounting, 1-module thermoplastic, halogen-free construction for robust professional use
  • Wideband TV/SAT frequency range 0-2400MHz, suitable for remote power supply, IP21, IK03, operating temperature -5-35° C
Recommendation / Restriction
  • Recommended coaxial cable 17/19 vatc

The product's benefits

Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Model End socket
Type of socket outlet TV
DAB+ No
Mounting method Module frame
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 1 dB
Tap loss at 2150 MHz 1.5 dB
Number of outlets 1
Suitable for cable modem No
TV frequency band (Min-Max) 0-2400 MHz
Suitable for remote power supply Yes
Colour Gold
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP21
degree of impact strength (IK) IK03
Device width 22.5 mm
Device height 45 mm
Device depth 32.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 23.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
