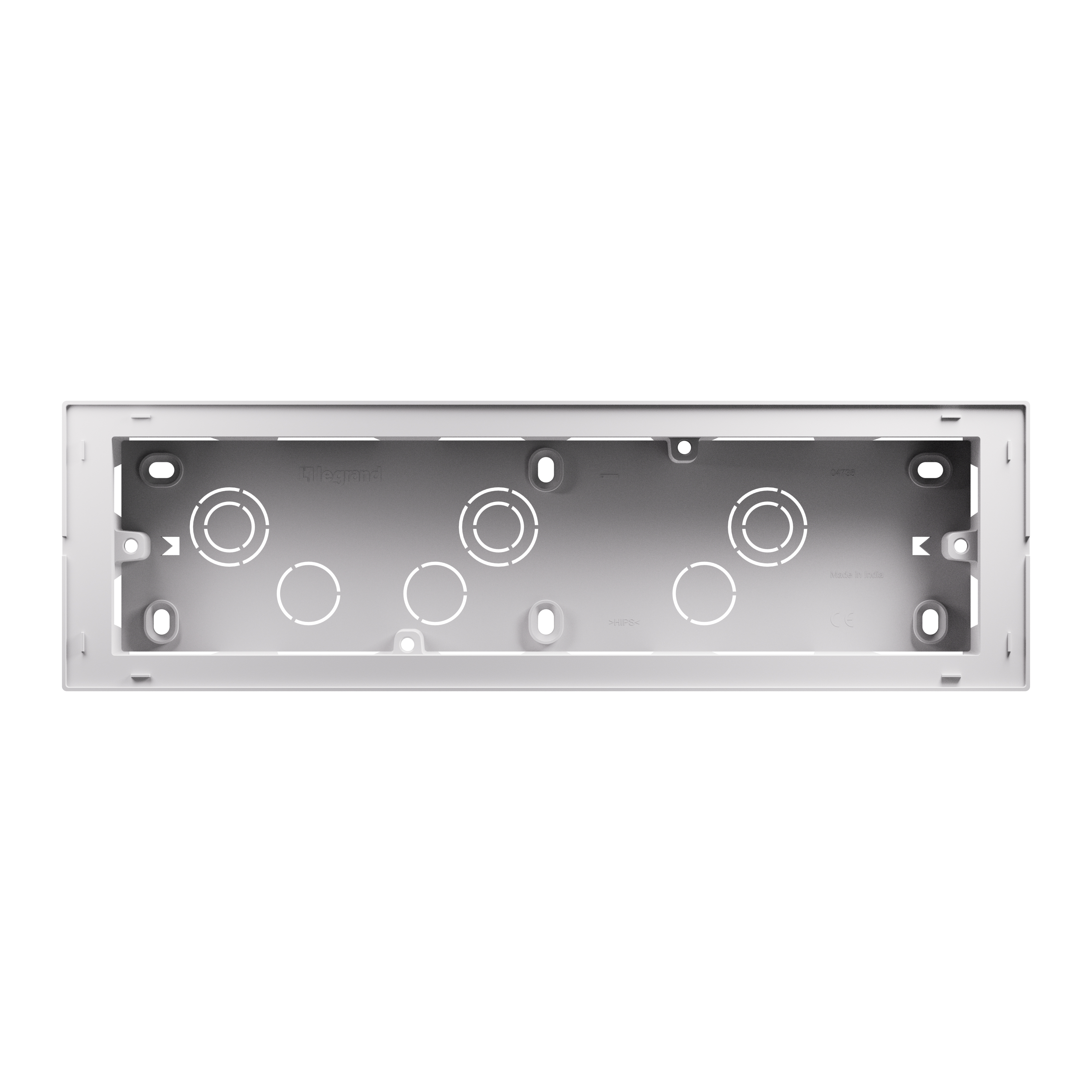

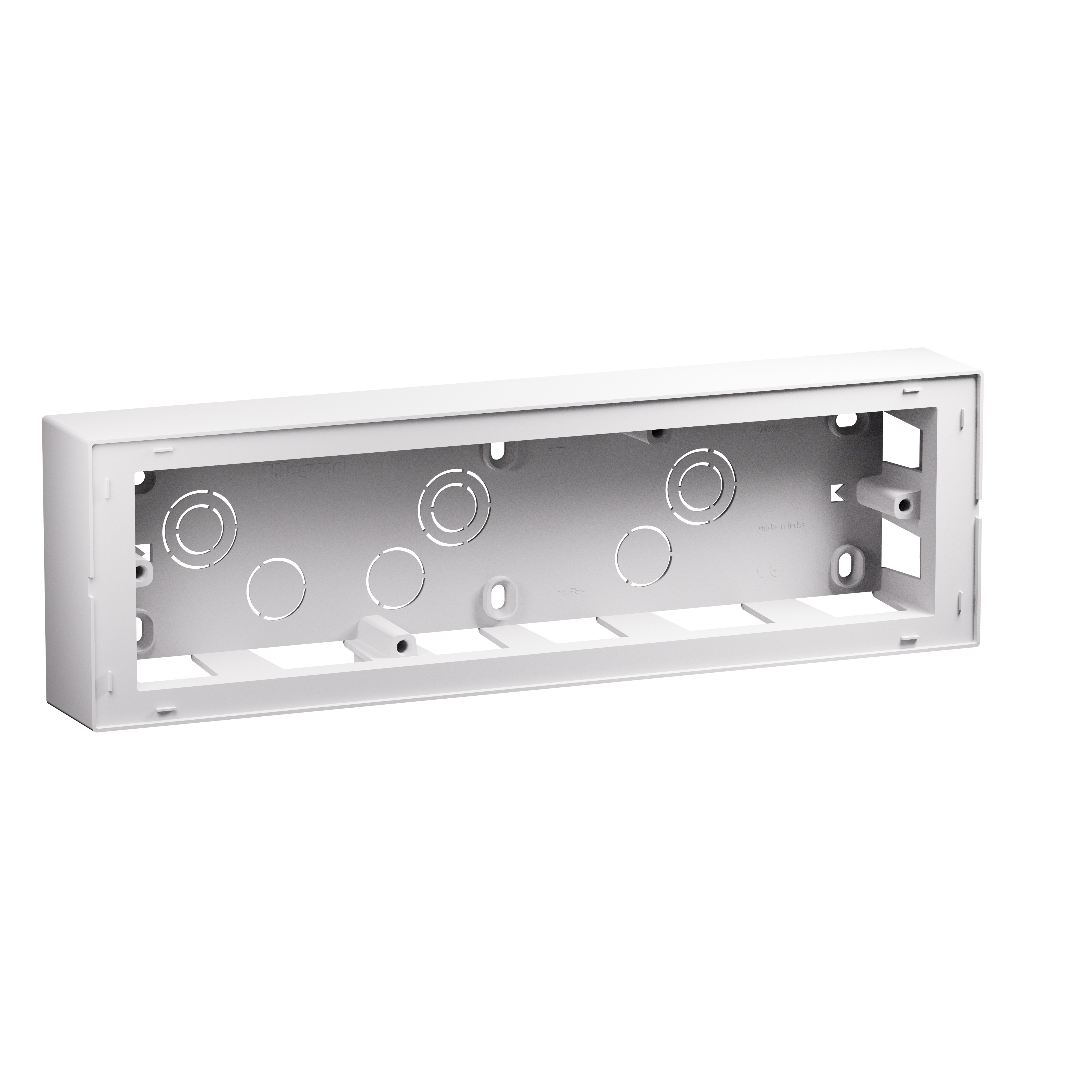

Arteor Advance - Surface-mounting box 9 modules - Surface mounted rectangular thermoplastic box - 9-module horizontal - White glossy

Arteor Advance Legrand

Arteor Advance - Surface-mounting box 9 modules - Surface mounted rectangular thermoplastic box - 9-module horizontal - White glossy

REF. A1610WH EAN. 3414972697125
Surface box 9 modules is a robust white thermoplastic enclosure for modular domestic switching devices. It offers 9 horizontal modules with IP20 protection and shock resistance. Rear cable entry with break membranes.
Download product sheet
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Surface box 9 modules is a robust white thermoplastic enclosure for modular domestic switching devices. It offers 9 horizontal modules with IP20 protection and shock resistance. Rear cable entry with break membranes.

Product characteristics
  • Nine-module surface box providing capacity for 9 modular domestic switching devices in a single enclosure
  • Surface-mounted rectangular box in thermoplastic, halogen free and shock resistant for robust wall installations
  • Horizontal mounting orientation with rear cable inlet and rigid break-out cable entry membranes for clean wiring access
  • Glossy white finish (similar to RAL 9003) for visual alignment with standard white wiring accessories
  • IP20 degree of protection with 300mm width and 43mm depth, suitable for devices up to 67.5mm x 45mm

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted box
Suitable for mounting over existing flush-mounted box No
Suitable for modular domestic switching devices Yes
Number of modules (module system) 9
Number of units 9
Mounting direction Horizontal
Shape Rectangular
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent No
With cover frame No
Cross-trunking mounting No
With duct entry No
With cable entry Yes
With screw gland entry No
With installation tube entry No
Inlet from the rear Yes
Number of earthing terminals 0
Shock resistant Yes
Degree of protection (IP) IP20
Width 300 mm
Height 90 mm
Depth 43 mm
Suitable for switching devices with max. width 67.5 mm
Suitable for switching devices with max. height 45 mm
Compliant with BS 4662 No
Entry membrane gland type Rigid to break
Cable support Not applicable
