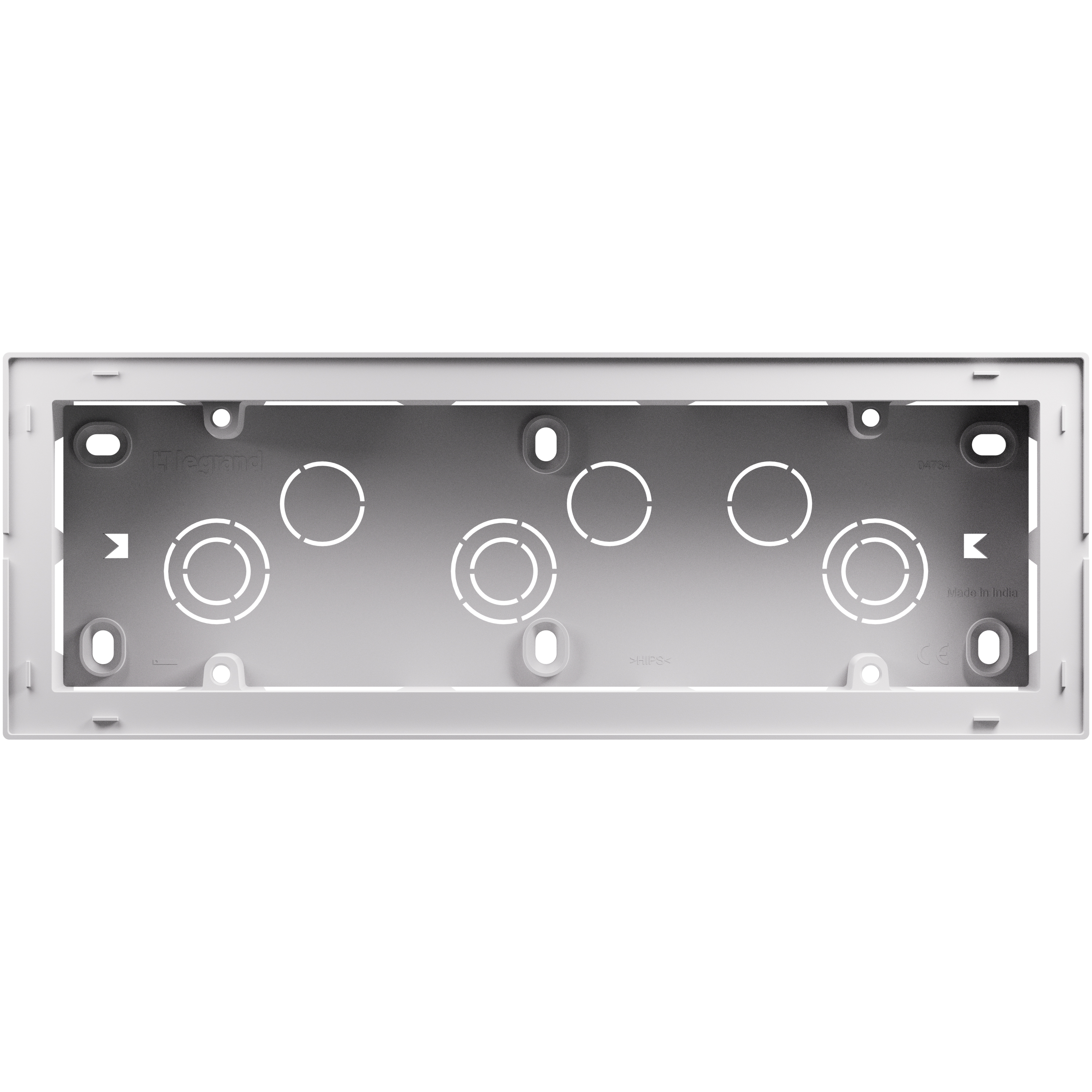

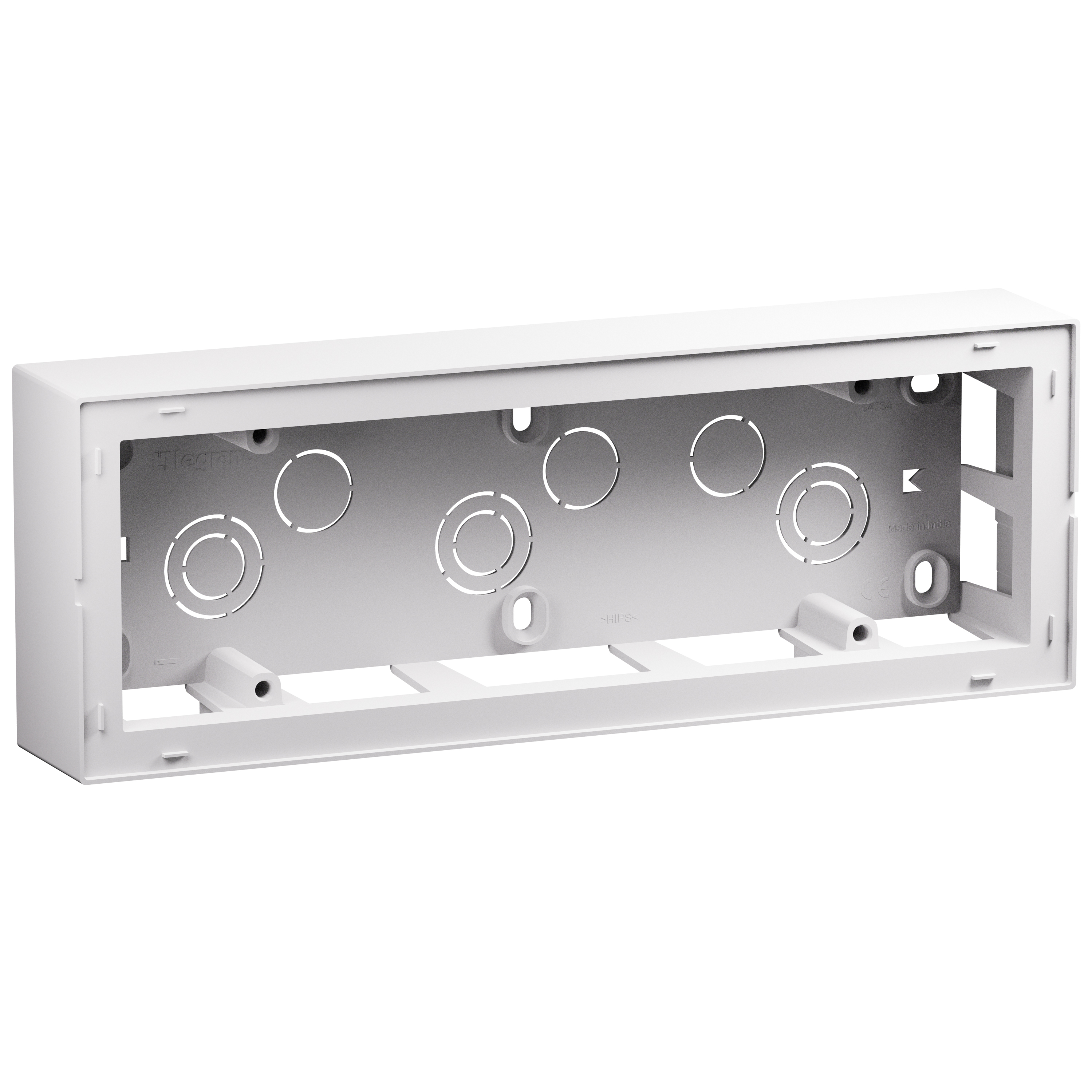

Arteor Advance - Surface box 8 modules - Thermoplastic white IP20 housing - Horizontal rectangular design with rear cable entry

Arteor Advance Legrand

Arteor Advance - Surface box 8 modules - Thermoplastic white IP20 housing - Horizontal rectangular design with rear cable entry

REF. A1609WH EAN. 3414972697095
Surface box 8 modules is a robust, halogen free thermoplastic enclosure for modular domestic switching devices. It offers IP20 protection, shock resistance, rear cable entry and glossy white RAL9003 finish in 8M horizontal format.
Download product sheet
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Surface box 8 modules is a robust, halogen free thermoplastic enclosure for modular domestic switching devices. It offers IP20 protection, shock resistance, rear cable entry and glossy white RAL9003 finish in 8M horizontal format.

Product characteristics
  • Eight modules surface-mounted box for modular domestic switching devices, providing capacity for 8 units in a single enclosure
  • Rectangular thermoplastic, halogen-free housing with glossy, untreated surface for robust, long-term wall installation
  • Horizontal mounting orientation with rear cable inlet and rigid break-out cable entry for clean, controlled wiring access
  • White color, similar to RAL 9003, ensuring visual consistency with Arteor Advance devices and standard white wiring accessories
  • IP20 shock-resistant design with 252.5mm width, 43mm depth, suitable for devices up to 67.5mm wide and 45mm high

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted box
Suitable for mounting over existing flush-mounted box No
Suitable for modular domestic switching devices Yes
Number of modules (module system) 8
Number of units 8
Mounting direction Horizontal
Shape Rectangular
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent No
With cover frame No
Cross-trunking mounting No
With duct entry No
With cable entry Yes
With screw gland entry No
With installation tube entry No
Inlet from the rear Yes
Number of earthing terminals 0
Shock resistant Yes
Degree of protection (IP) IP20
Width 252.5 mm
Height 90 mm
Depth 43 mm
Suitable for switching devices with max. width 67.5 mm
Suitable for switching devices with max. height 45 mm
Compliant with BS 4662 No
Entry membrane gland type Rigid to break
Cable support Not applicable
