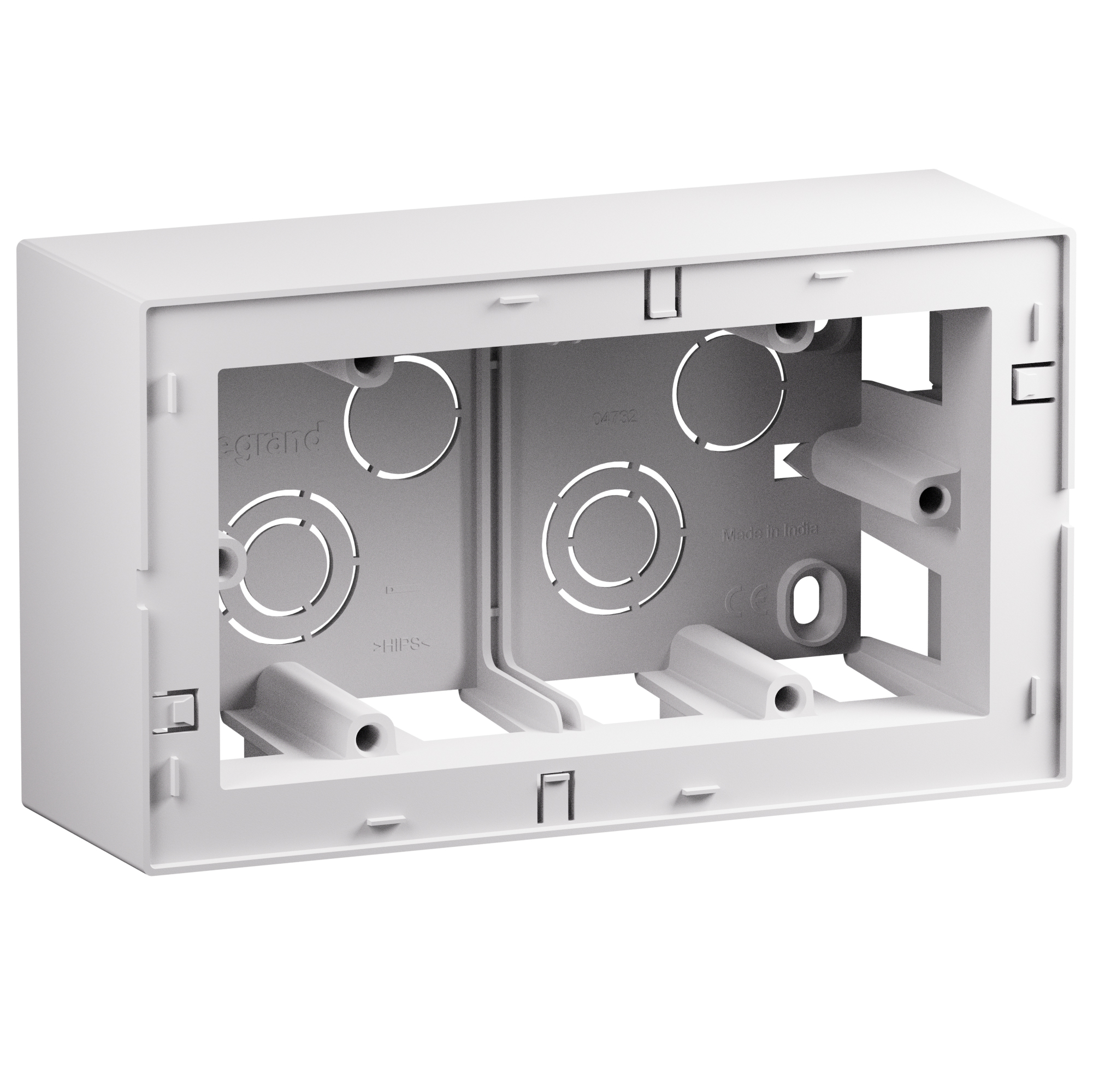

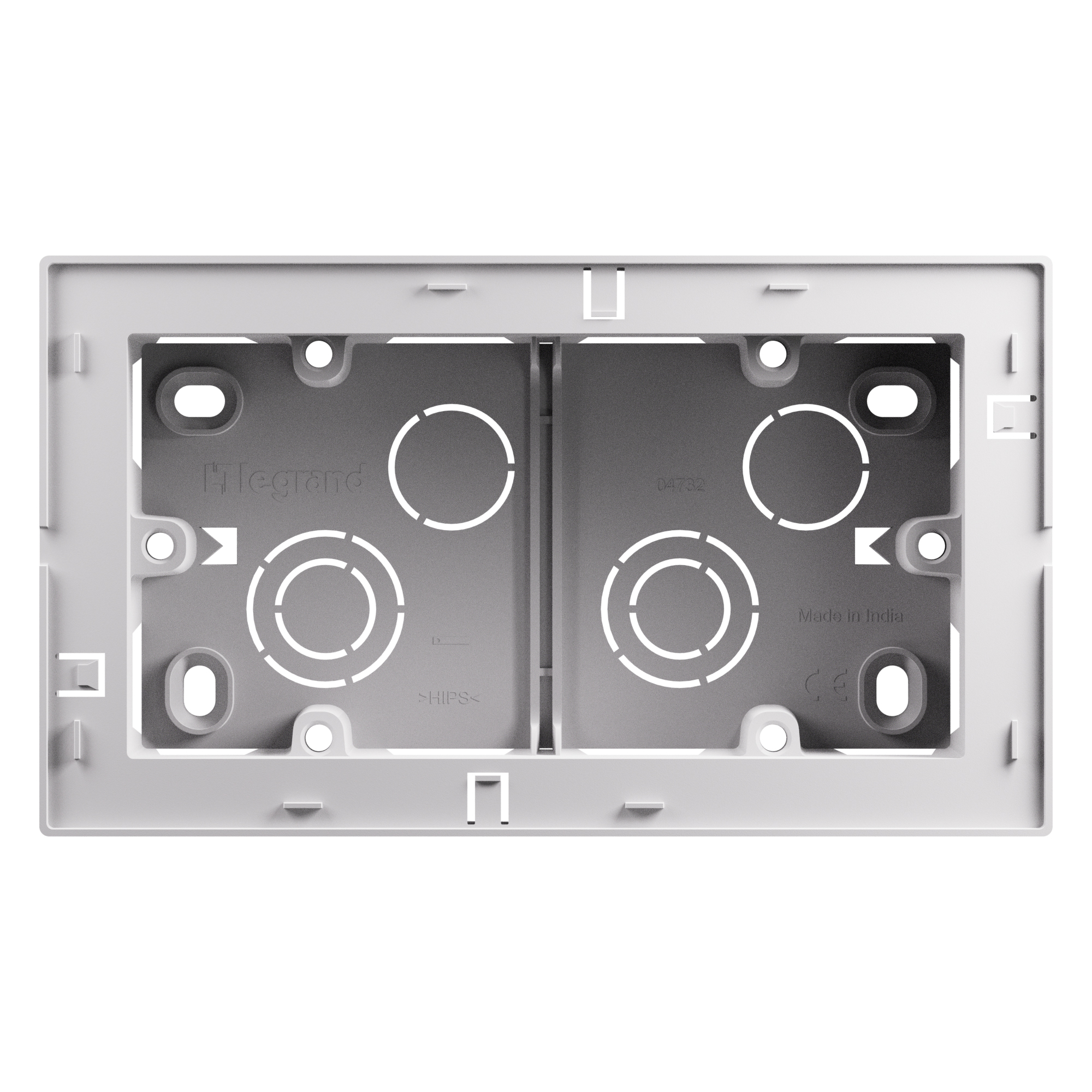

Arteor Advance - Surface box 4 modules French/Belgian British standard India horizontal/vertical - 4 modules thermoplastic surface box

Arteor Advance Legrand

Arteor Advance - Surface box 4 modules French/Belgian British standard India horizontal/vertical - 4 modules thermoplastic surface box

REF. A1602WH EAN. 3414972696913
Surface box, 4 modules, for French/Belgian and British Standard India devices, enables horizontal or vertical mounting. Robust, shock resistant, halogen free thermoplastic body with 4 rear inlets, 25mm cable capacity. Glossy white
Download product sheet
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Surface box, 4 modules, for French/Belgian and British Standard India devices, enables horizontal or vertical mounting. Robust, shock resistant, halogen free thermoplastic body with 4 rear inlets, 25mm cable capacity. Glossy white

Product characteristics
  • Four modules surface-mounted box for modular domestic switching devices, compatible with French/Belgian and British Standard India formats
  • Compact enclosure with 52mm installation depth optimizing space in shallow surface-mount applications
  • Rectangular thermoplastic housing, halogen free and shock resistant, suitable for robust wall-mounted installations
  • Glossy white finish (similar to RAL 9003) for visual alignment with standard white wiring devices
  • Four rear cable inlets (max cable diameter 25mm) with rear entry, enabling clean, concealed cable routing

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted box
Suitable for mounting over existing flush-mounted box No
Suitable for modular domestic switching devices Yes
Number of modules (module system) 4
Mounting direction Horizontal
Shape Rectangular
Desktop device No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent No
With cover frame No
Cross-trunking mounting No
With duct entry No
With cable entry Yes
With screw gland entry No
With installation tube entry No
Inlet from the rear Yes
Number of inlets 4
Shock resistant Yes
Width 157 mm
Height 90 mm
Depth 52 mm
Maximum Input cable diameter 25 mm
