Arteor Advance - Surface box 18/24 modules - Surface mounted box for modular switching devices - White thermoplastic IP20 housing

Arteor Advance Legrand

Arteor Advance - Surface box 18/24 modules - Surface mounted box for modular switching devices - White thermoplastic IP20 housing

REF. A1613WH EAN. 3414972697217

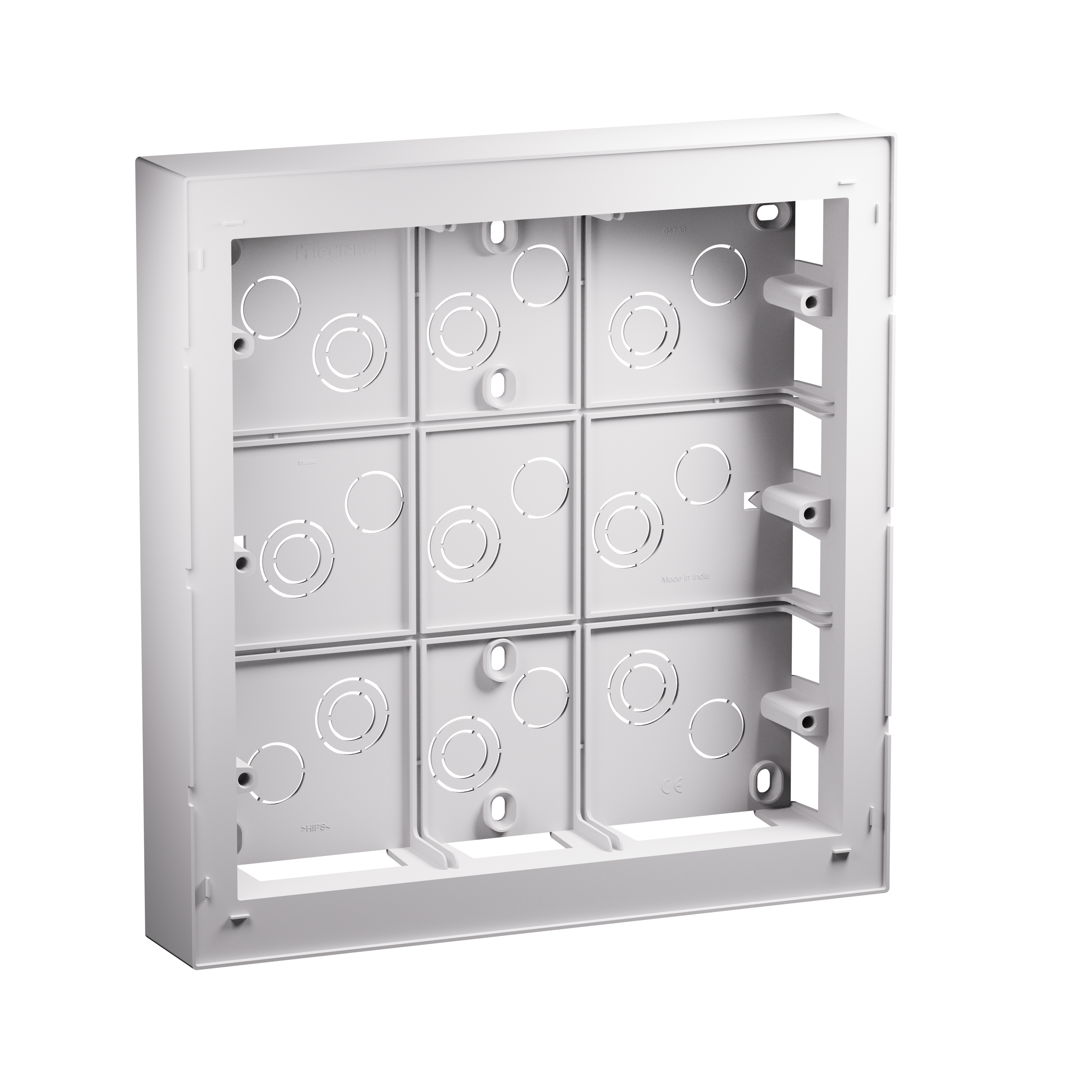

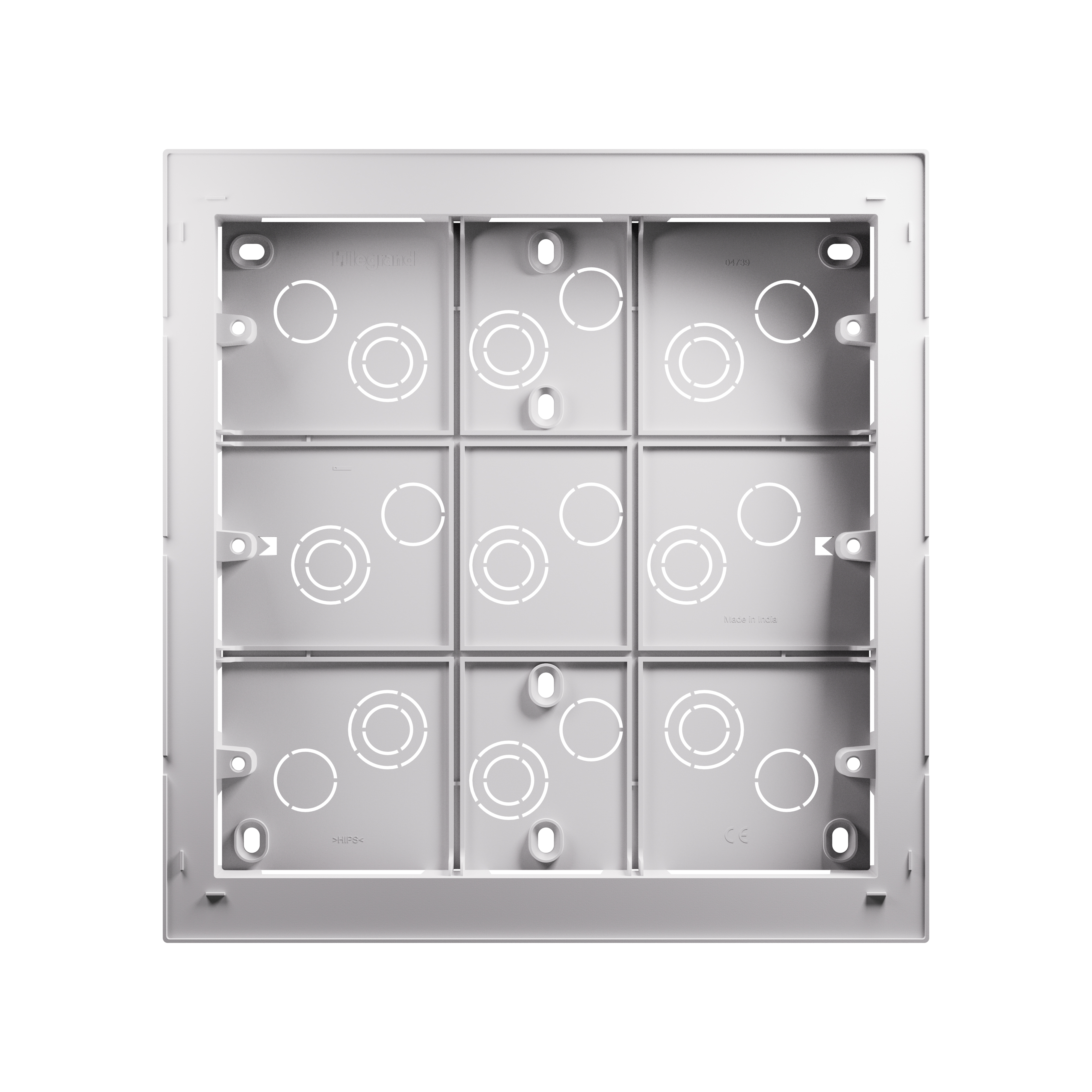

Surface box for modular domestic switching devices, offering 18/24 modules in a robust, shock resistant thermoplastic housing. Its IP20 protection, rear cable entry, and breakable membranes simplify safe surface installations. Glossy
Download product sheet
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Surface box for modular domestic switching devices, offering 18/24 modules in a robust, shock resistant thermoplastic housing. Its IP20 protection, rear cable entry, and breakable membranes simplify safe surface installations. Glossy

Product characteristics
  • Accommodates eighteen to twenty-four modular domestic switching devices for flexible circuit configuration.
  • Surface-mounted rectangular thermoplastic box with horizontal mounting direction for wall applications.
  • Provides IP20 protection with shock-resistant, halogen-free construction for enhanced safety in indoor installations.
  • Glossy white finish (similar to RAL 9003) for visual consistency with Arteor Advance wiring devices.
  • Dimensions 237.5x246x43mm (W x H x D) with rear cable entry and rigid break-out membranes for efficient wiring.

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted box
Suitable for mounting over existing flush-mounted box No
Suitable for modular domestic switching devices Yes
Number of modules (module system) 18
Number of units 18
Mounting direction Horizontal
Shape Rectangular
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent No
With cover frame No
Cross-trunking mounting No
With duct entry No
With cable entry Yes
With screw gland entry No
With installation tube entry No
Inlet from the rear Yes
Number of earthing terminals 0
Shock resistant Yes
Degree of protection (IP) IP20
Width 237.5 mm
Height 246 mm
Depth 43 mm
Suitable for switching devices with max. width 67.5 mm
Suitable for switching devices with max. height 45 mm
Compliant with BS 4662 No
Entry membrane gland type Rigid to break
Cable support Not applicable
