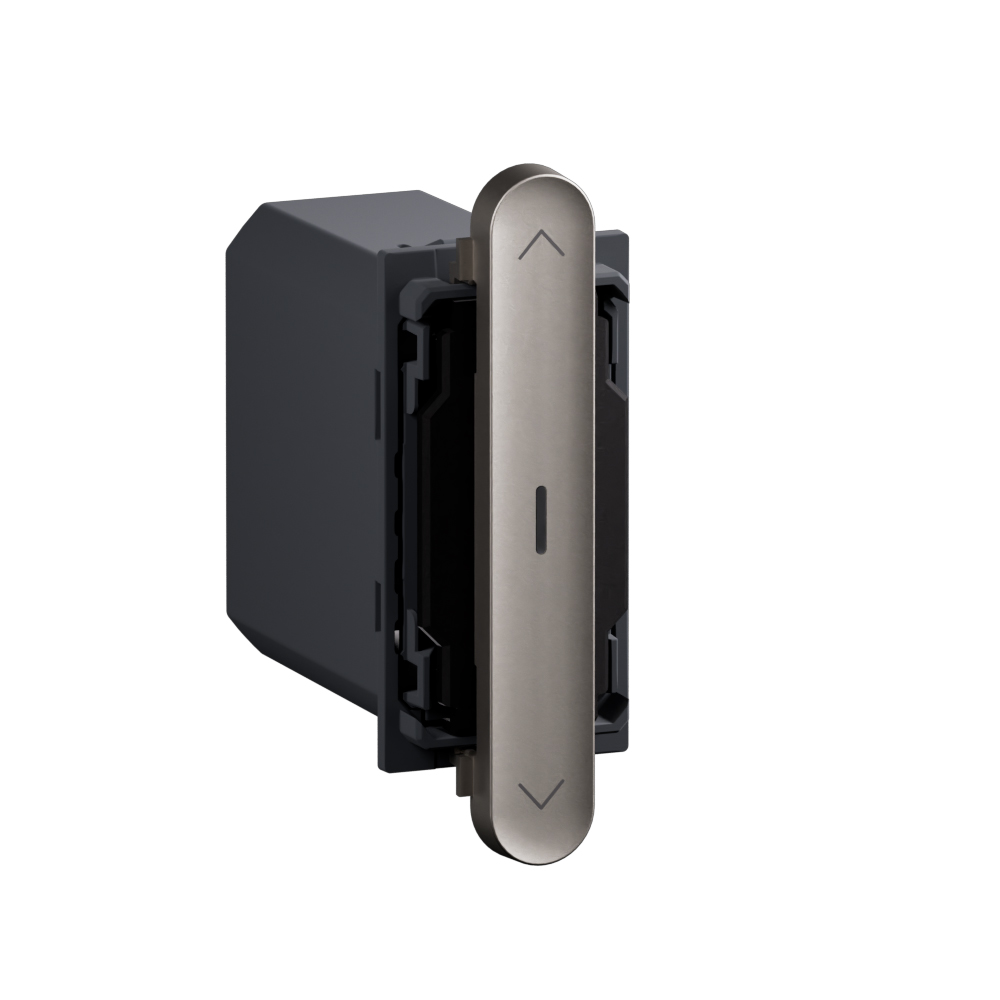

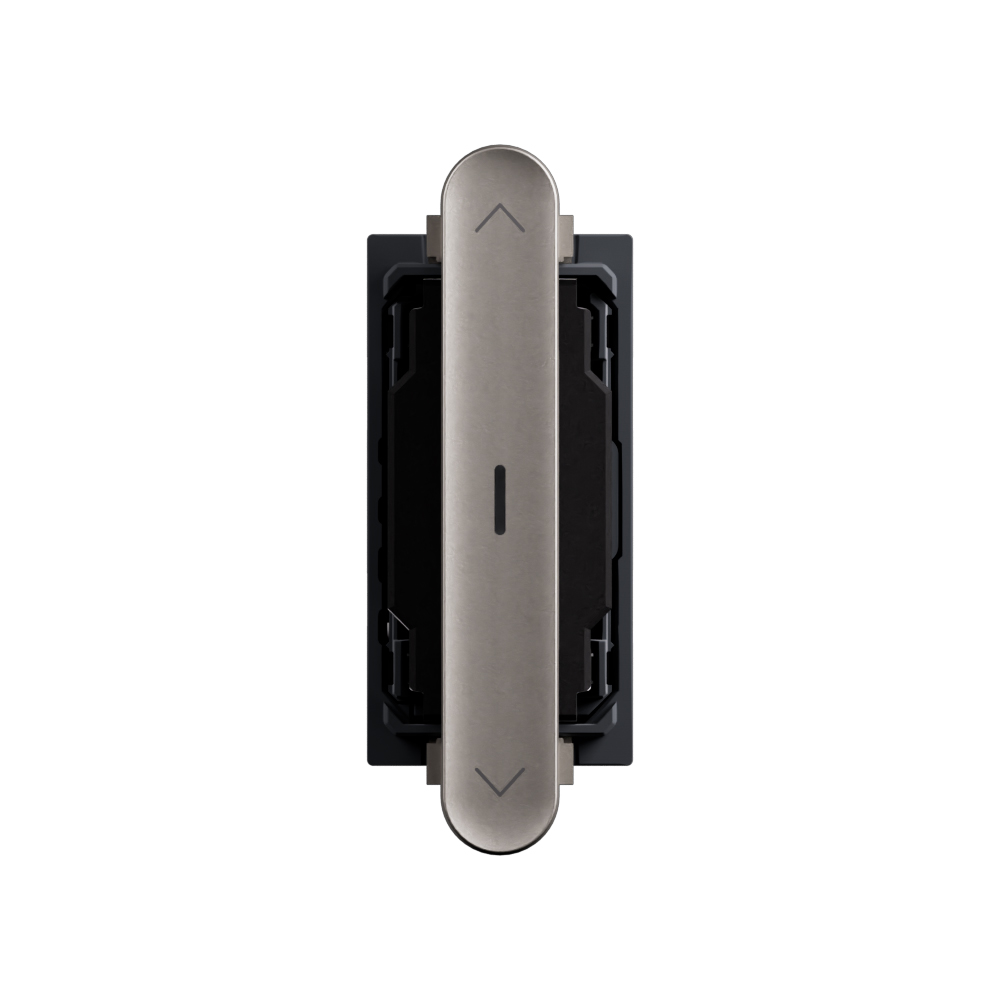

Arteor Advance - Smart curtain/roller blind 1-module switch matt titanium - Zigbee shutter control - Flush-mounted 100-240V AC

Arteor Advance Legrand

Arteor Advance - Smart curtain/roller blind 1-module switch matt titanium - Zigbee shutter control - Flush-mounted 100-240V AC

REF. AA5310MT EAN. 3414972702720
The connected roller shutter switch allows you to control your roller shutters remotely from your smartphone via the Home + Control app or by using your voice. It offers Zigbee connectivity, programmable up/down/stop control.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The connected roller shutter switch allows you to control your roller shutters remotely from your smartphone via the Home + Control app or by using your voice. It offers Zigbee connectivity, programmable up/down/stop control.

Product characteristics
  • Up/down/stop local control for curtain, roller blind, or venetian blind management with 1 shutter output (max 500W, 2A resistive)
  • Compatible with wired roller shutters with electronic or mechanical end stop; not compatible with radio-controlled roller shutters
  • Integrated LED indicator with configurable locator function, activated and managed via the Home + Control app
  • Zigbee-connected flush-mounted 1-module actuator (100-240V AC, 50-60Hz, mandatory neutral) with bidirectional radio and smartphone app programming
  • IP21, IK04 matt titanium device with screwed terminals (1.5mm² to 2.5mm²), 35mm built-in depth, and local hand operation for robust in-wall installation
Recommendation / Restriction
  • To connect your roller shutter switch, you first need to purchase and install a Arteor with Netatmo connected starter pack.

The product's benefits

Installation
  • The connected roller shutter switch is easily installed in place of an existing flush-mounting switchand needs a standard-depth flush-mounting box (40mm). Claw or screw fixing possible
Usage
  • If you wish to manage your roller shutters centrally, you can pair them with one or more Arteor with Netatmo connected wireless switches

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Mounting method Flush-mounted
Width in number of modular spacings 1
With bus connection No
Bus module detachable No
Local operation/hand operation Yes
With LED indication Yes
Number of inputs 4
Switching current (resistive) 2 A
Max. switching power 500 W
Max. number of venetian-blind outputs 1
With switch function Yes
Type of current AC
Degree of protection (IP) IP21
Min. depth of built-in installation box 40 mm
Width 22.5 mm
Height 45 mm
Depth 45 mm
Built-in depth 35 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-45 °C
Nominal voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Standby consumption 2.1 mA
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Colour Titanium
Halogen free Yes
Antimicrobial treatment No
Connection type Screwed terminal
Number of terminals 4
Terminals capacity (Min-Max) 1.5-2.5 mm²
Contains Batteries No
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Shutter management
Application name Home + Control
Programming way Smartphone apps
