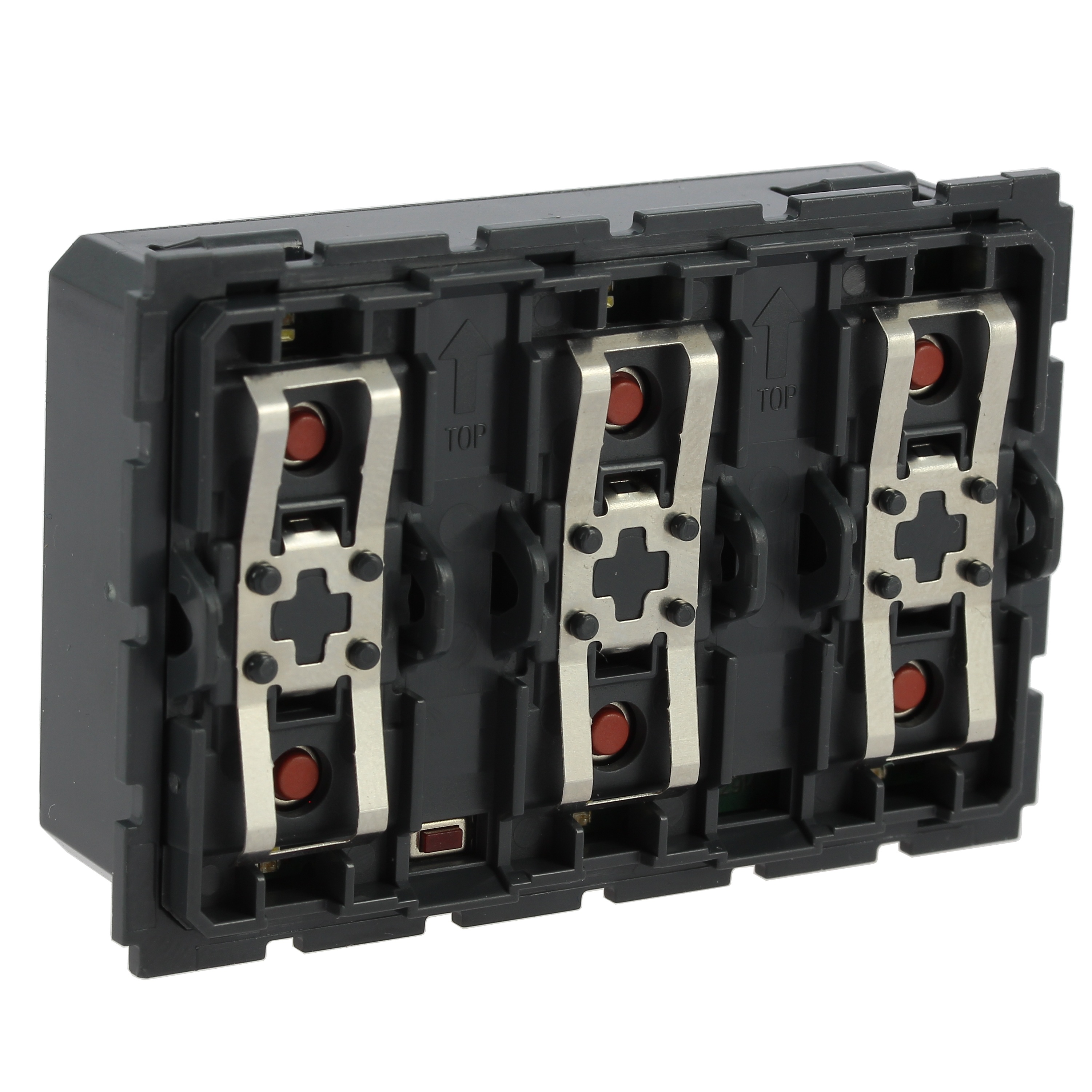

Arteor Advance Slender - Arteor slender basic control BUS 3 modules - 6 programmable touch buttons - Lighting and shutter control

Arteor Advance Legrand

Arteor Advance Slender - Arteor slender basic control BUS 3 modules - 6 programmable touch buttons - Lighting and shutter control

REF. AA5223 EAN. 3414973214123
6 lights ON/OFF functions and dimmer load adjustment, 3 Shutter up/down with advanced functions, and 6 configurable scenarios for flexible lighting and shutter management. Programmable, addressable bus control.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

6 lights ON/OFF functions and dimmer load adjustment, 3 Shutter up/down with advanced functions, and 6 configurable scenarios for flexible lighting and shutter management. Programmable, addressable bus control.

Product characteristics
  • Multifunction touch sensor enabling management of up to 6 independent lighting or scenario functions within the same 3-module (3M) footprint
  • Compact 3-module (66x45x24mm) Arteor Advance Slender form factor for flush mounting in 55mm minimum depth installation boxes
  • Addressable, programmable bus control device with interoperable connection protocol for flexible configuration of lighting management and advanced functions
  • Six capacitive actuation points with LED indication for clear status feedback and precise on/off, dimming, shutter, and scenario control
  • Thermoplastic IP20 indoor module with terminal capacity 0.34mm² to 2.5mm² for flexible or rigid conductors, operating from 5° C to 35° C and optimized for indoor lighting control applications
Recommendation / Restriction
  • Indoor usage only

The product's benefits

Installation
  • 3-module flush-mount installation. Maximum quality in terms of materials and installation
Usage
  • Function flexibility: the same command could be configured for different functions
Avantages
  • It is easily configured by app
  • You can configure up to 6 functions on the same command, example: 6 lights, 6 scenes,...

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system KNX Secure No
Bus system KNX Secure-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Radio frequency bidirectional No
Mounting method Module frame
With anti-theft/dismantling protection No
With bus connection Yes
Number of actuation points 6
Number of buttons 6
With LED indication Yes
With label area No
With display No
Material Plastic
Material quality Thermoplastic
Surface protection Untreated
Colour Other
Transparent No
With room temperature controller No
With IR sensor No
Degree of protection (IP) IP20
Min. depth of built-in installation box 55 mm
Width 66 mm
Height 45 mm
Depth 24 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) 5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 0-0 Hz
Terminal marking indication Yes
Halogen free No
Antimicrobial treatment No
Terminals capacity (Min-Max) 0.34-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Addressable Yes
Contains Batteries No
Connected object No
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box No
Product use function Lighting management
