Arteor Advance - Shaver socket outlet 230V/120-230V without earth connector rose IP20 flush-mounted thermoplastic

Arteor Advance Legrand

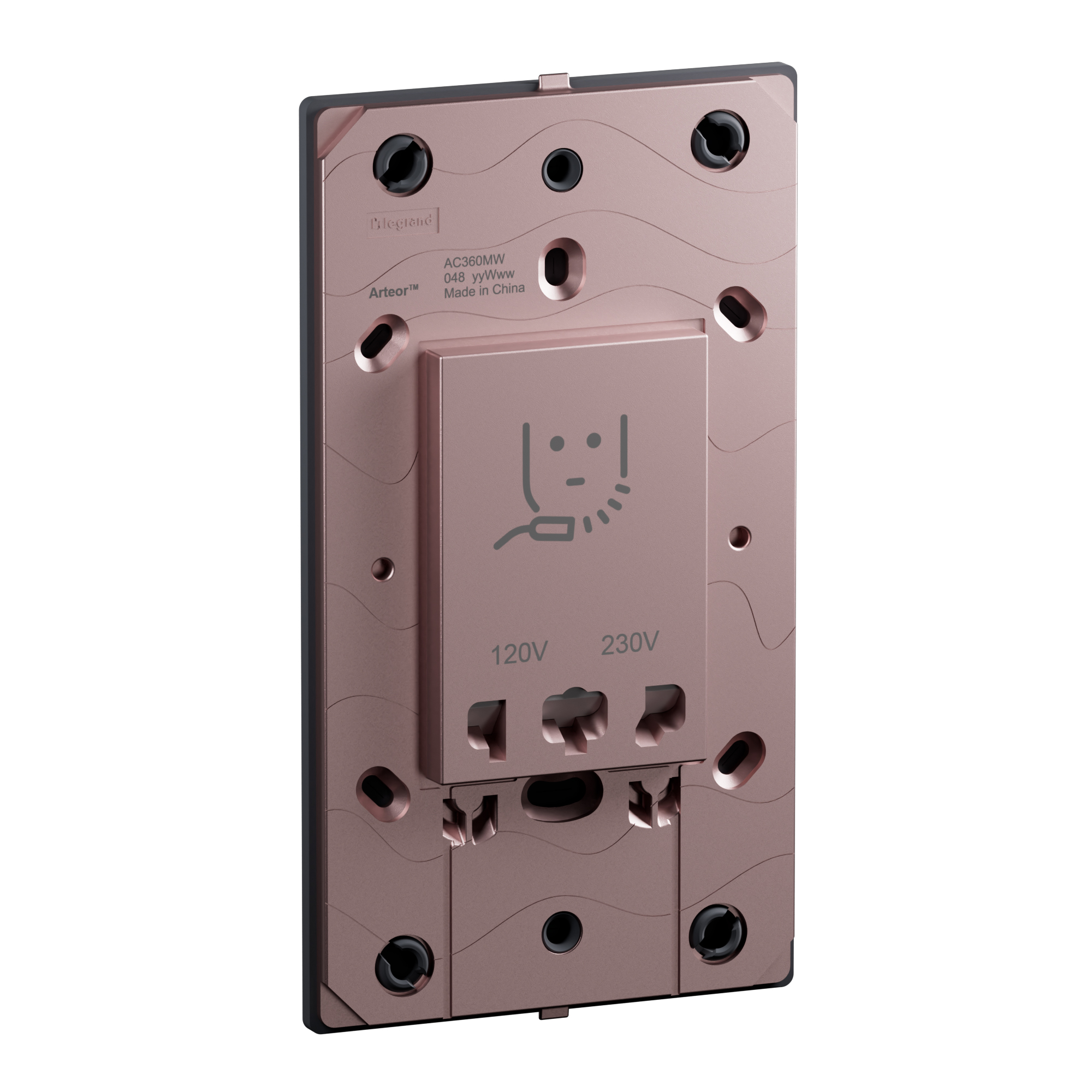

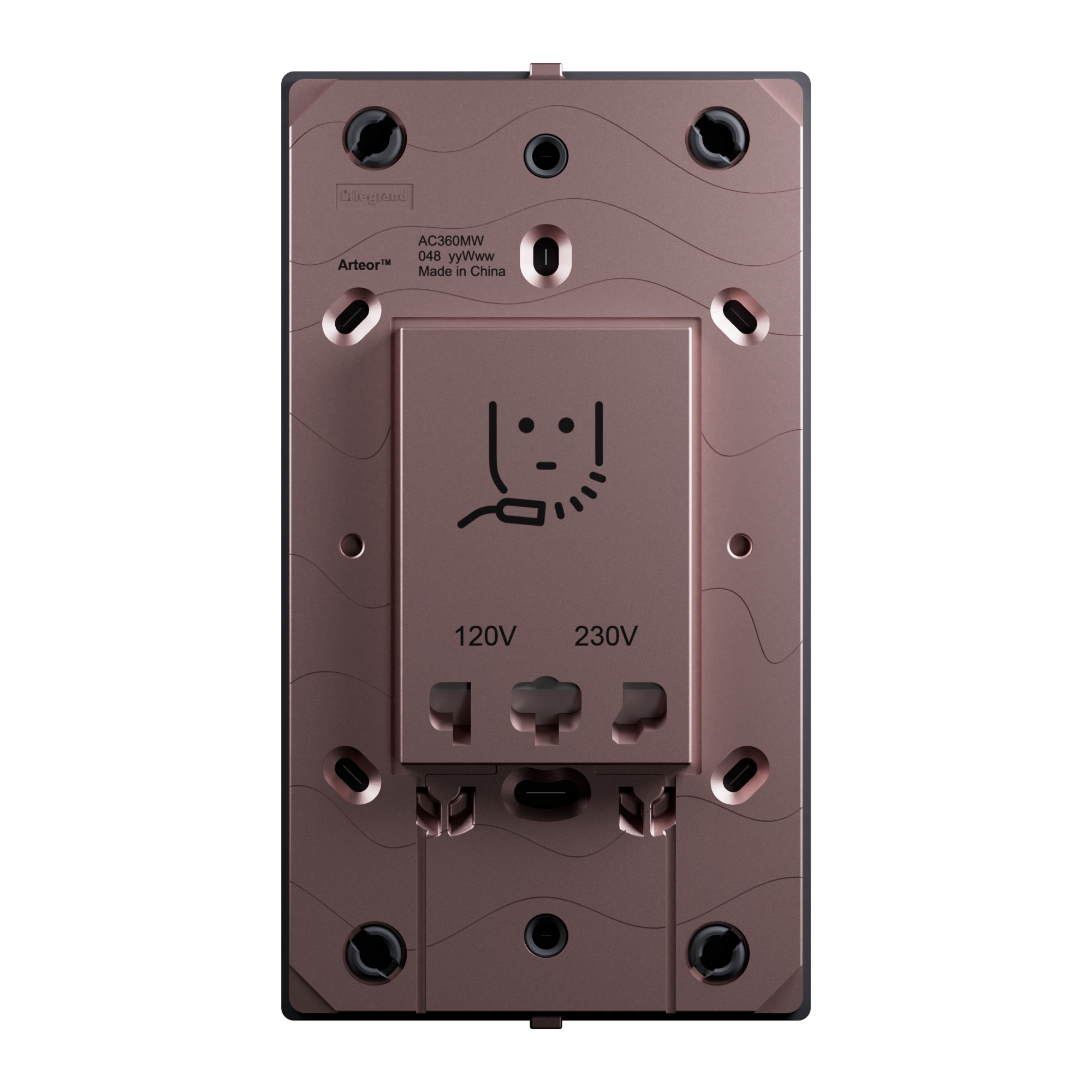

Arteor Advance - Shaver socket outlet 230V/120-230V without earth connector rose IP20 flush-mounted thermoplastic

REF. AC360RS EAN. 3414972926850
Provides power for shavers with dual 230V/120-230V supply, ensuring compatibility with common two-pin plugs. Marked terminals and screw-type connections simplify wiring. Safety shutters and IP20 protection support bathroom use.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Provides power for shavers with dual 230V/120-230V supply, ensuring compatibility with common two-pin plugs. Marked terminals and screw-type connections simplify wiring. Safety shutters and IP20 protection support bathroom use.

Product characteristics
  • Shaver socket outlet for 230V/120-230V AC supply, optimized for powering electric shavers in bathroom installations.
  • Rose (pink) finish providing a subtle blush effect, matching Arteor Advance aesthetic requirements.
  • Marked screw terminals with 1.5mm² to 2.5mm² capacity for easy circuit identification and secure wiring of flexible or rigid cables.
  • Shaver socket accepts common two-pin plugs and includes safety shutters to maximize user protection.
  • Flush-mounted, 3-module thermoplastic unit (82x149.6x52.5mm) with IP20, IK04, and -5 to 35° C operating range, recommended for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • IP24 product suited to bathroom humid environment
  • Pink finish evoking subtle blush effect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Mounting method Flush-mounted
With hinged lid No
Voltage reversible No
Nominal voltage low value 207 V
Nominal voltage high value 253 V
Rated output 20 VA
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Other
Transparent No
Device width 82 mm
Device height 149.6 mm
Device depth 52.5 mm
With built-in installation box No
Min. depth of built-in installation box 50 mm
Built-in depth 40.9 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication Yes
Antimicrobial treatment No
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface Yes
